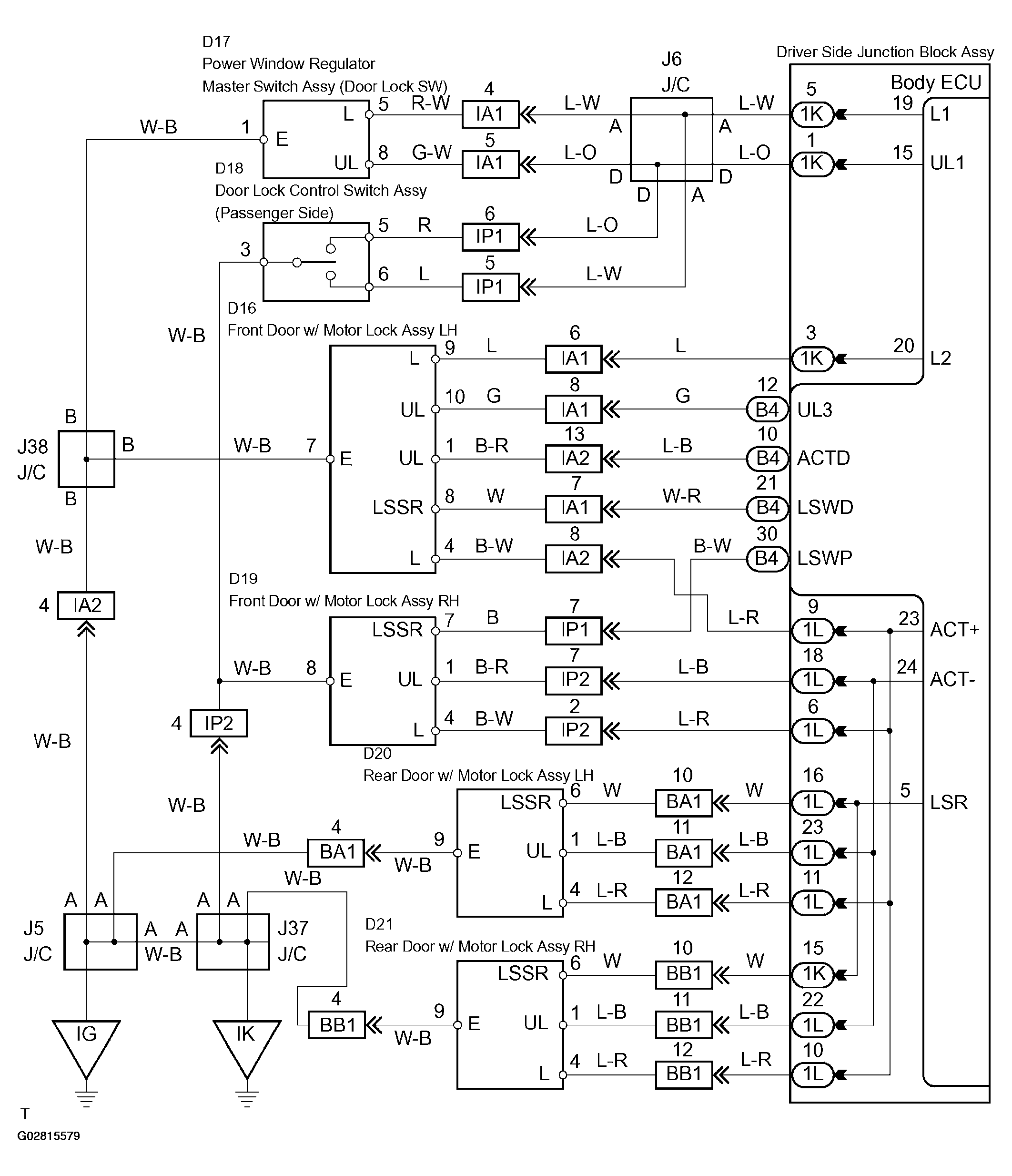

All Doors Lock And Unlock Functions Do Not Operate Via Master Switch, Driver Side Door Key Cylinder: Wiring Diagram

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
