Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2.

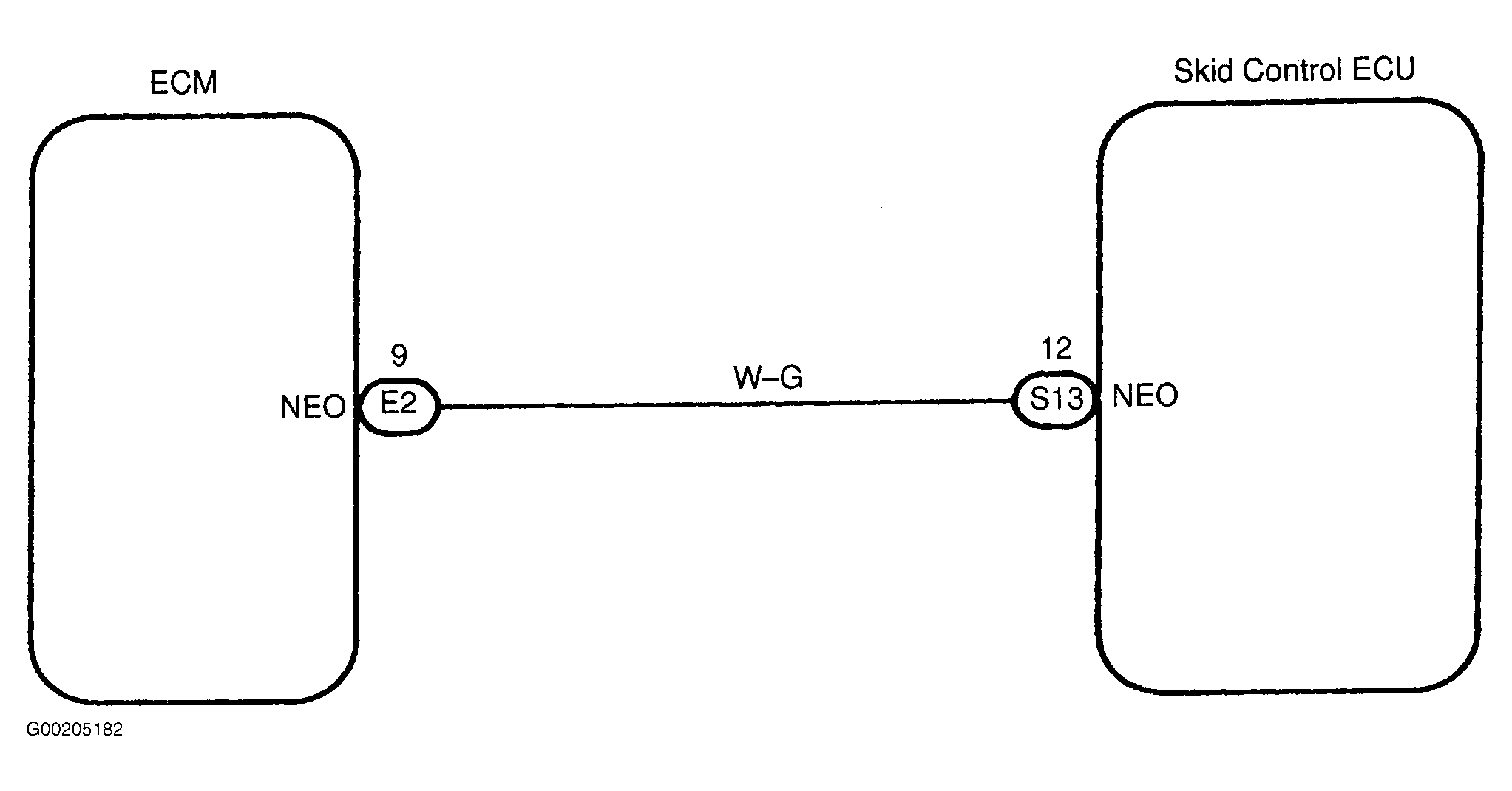

Fig 1: NEO Signal Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

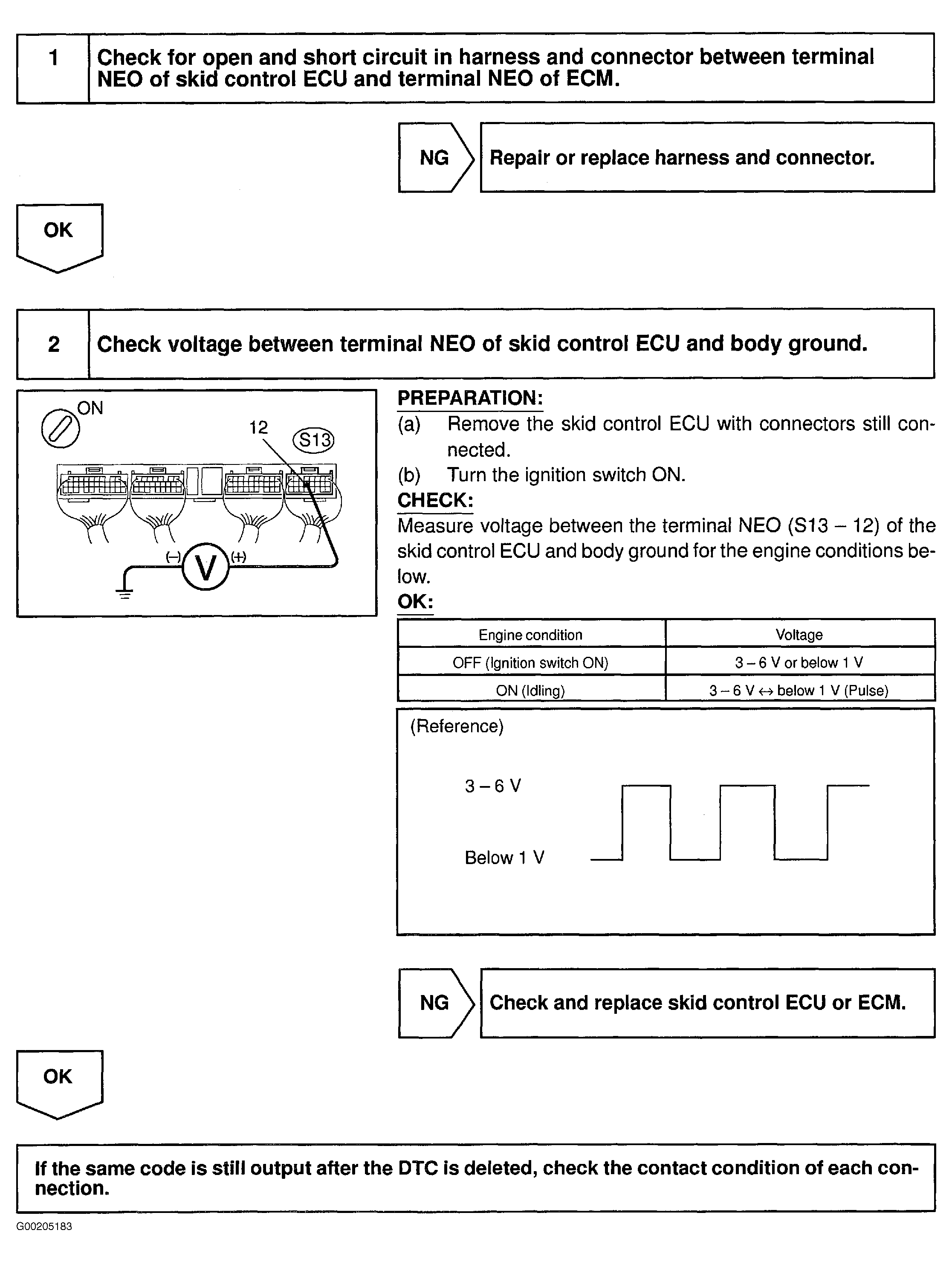

Fig 2: Testing Procedure NEO Signal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
