Specified Torque For Standard Bolts

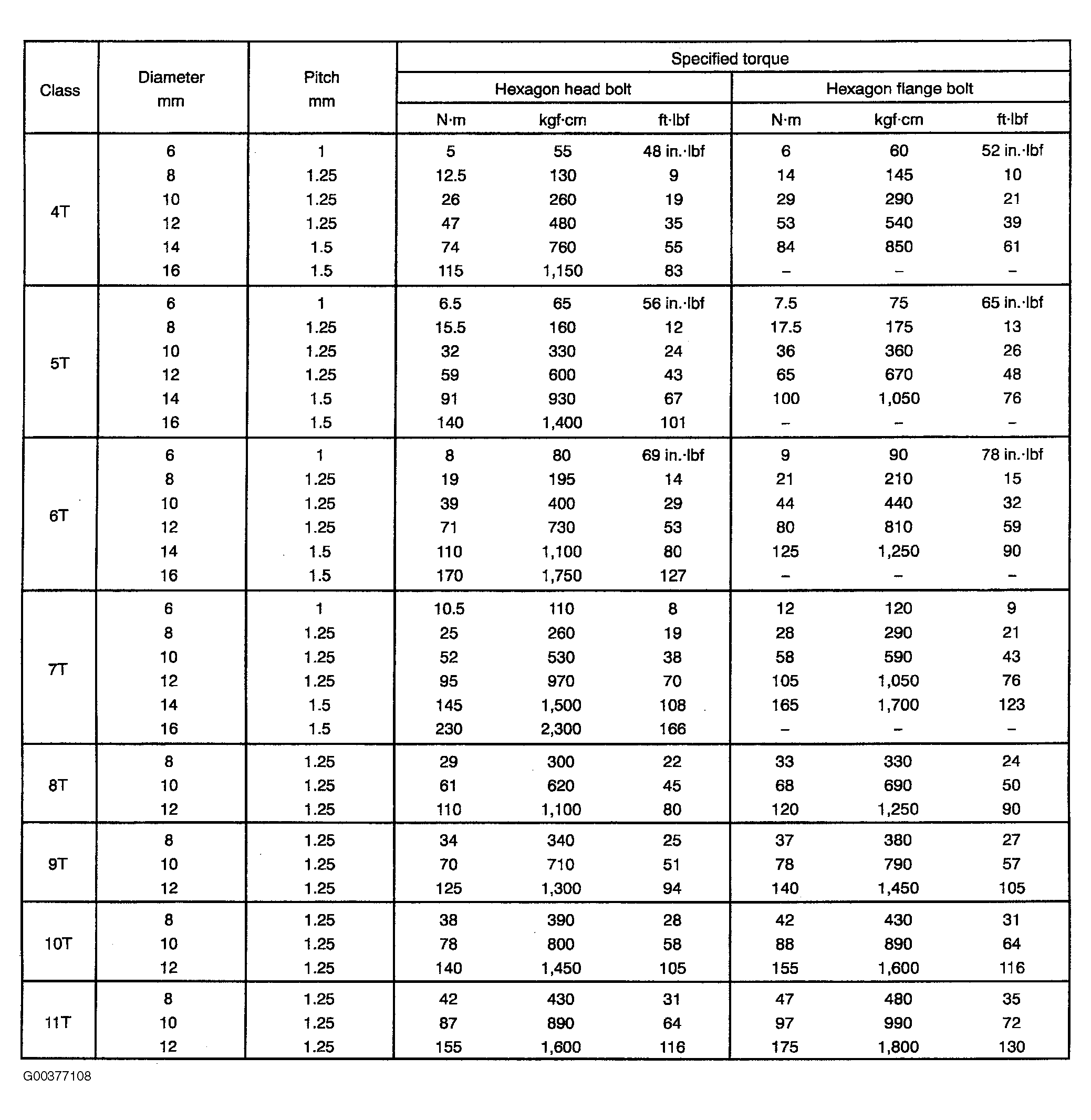

Fig 1: Standard Bolt Specified Torque

G00377108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
