Diagnosis & Repair

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2.

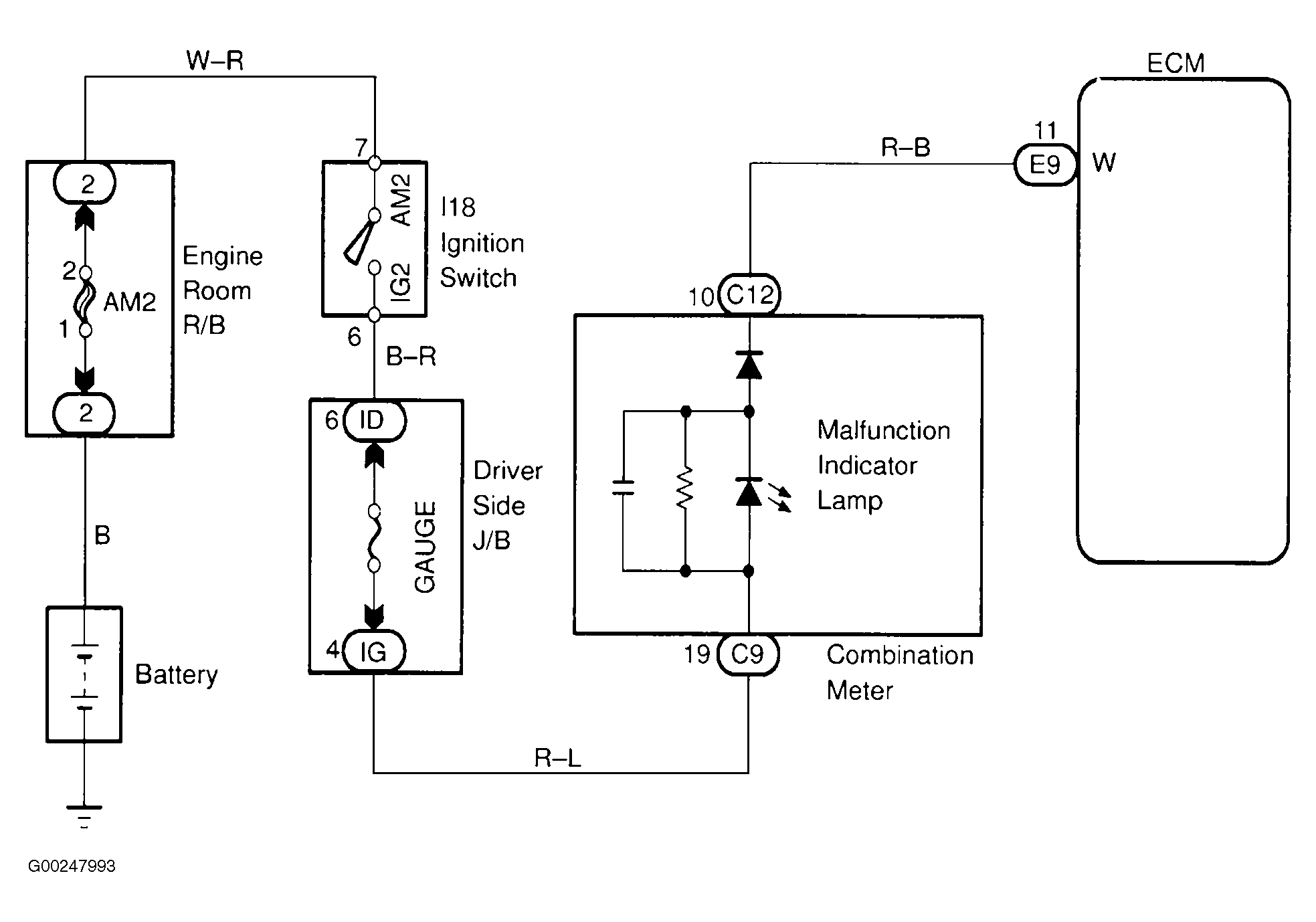

Fig 1: MIL Circuit Wiring Diagram
G00247993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

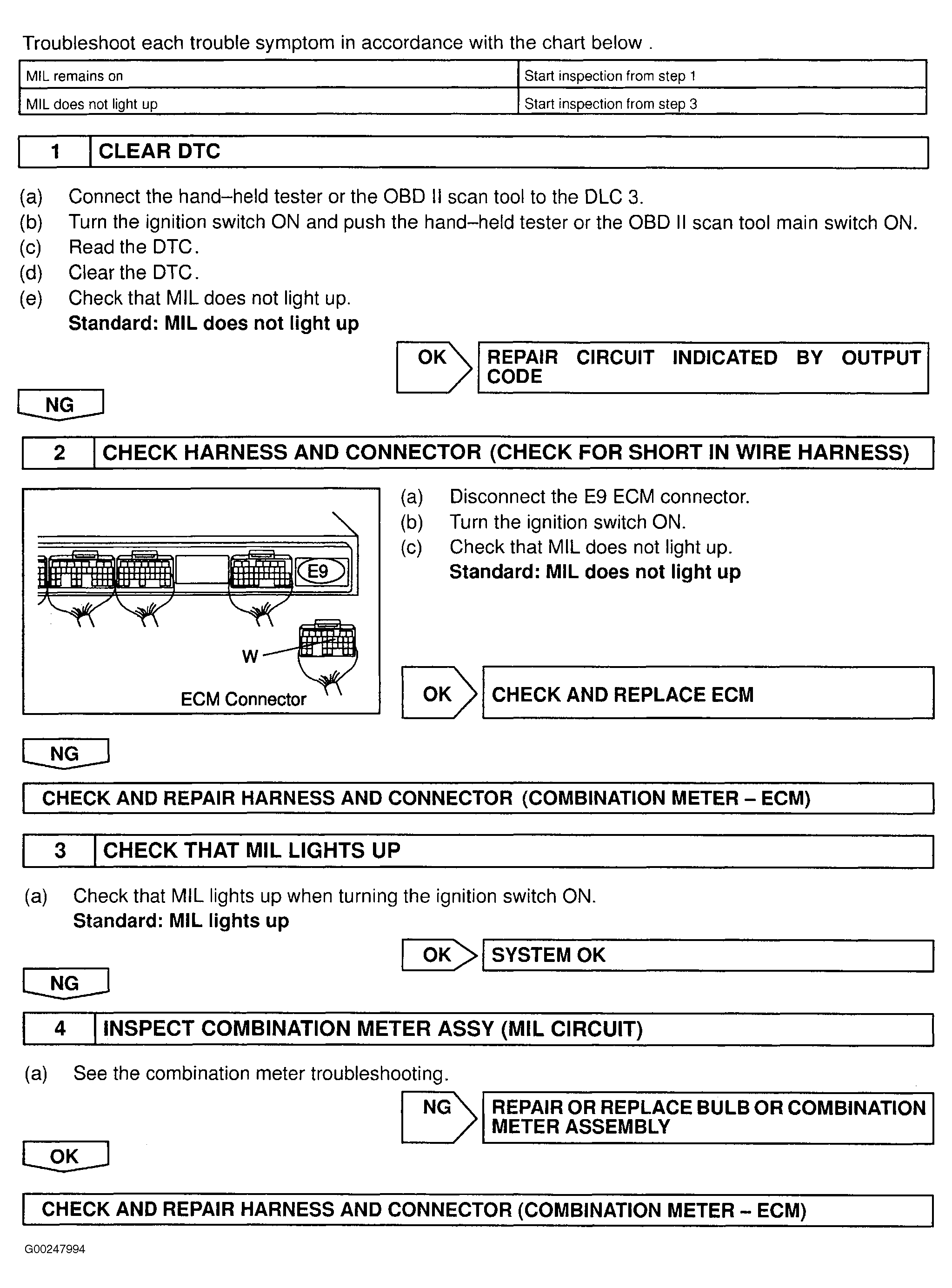

Fig 2: Diagnosis & Repair Of MIL Circuit
G00247994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
