Memory switch circuit (W/memory): Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

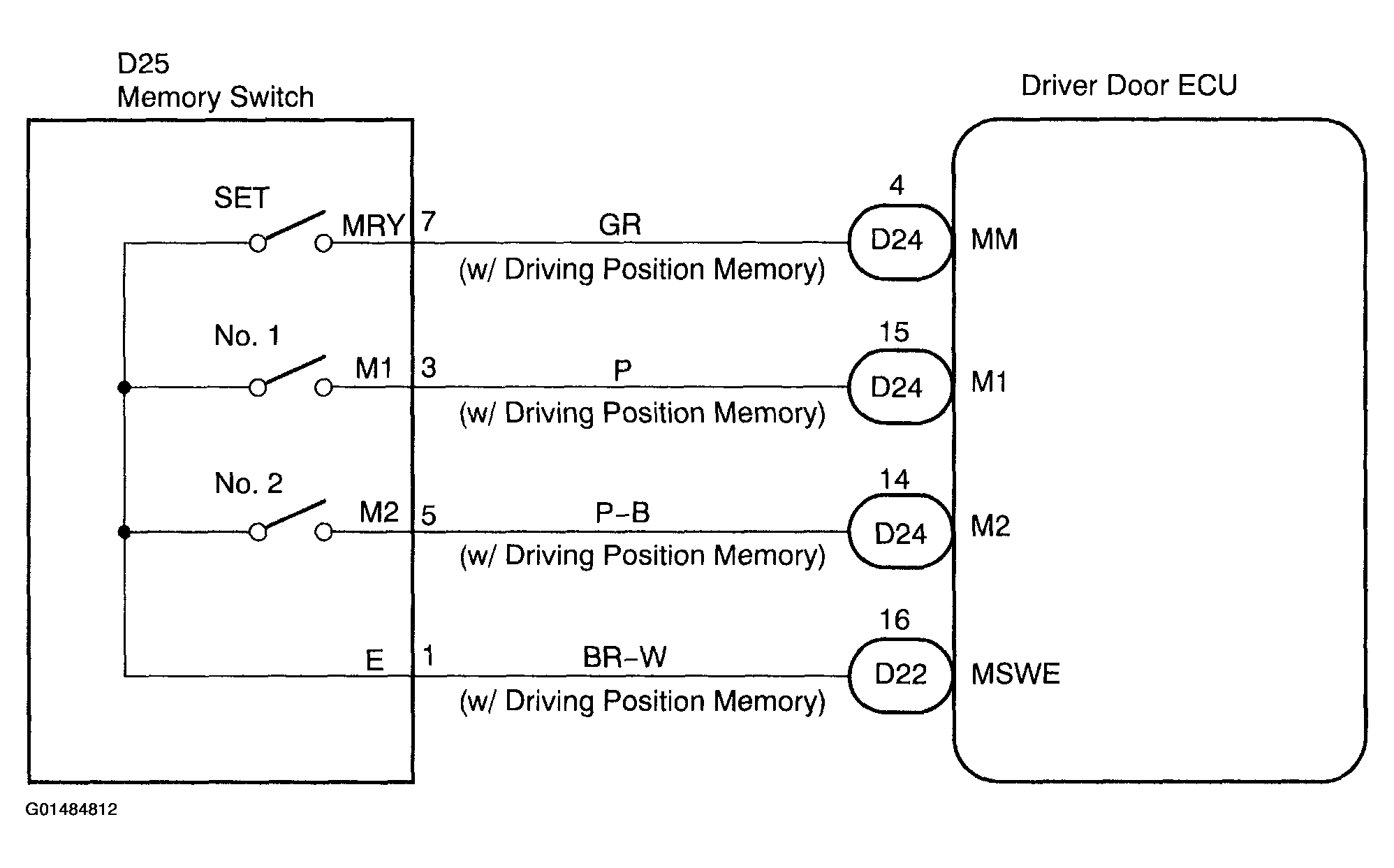

Fig 1: Memory Switch Circuit (W/Memory) Wiring Diagram
G01484812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
