Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Before this procedure, check that the wireless door lock system operation is normal.

INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY

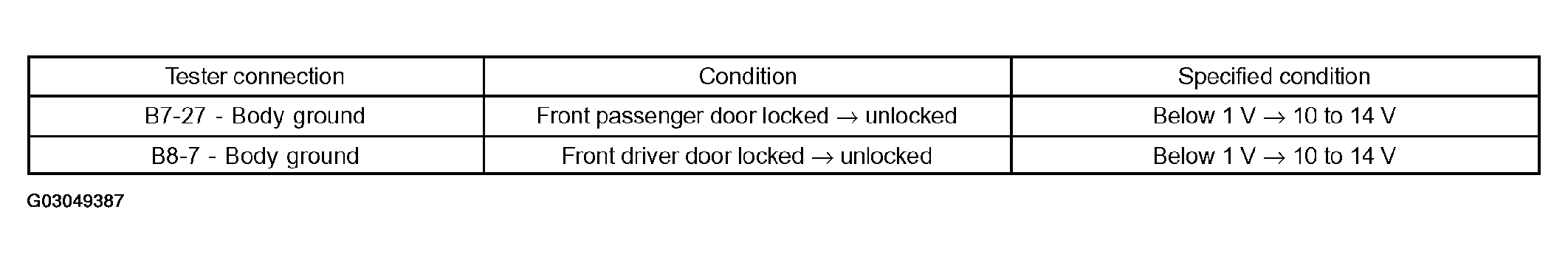

1. Measure the voltage according to the value(s) in Fig 1 .
  Standard:

  Fig 1: Measuring Voltage Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

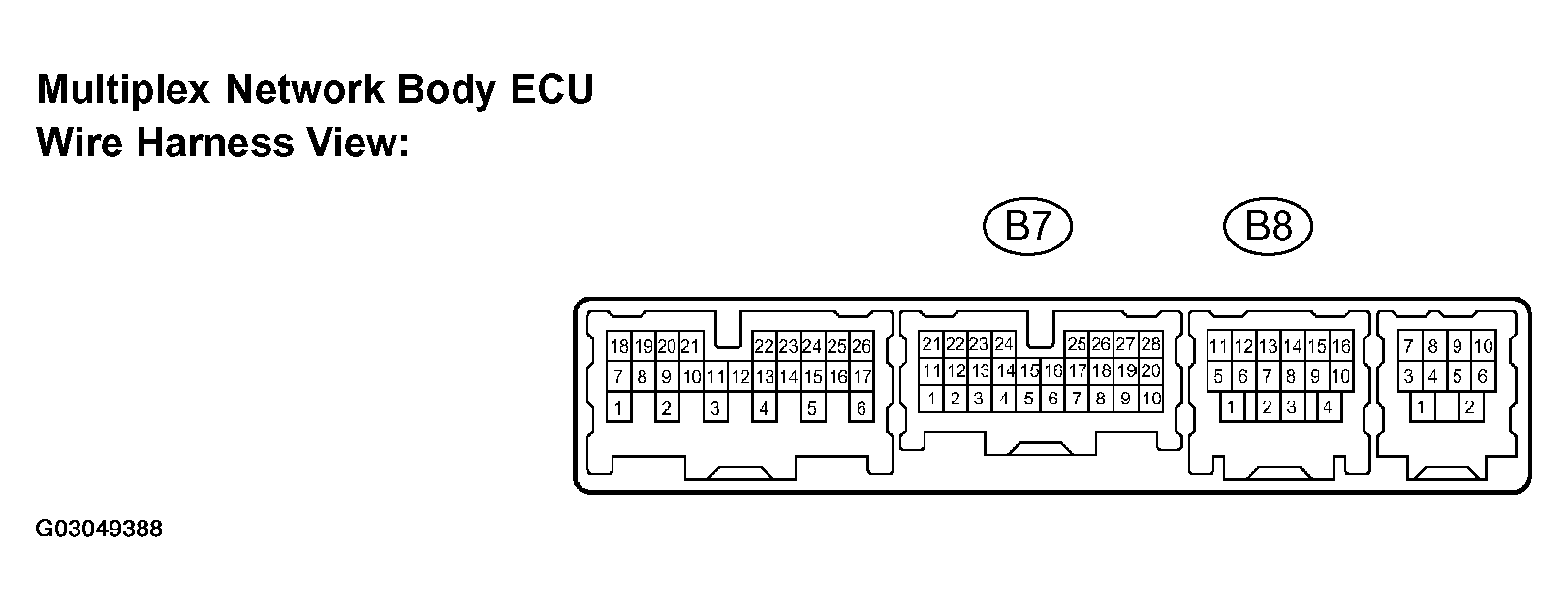

  Fig 2: Inspecting B7 & B8 Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (SEE HOW TO PROCEED WITH TROUBLESHOOTING )
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
