Front Differential

Raise and support vehicle. Remove drain plug and drain fluid. See Fig 1. Install drain plug and tighten to specification. Remove filler plug and fill with approved fluid to bottom of filler plug opening. Tighten filler plug to specification. See TORQUE SPECIFICATIONS .

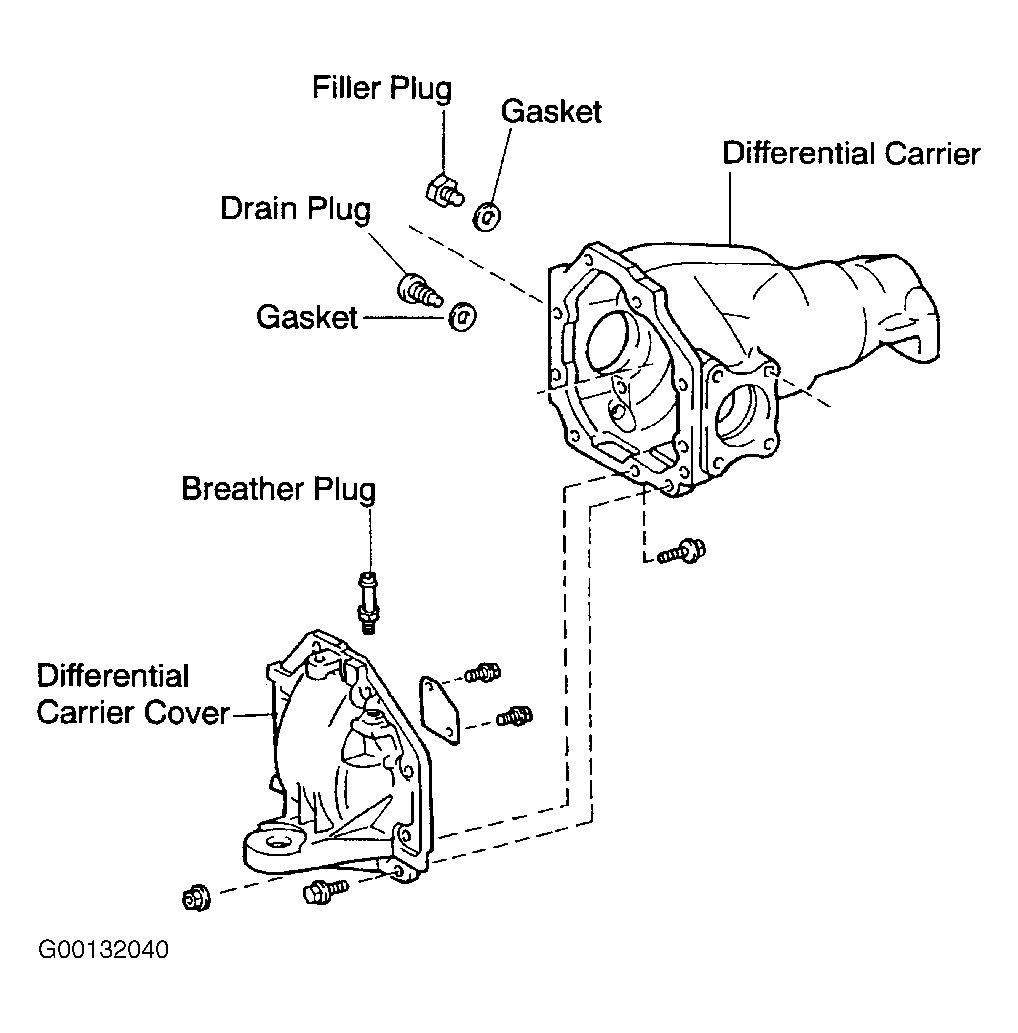

Fig 1: Locating Front Differential Drain & Filler Plugs
G00132040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
