Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

ILLUMINATION
1. Check illumination operation.
  1. Check that the illuminations light up when light control switch, light control rheostat or automatic light control sensor operate.
  Standard: Combination meter, radio and player, etc illuminations light up.
1. NG: Go to COMBINATION METER
2. OK: Go to next step.
SERVICE CHECK MODE (NETWORK GATEWAY ECU)
1. Perform service check.
  1. Start the diagnosis system and read check result for gateway ECU.
  Result:

  Fig 1: Service Check Mode (Network Gateway ECU) Result Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. A: Go to next step.
2. B: Go to step 4 .
CHECK HARNESS AND CONNECTOR (BETWEEN RADIO AND PLAYER AND NETWORK GATEWAY ECU)
1. Disconnect the "R1" connector from radio and player.
2. Disconnect the "G3" connector from network gateway ECU.
3. Check continuity.
  1. Check continuity between radio and player and network gateway ECU.
    Standard:

    Fig 2: Radio And Player And Network Gateway ECU Continuity Specification Table
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

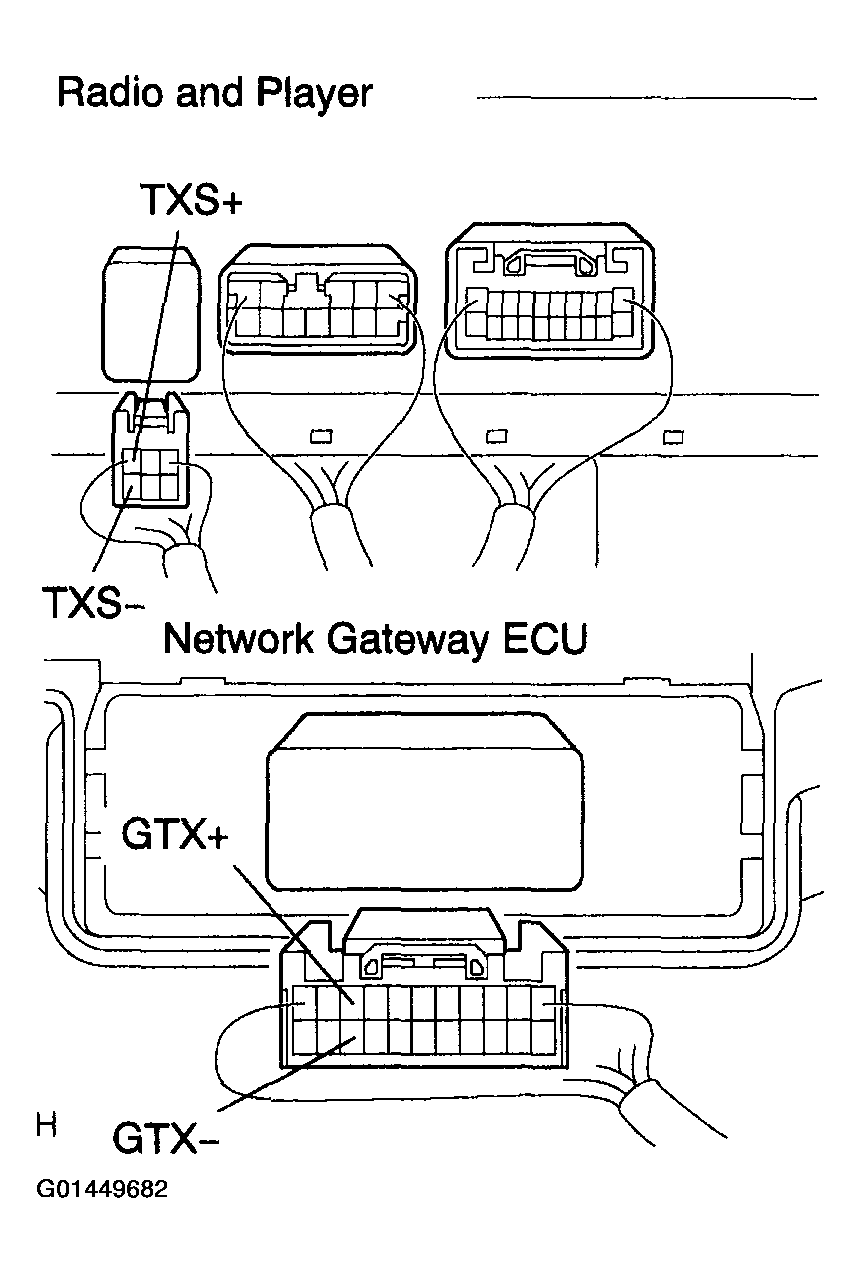

    Fig 3: Checking Harness & Connector Between Radio & Player & Network Gateway ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: Go to next step.
CHECK AND REPLACE NETWORK GATEWAY ECU
CHECK AND REPLACE NETWORK GATEWAY ECU
1. NG: Go to next step.
  CHECK AND REPLACE MULTI-DISPLAY (CRT DISPLAY) DISPLAY
