DESCRIPTION OF CODE REGISTRATION
1. When adding master keys and sub-keys (additional registration).
  1. Register the key code (immobilizer code) in the steering lock ECU.

    Fig 1: Register Key Code (Immobilizer Code) In Steering Lock ECU Specification
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Register the key code (smart code) in the steering lock ECU.

    Fig 2: Register Key Code (Smart Code) In Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When replacing the steering lock ECU (new registration).
  1. Register the key code (immobilizer code) in the steering lock ECU.

    Fig 3: Register Key Code (Immobilizer Code) In Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Register the ECU COMMUNICATION ID between the ECM and the steering lock ECU.

    Fig 4: Specification Register ECU Communication ID Between ECM And Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When replacing the theft warning ECU.
  1. Register the ECU COMMUNICATION ID between the ECM and the steering lock ECU.

    Fig 5: Register ECU Communication ID Between ECM And Steering Lock ECU Specification
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. When replacing the ECM.
  1. Register the ECU COMMUNICATION ID between the ECM and the steering lock ECU.

    Fig 6: Specification Register ECU Communication ID Between ECM And Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. When replacing the steering lock ECU and theft warning ECU at the same time.
  1. Register the key code (immobilizer code) in the steering lock ECU.

    Fig 7: Specification Register Key Code (Immobilizer Code) In Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Register the key code (smart code) in the steering lock ECU.

    Fig 8: Specification Register Key Code (Smart Code) In Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Register the ECU COMMUNICATION ID between the ECM and the steering lock ECU.

    Fig 9: Specification Register ECU Communication ID Between ECM And Steering Lock ECU
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Erasure of key code.
  1. Erase the key codes.

    Fig 10: Specification Erase Key Codes
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
KEY REGISTRATION IN AUTOMATIC REGISTRATION (NEW REGISTRATION)
1. When an ignition key is inserted into the ignition cylinder, the key code (immobilizer code) registration is automatic. In this mode, a maximum of 4 key codes for 3 master keys and 1 sub-key can be registered. Any order of registration for the master keys and sub-keys is fine because the steering lock ECU can distinguish between different types of keys.
  HINT:
  - When a new steering lock ECU is installed, key codes (immobilizer codes) must be registered with ignition keys.
  - New steering lock ECUs are automatically set to automatic key code registration mode.
  Automatic Key Code Registration (New Registration)

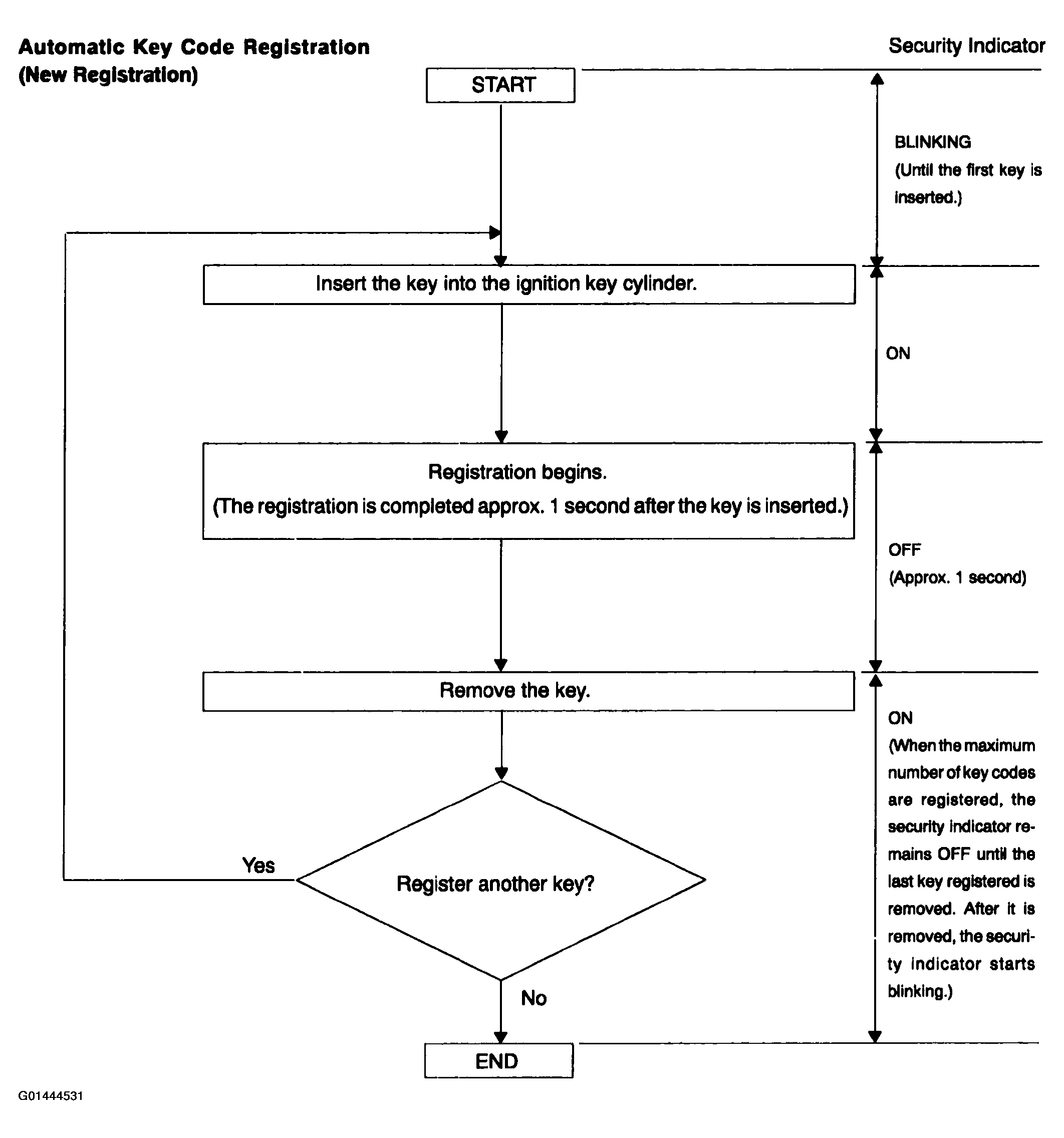

  Fig 11: Flow Chart Automatic Key Code Registration
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - When no key is inserted in the ignition key cylinder in automatic key code registration mode, the security indicator remains on.
  - When the immobilizer system is operating normally and the key is pulled out, the security indicator blinks continuously.
  - If the key code registration has failed in automatic key code registration mode, code 2-1 will be output from the security indicator. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3 will be output from the security indicator. The output details are shown below.

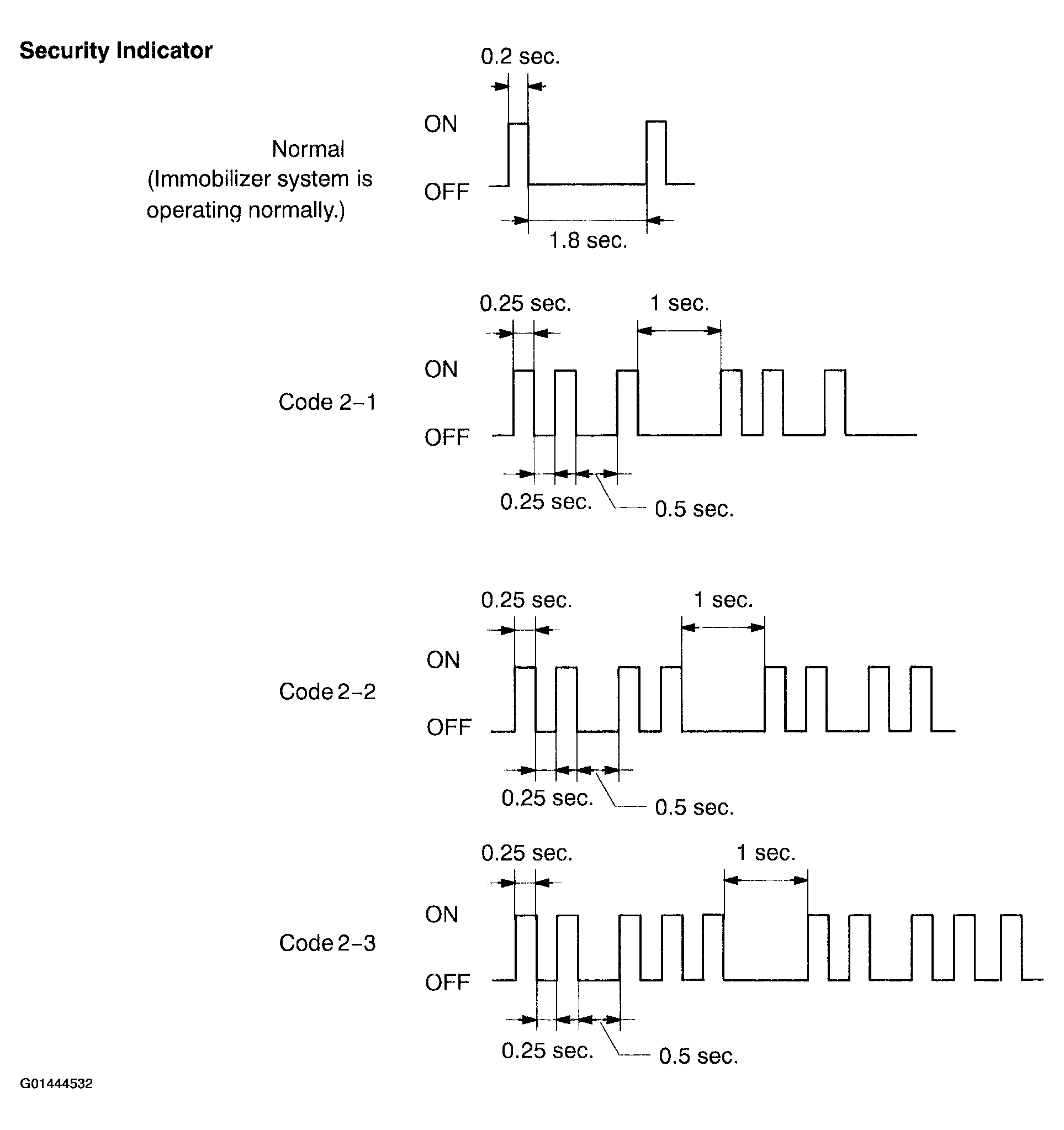

    Fig 12: Identifying Security Indicator Graph
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Finish the automatic key code registration mode.
HINT:

The automatic key code registration mode can be forced to end when at least 1 ley code (immobilizer code) for the master key has been registered.
REGISTRATION OF ADDITIONAL KEY (ADDITIONAL REGISTRATION)
1. Register an additional key by using the hand-held tester.
HINT:
- A maximum of 5 master key codes and 3 sub-key codes can be registered.
- Registration mode will end if each step is not completed within the specified time.
- When the ignition cylinder or the key cylinder set is replaced, remove the transmitter module from the original master key. Then install this transmitter module to a new key and use the new key as the master key. If necessary, use this master key to register other keys.
NOTE: When the ignition key cylinder has been replaced, locking and unlocking doors is possible with the new master key's transmitter module (taken from the original master key). However, the new master key will not be able to lock and unlock doors through the door key cylinder. Keep the original master key. If the new master key's transmitter module's battery fails, the original master key can be used to lock and unlock doors through the door key cylinder.

Additional Registration

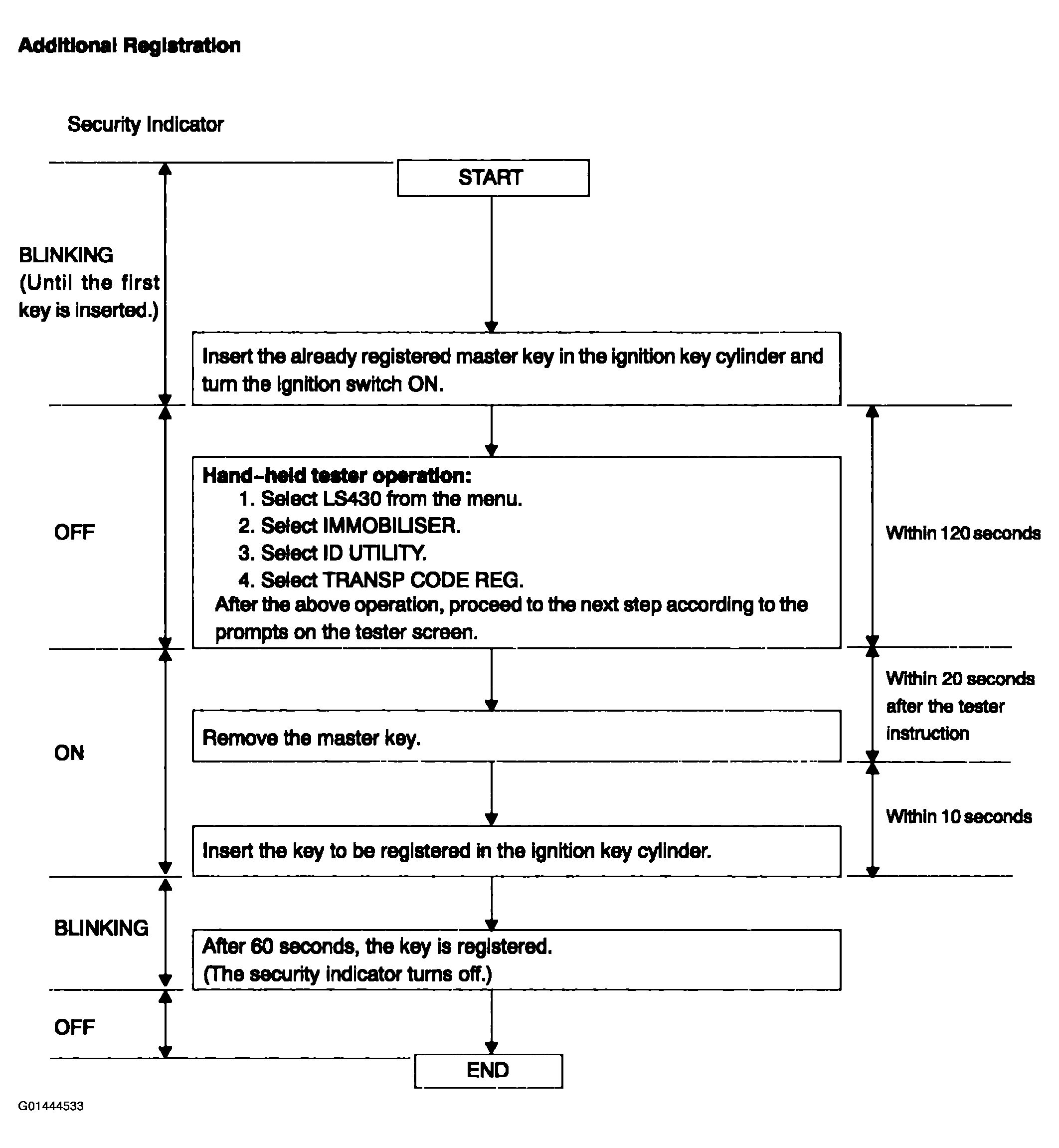

Fig 13: Additional Registration Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- A brief outline of procedures for key code registration is shown on this page. For more detailed information, please refer to the hand-held tester screen instructions.
- When the immobilizer system is operating normally and the key is pulled out, the security indicator blinks continuously.
- If the key code registration has failed in automatic key code registration mode, code 2-1 will be output from the security indicator. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3v be output from the security indicator. The output details are shown in step 2 (new registration).
ERASURE OF KEY CODE
1. Erase key codes using the hand-held tester.
HINT:
- All key codes are erased except for the master key, which is used for erasing the key codes. In order to use a key whose code has been erased, a new key code must be registered.
- Registration will be cancelled if each step is not completed within the specified time.
Erasing Key Code

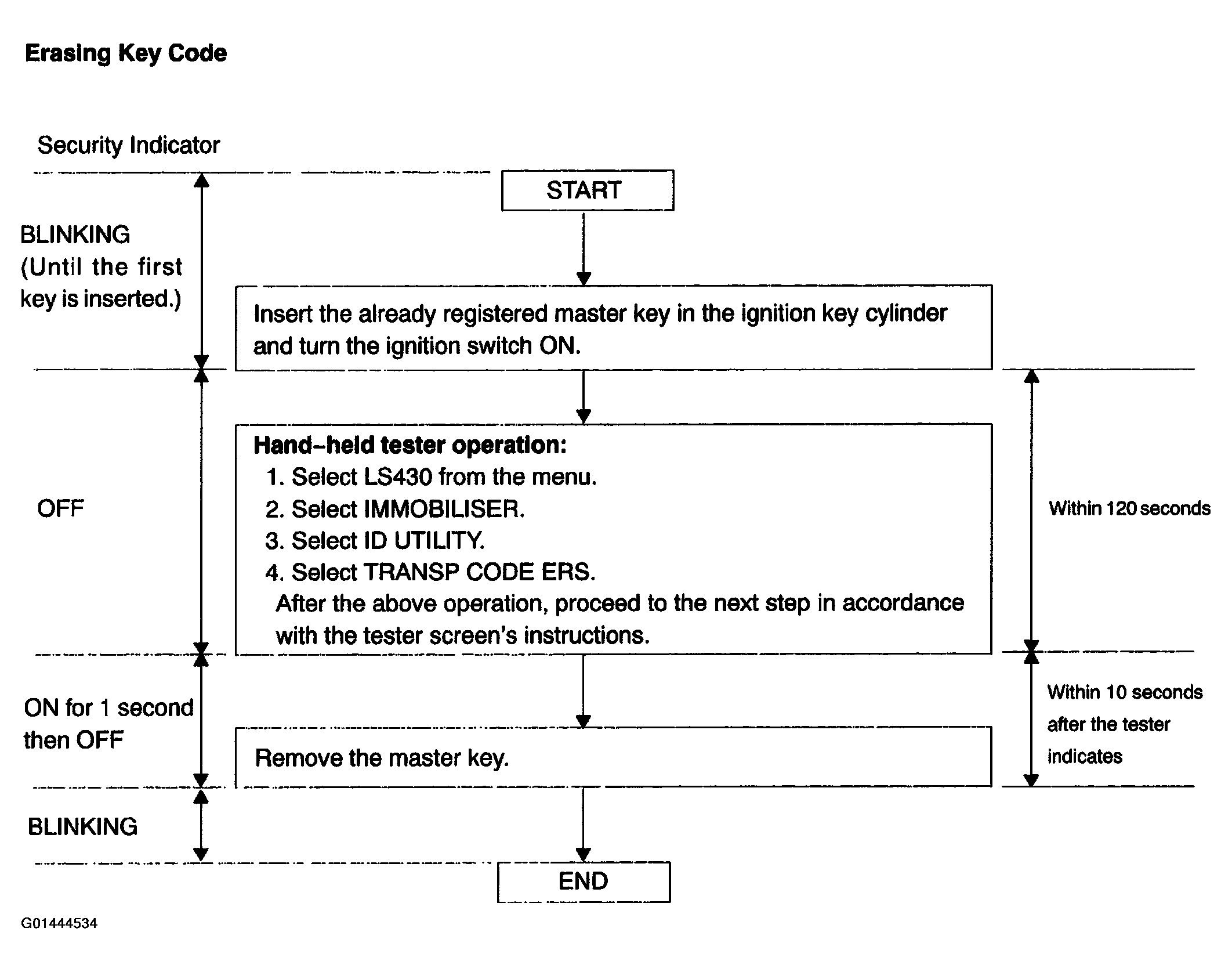

Fig 14: Erasing Key Code Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- A brief outline of procedures for key code registration is shown on this page. For more detailed information, please refer to the hand-held tester screen instructions.
- When the immobilizer system is operating normally and the key is pulled out, the security indicator blinks continuously.
ECU COMMUNICATION ID REGISTRATION
NOTE:
- The ECU communication ID should be registered when the steering lock ECU and/or the ECU is replaced in order to match the ECM COMMUNICATION ID.
- The engine cannot be started unless the ECM COMMUNICATION ID matches.
HINT:
- Registration will be cancelled if each step is not completed within the specified time.
ECU Communication ID Registration

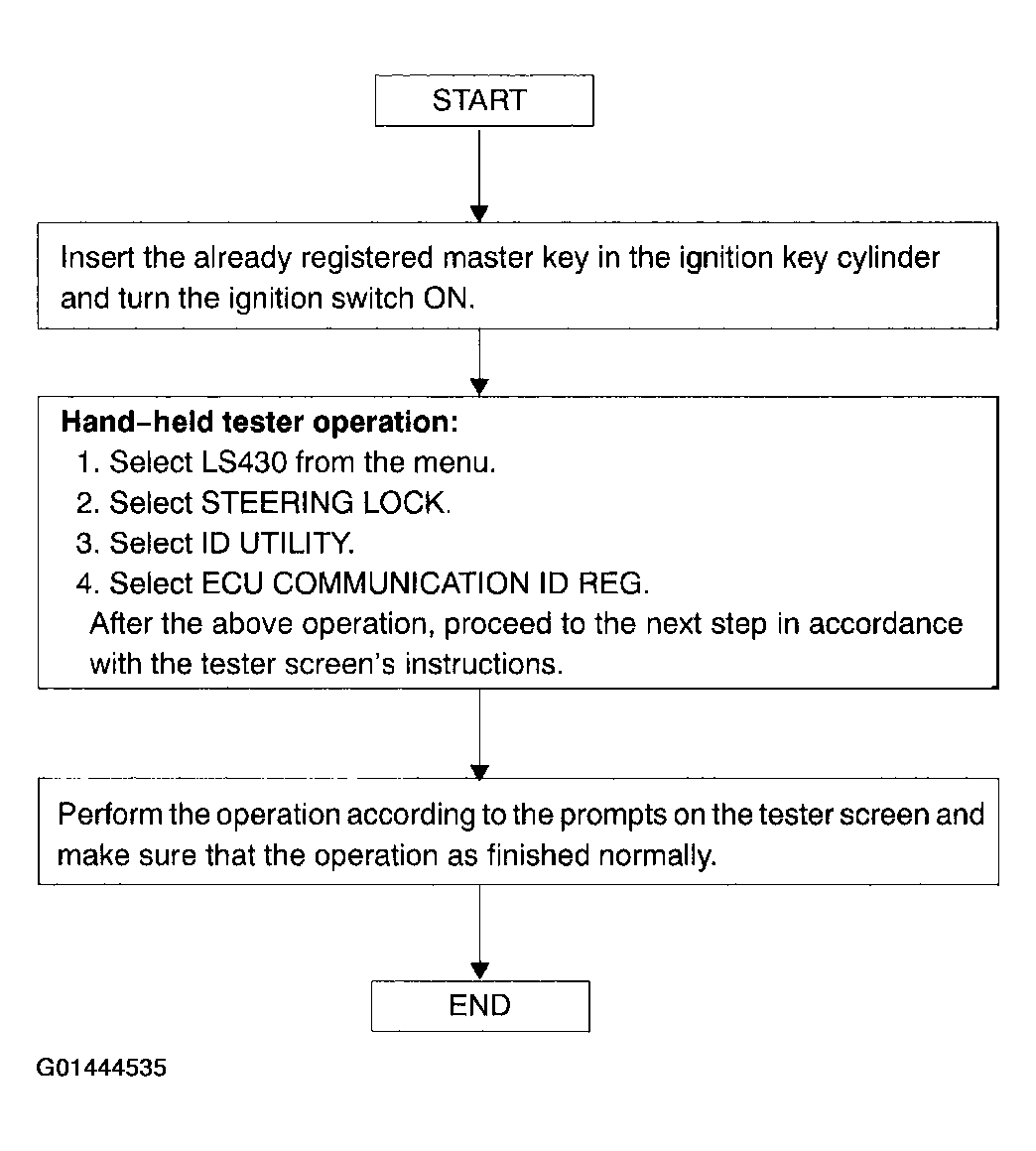

Fig 15: ECU Communication ID Registration Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU COMMUNICATION ID REGISTRATION
NOTE:
- The ECU communication ID should be registered when the steering lock ECU and/or the ECM is replaced in order to match the ECM COMMUNICATION ID.
- The engine cannot be started unless the ECM COMMUNICATION ID matches.
1. Register the ECU communication ID.

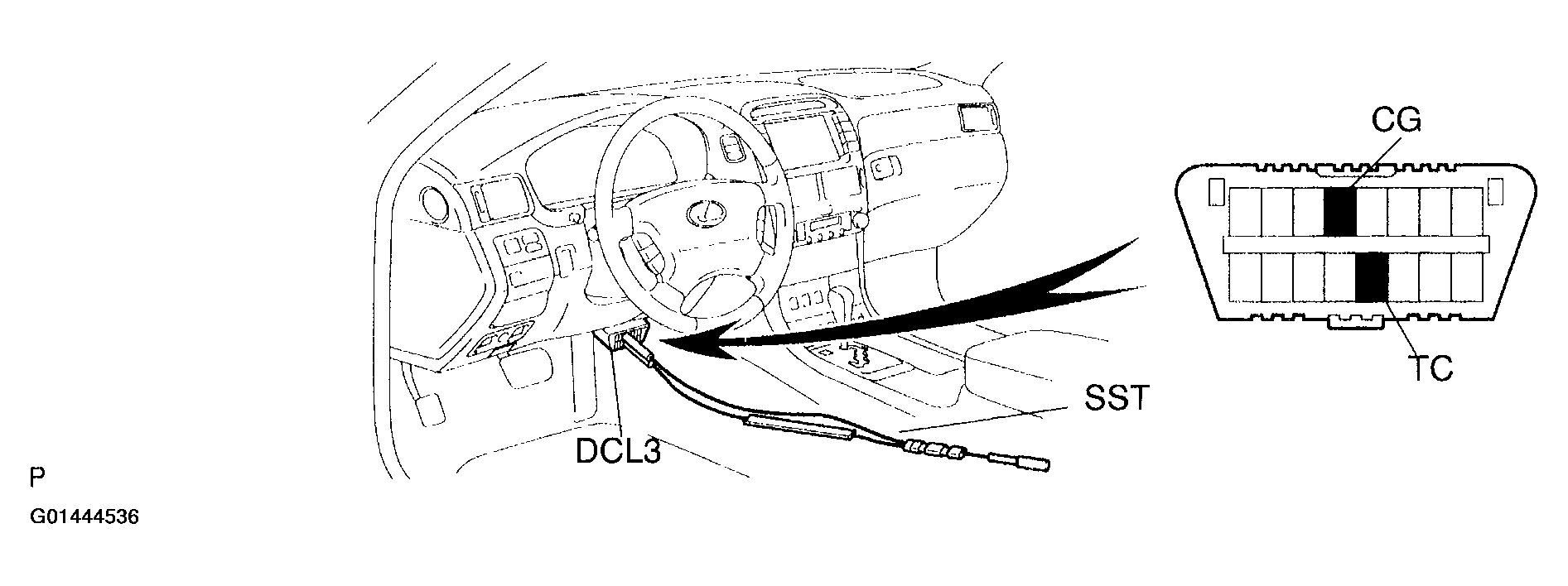

  Fig 16: Identifying ECU Communication ID Terminal Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Using SST, connect terminals TC and CG of the DLC3.
    SST 09843-18040
  2. Turn the ignition switch ON (do not start the engine) and leave it as is for 30 minutes.
  3. Turn the ignition switch OFF and disconnect terminals TC and CG.
  4. Check that the engine starts.
