Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

POWER WINDOW MASTER SWITCH:

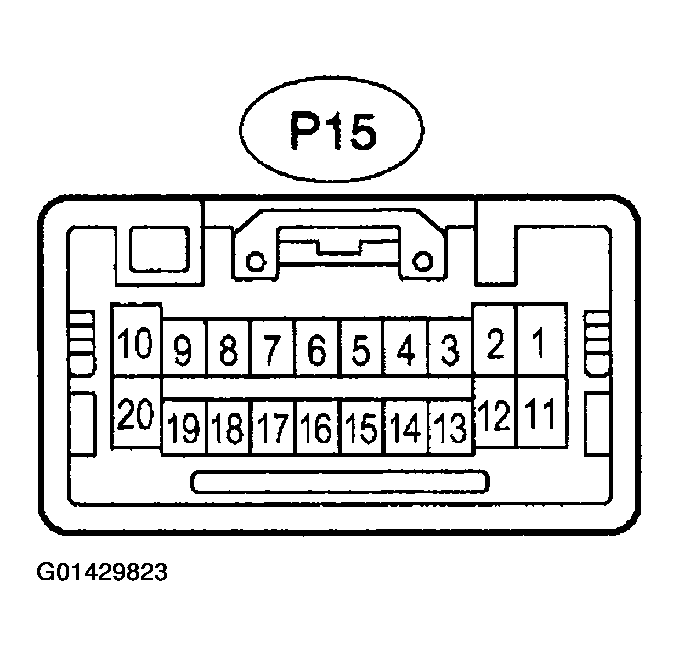

Fig 1: Identifying Terminals Of ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

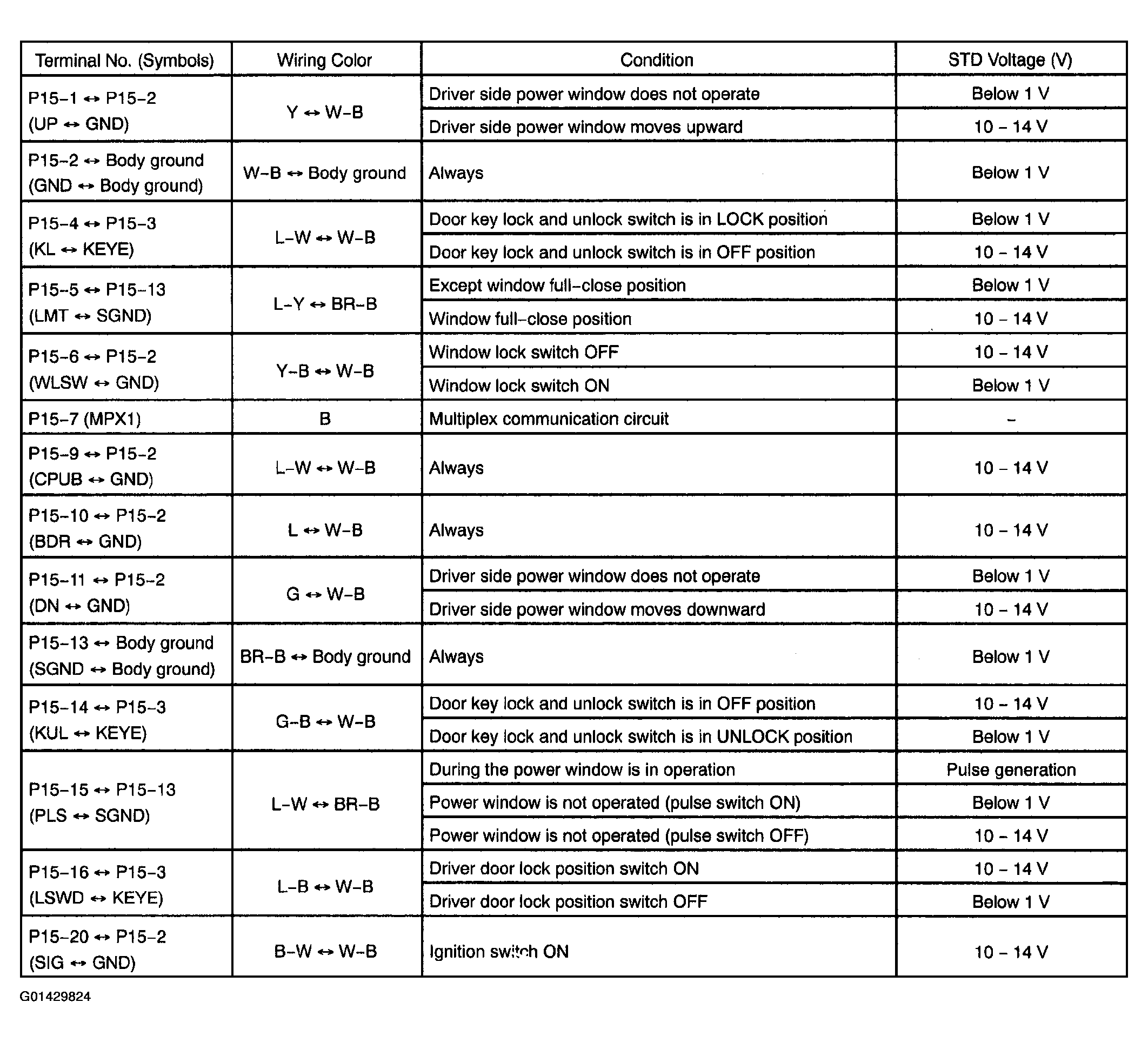

Fig 2: Terminal Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

EXCEPT POWER WINDOW MASTER SWITCH:

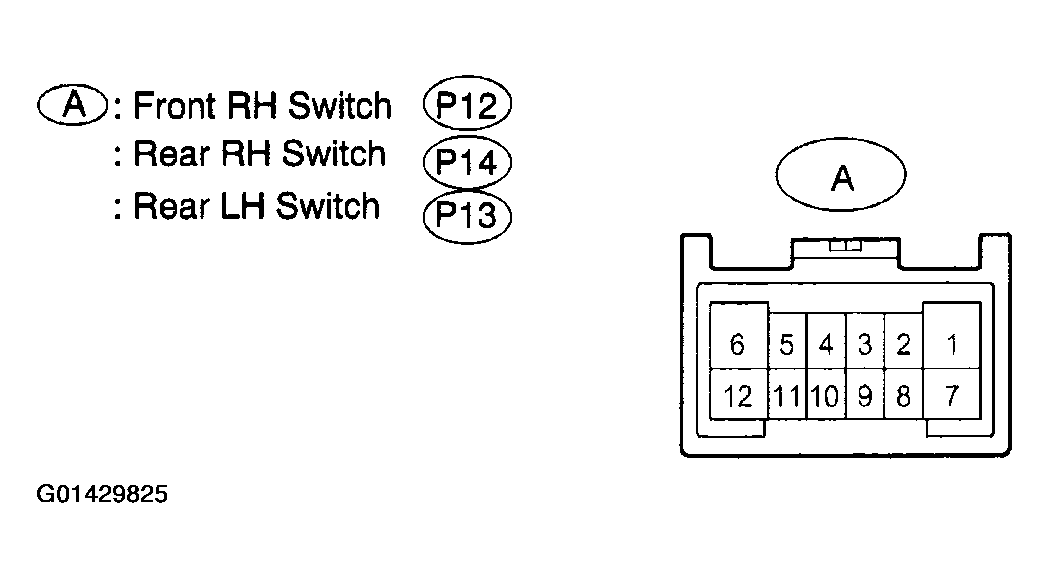

Fig 3: Identifying Except Power Window Master Switch Terminal

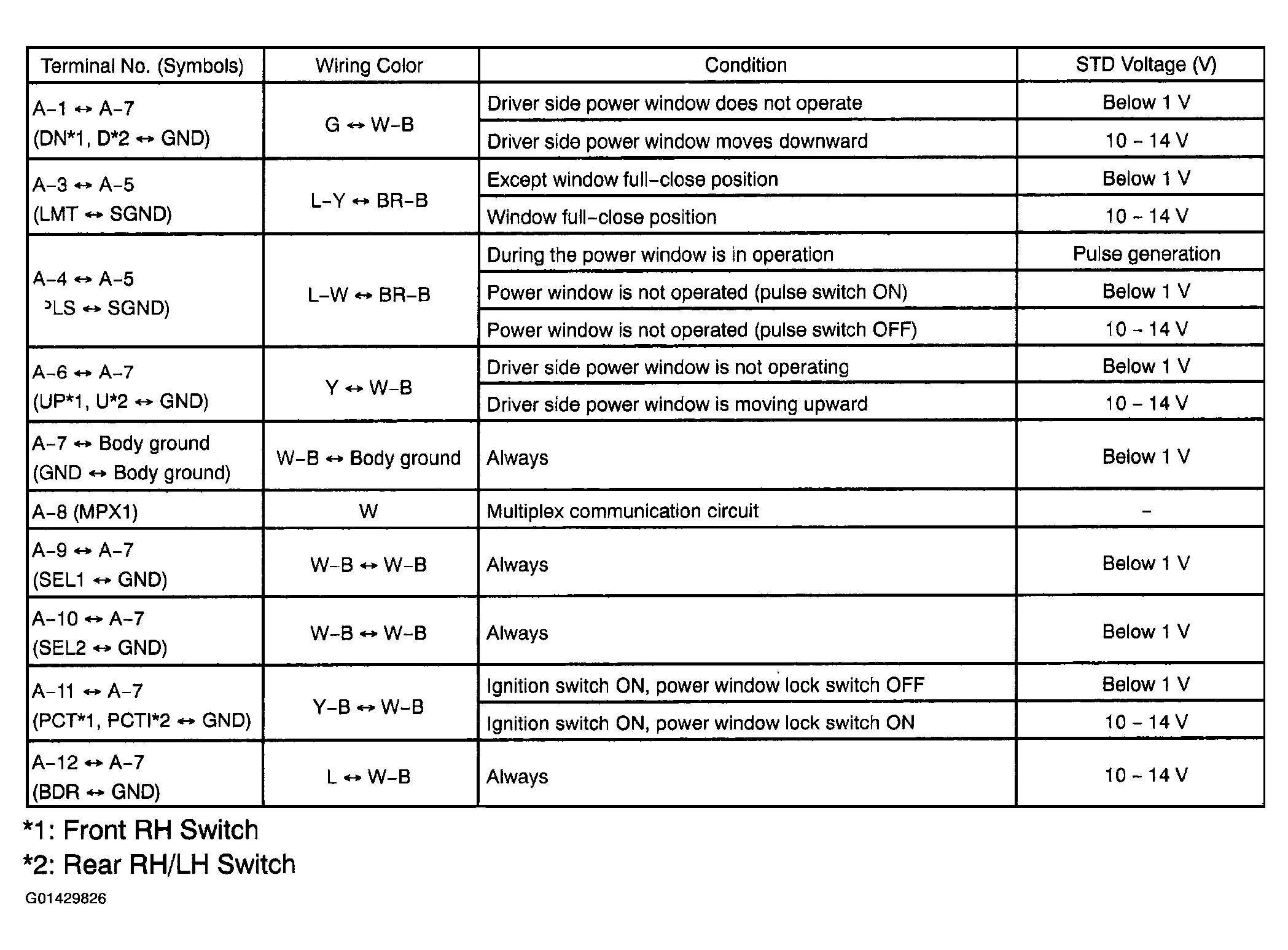

Fig 4: Terminal Condition Chart
