CHECK MULTIPLEX NETWORK DOOR ECU FRONT LH (DRIVER DOOR ECU)

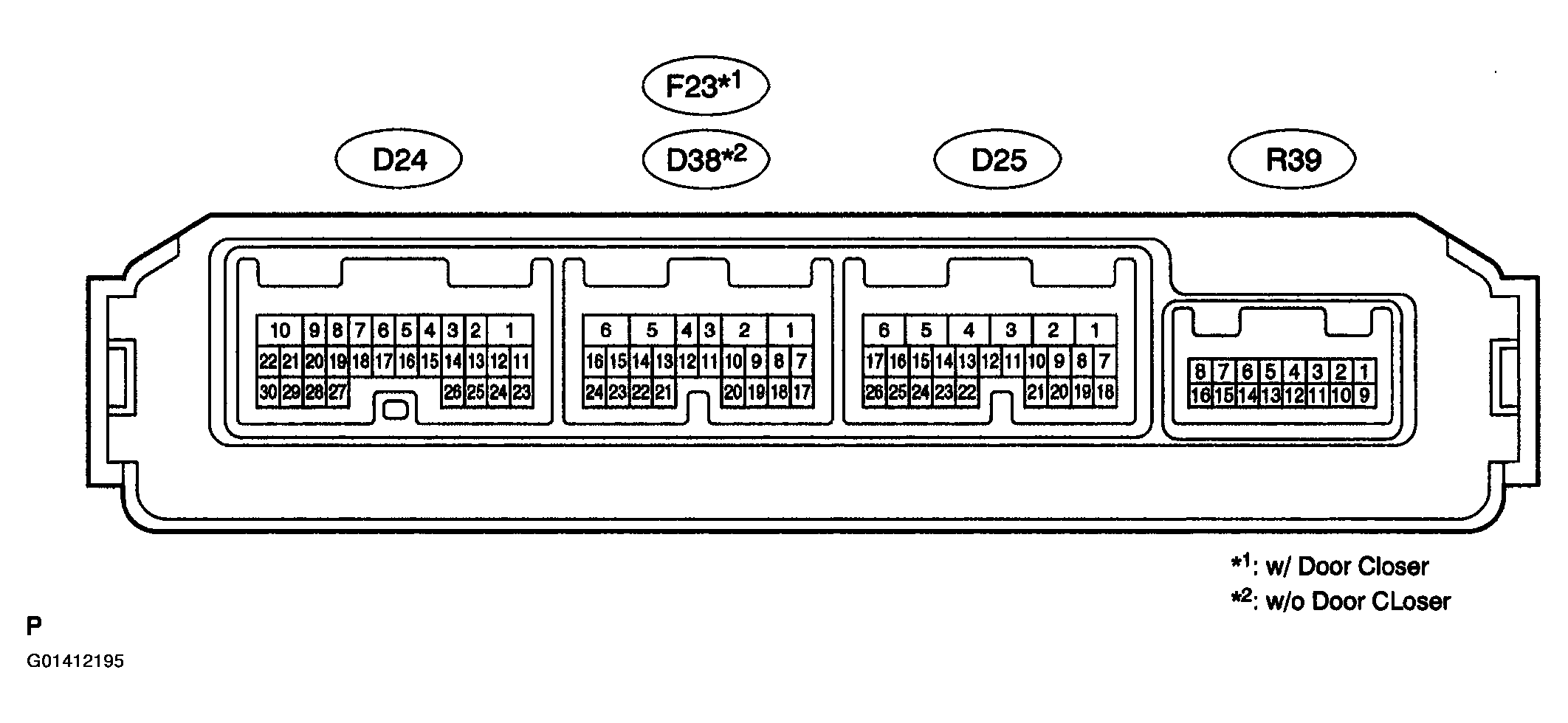

Fig 1: Identifying Terminals Of Multiplex Network Door ECU Front LH (Driver Door ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the D25 ECU connector.
2. Measure the voltage and resistance of each terminal of the wire harness side connector.
  Standard:

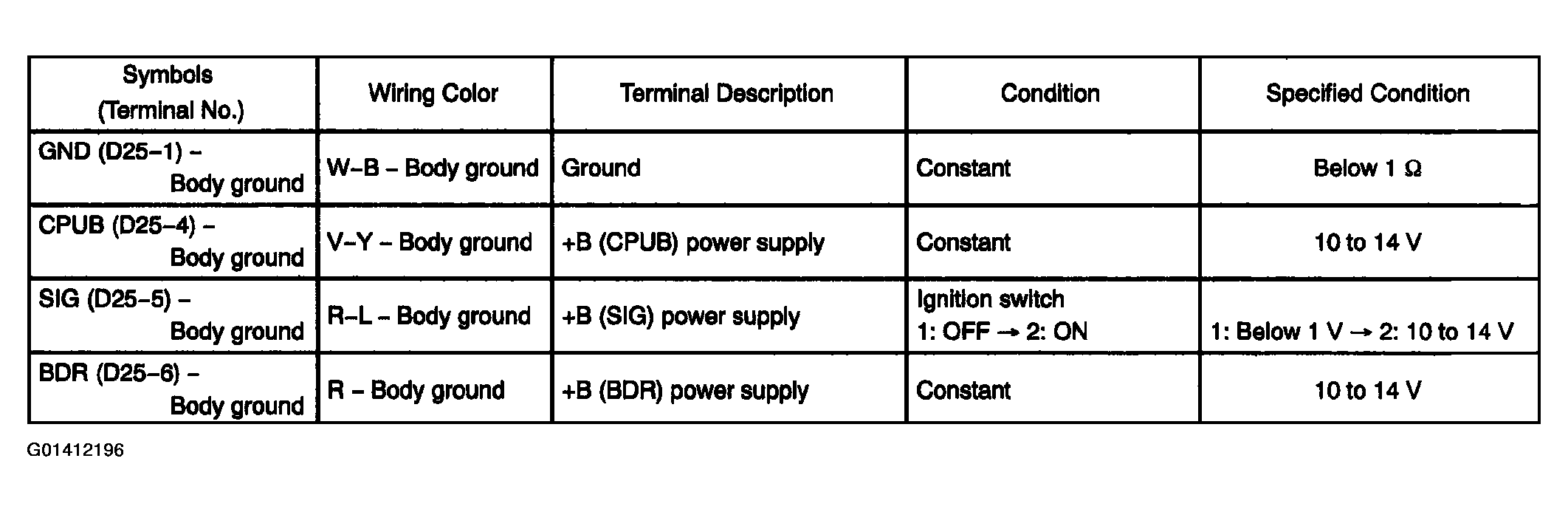

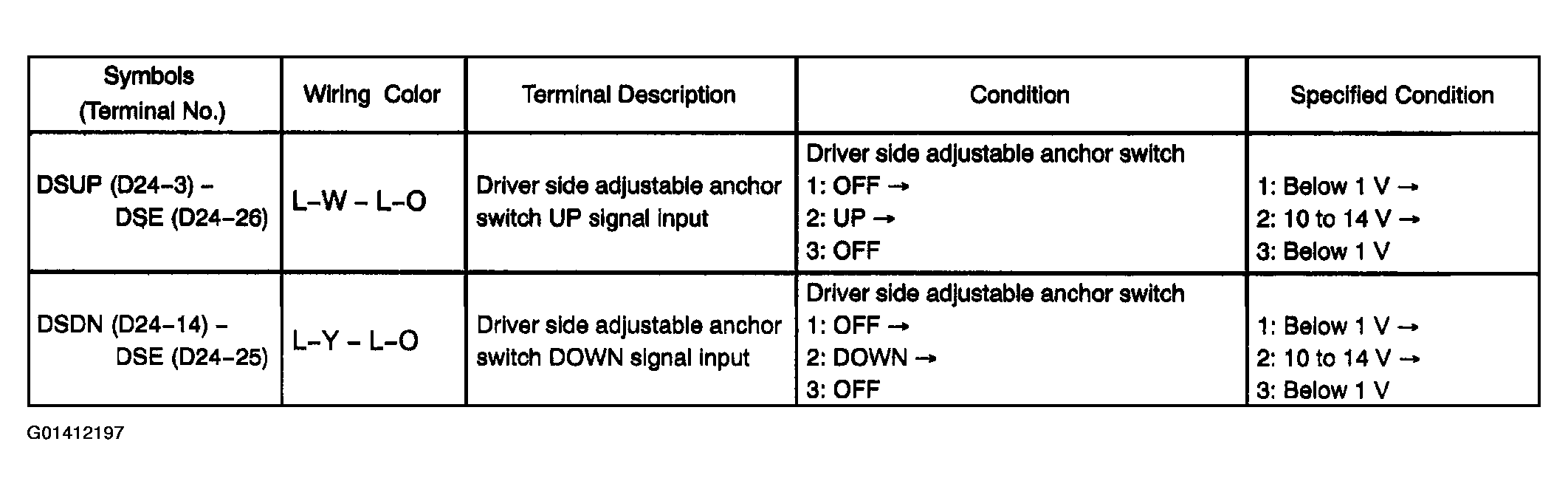

  Fig 2: Multiplex Network Door ECU Front LH (Driver Door ECU) Terminals - Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
3. Reconnect the D25 ECU connector.
4. Measure the voltage of each terminal of the connector.
  Standard:

  Fig 3: Multiplex Network Door ECU Front LH (Driver Door ECU) Terminals - Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK MULTIPLEX NETWORK DOOR ECU FRONT RH (PASSENGER DOOR ECU)

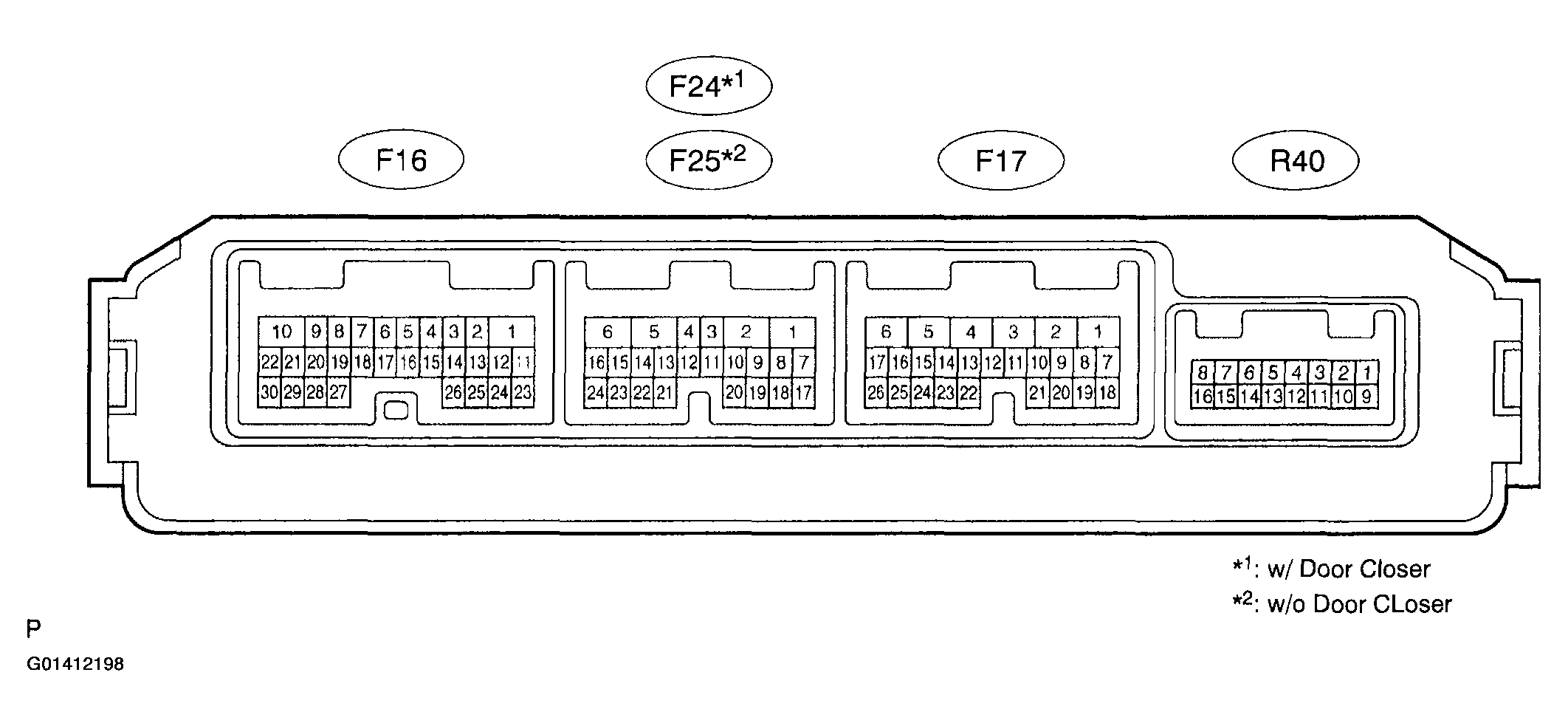

Fig 4: Identifying Terminals Of Multiplex Network Door ECU Front RH (Passenger Door ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the F17 ECU connector.
2. Measure the voltage and resistance of each terminal of the wire harness side connector.
  Standard:

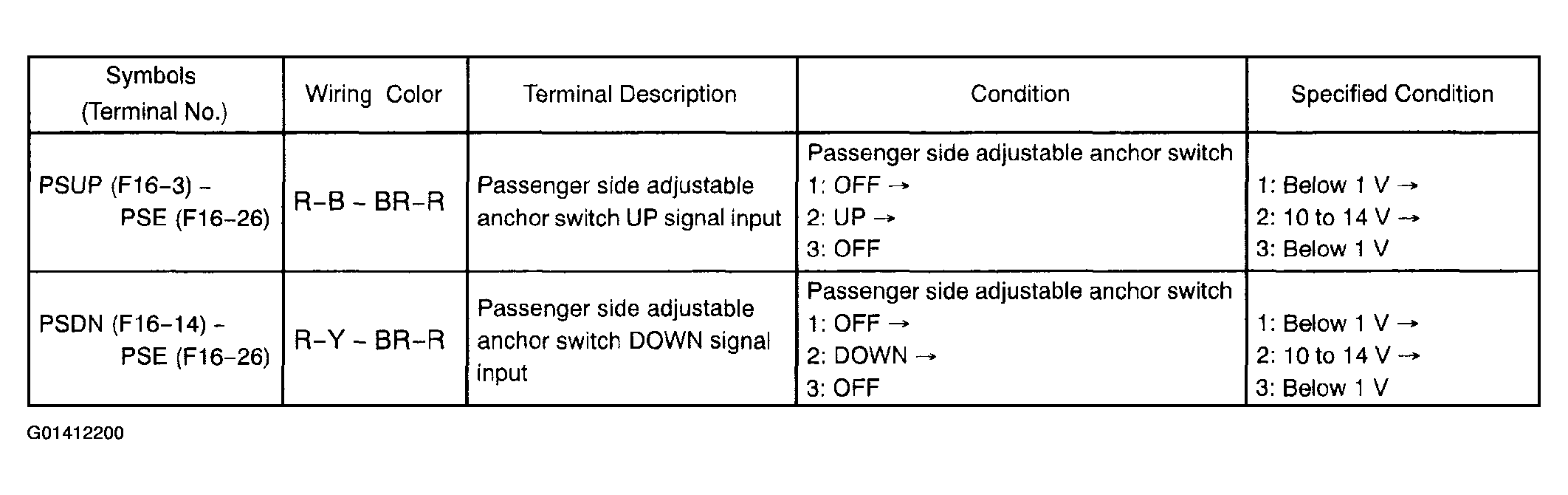

  Fig 5: Multiplex Network Door ECU Front RH (Passenger Door ECU) Terminals - Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
3. Reconnect the F17 ECU connector.
4. Measure the voltage of each terminal of the connector.
  Standard:

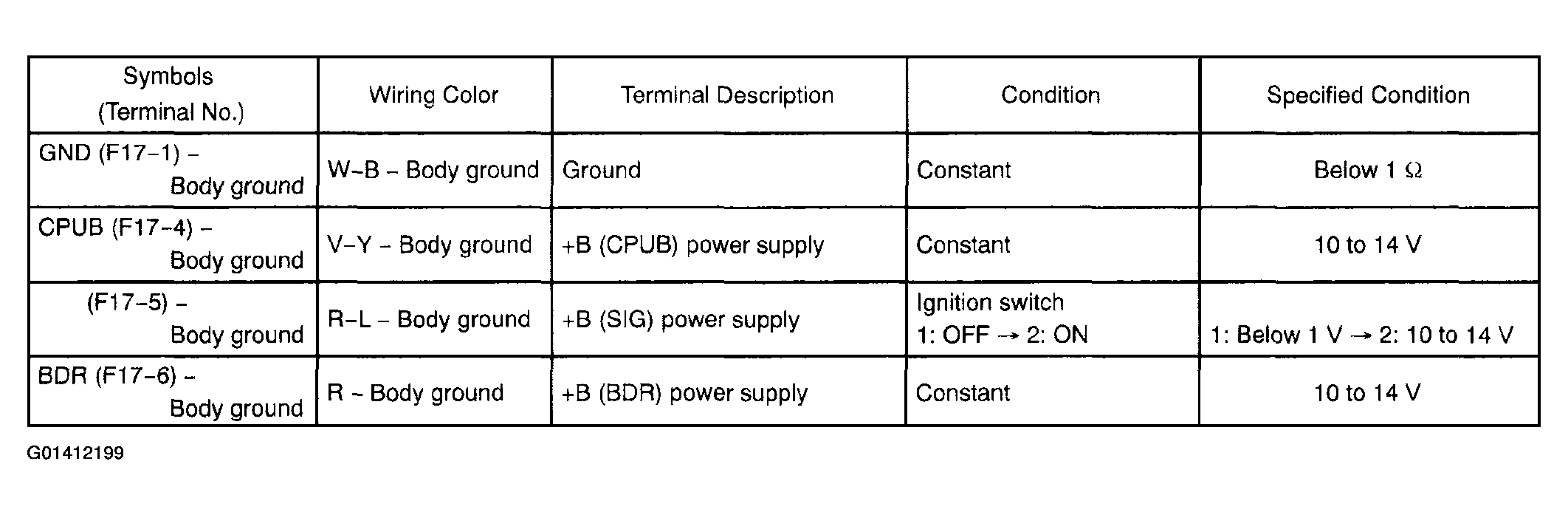

  Fig 6: Multiplex Network Door ECU Front RH (Passenger Door ECU) Terminals - Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, the ECU may have a malfunction.
CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

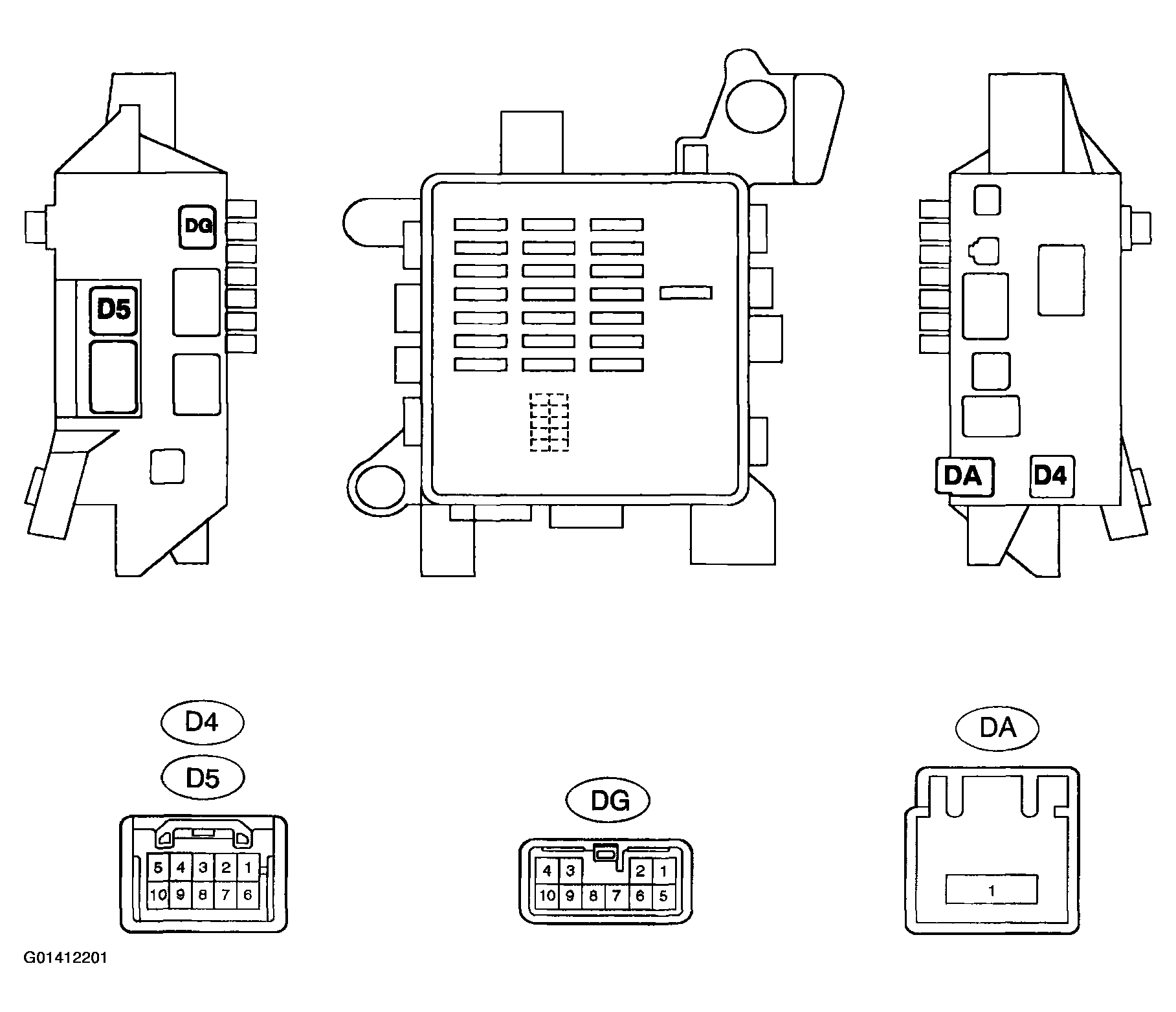

Fig 7: Identifying Terminals Of Driver Side J/B ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the DA and DG J/B, and D5 ECU connectors.
2. Measure the voltage and resistance between each terminal of the wire harness side connectors and body ground.
  Standard:

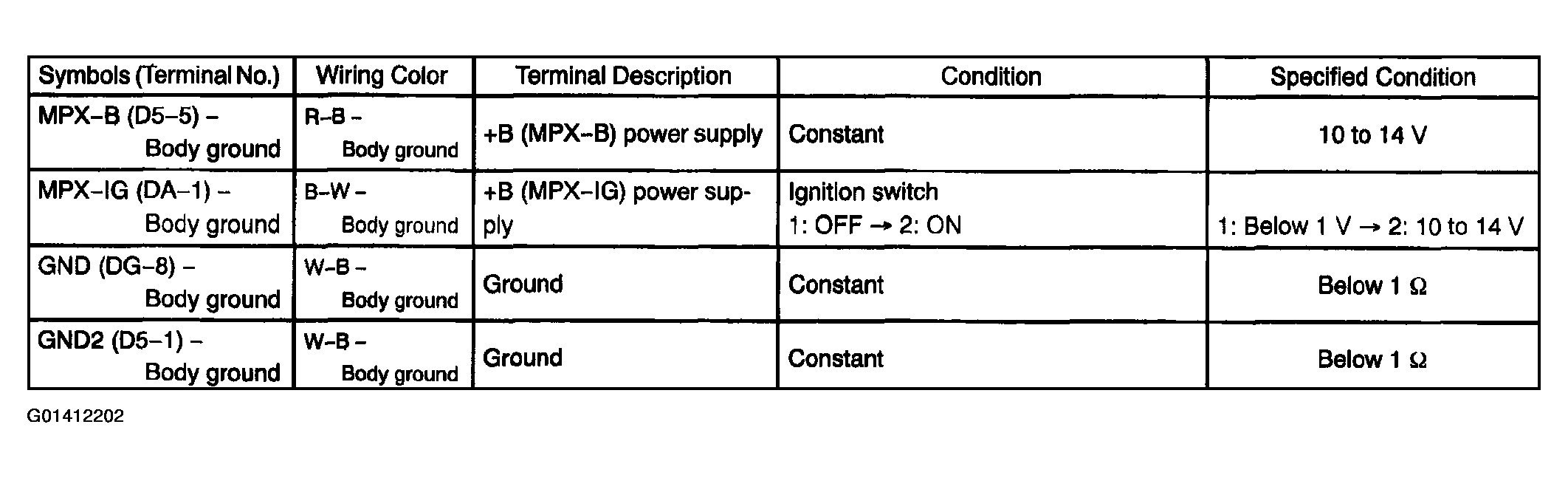

  Fig 8: Driver Side J/B ECU Terminals - Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
3. Reconnect the DA and DG J/B, and D5 ECU connectors.
4. Measure the voltage between each terminal of the connector and body ground.
  Standard:

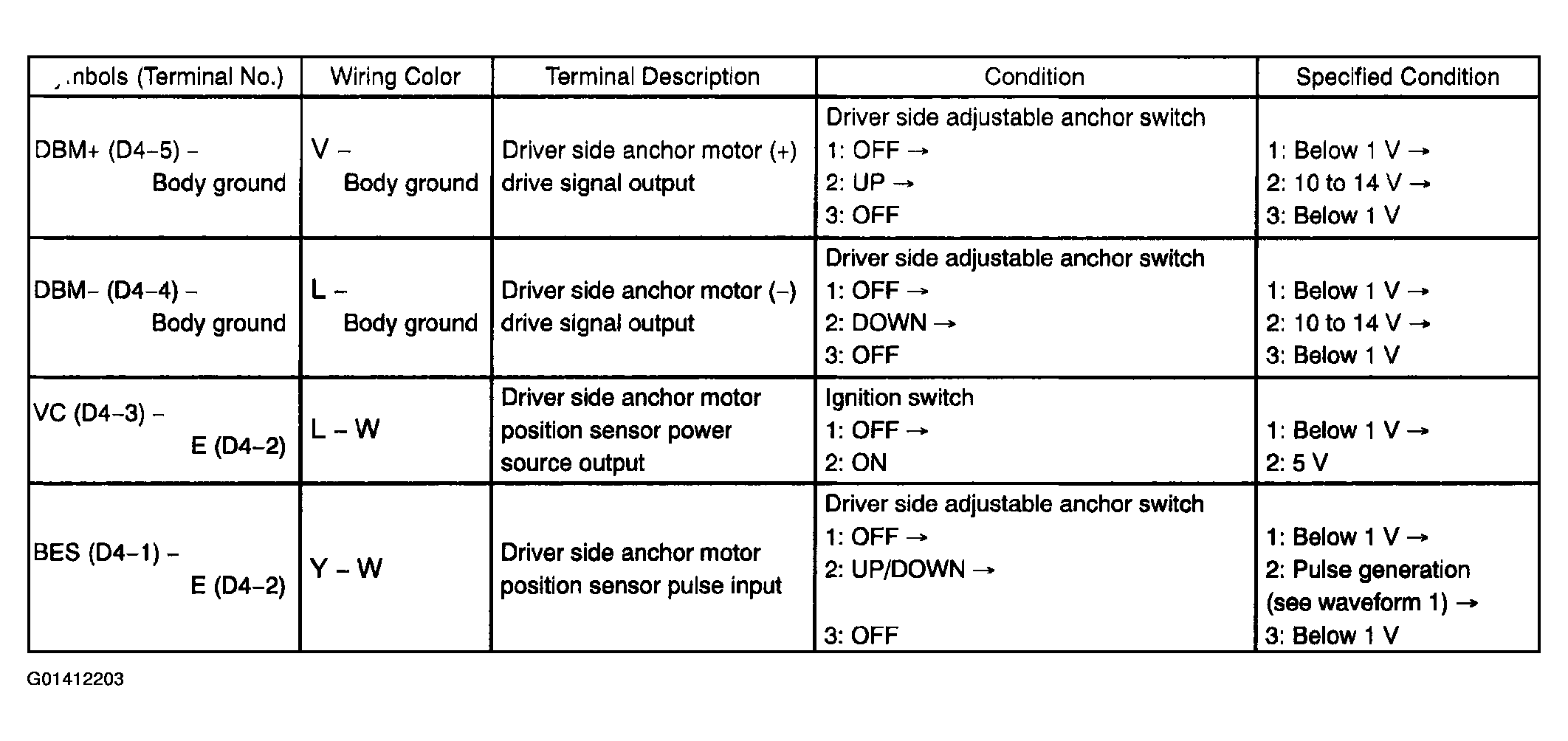

  Fig 9: Driver Side J/B ECU Terminals - Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Waveform 1:
  Standard (Reference):

  Fig 10: Waveform 1: Standard
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 11: Identifying Waveform
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK PASSENGER SIDE J/B (PASSENGER SIDE J/B ECU)

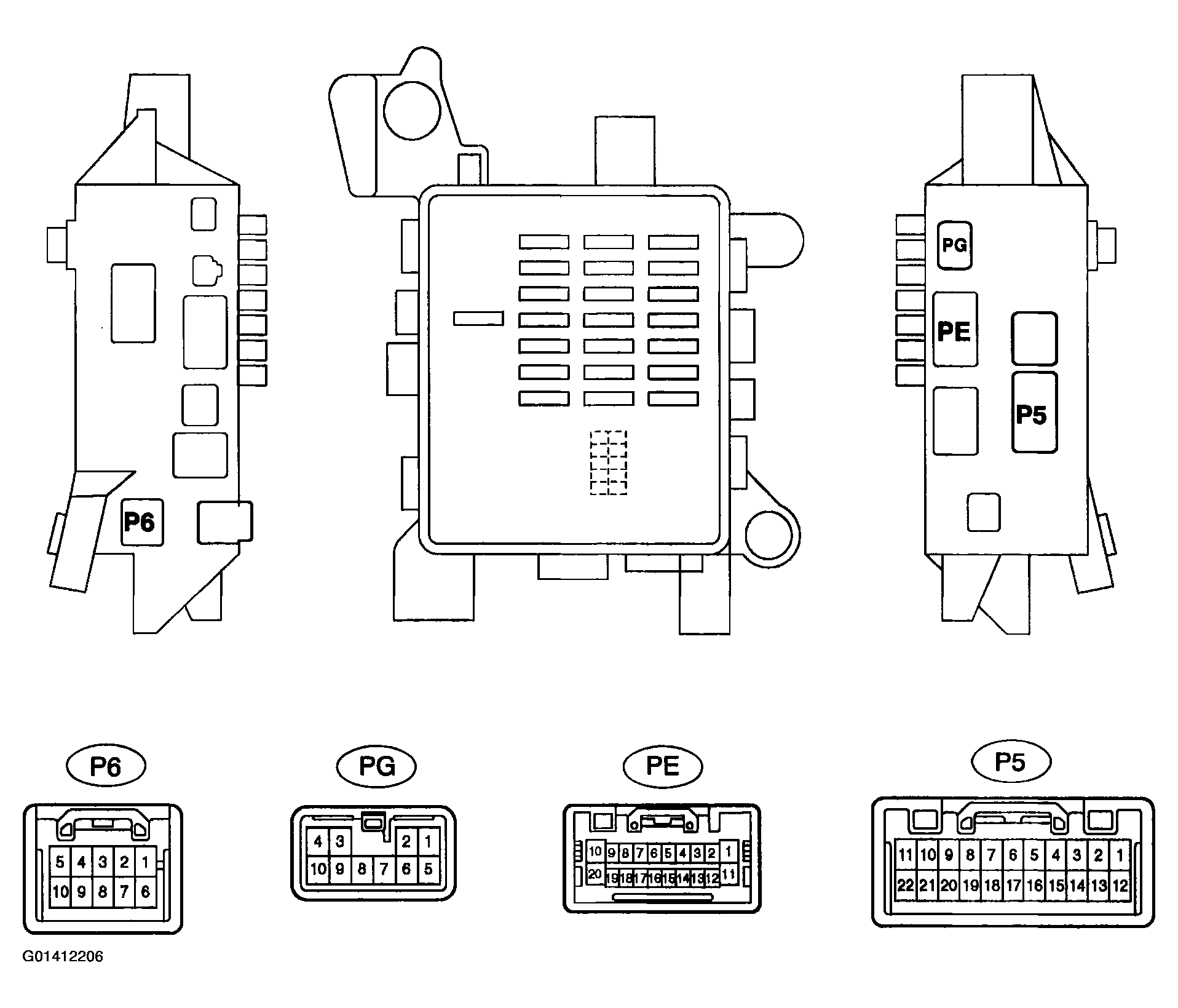

Fig 12: Identifying Terminals Of Passenger Side J/B ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the PE and PG J/B, and P5 ECU connectors.
2. Measure the voltage and resistance between each terminal of the wire harness side connectors and body ground.
  Standard:

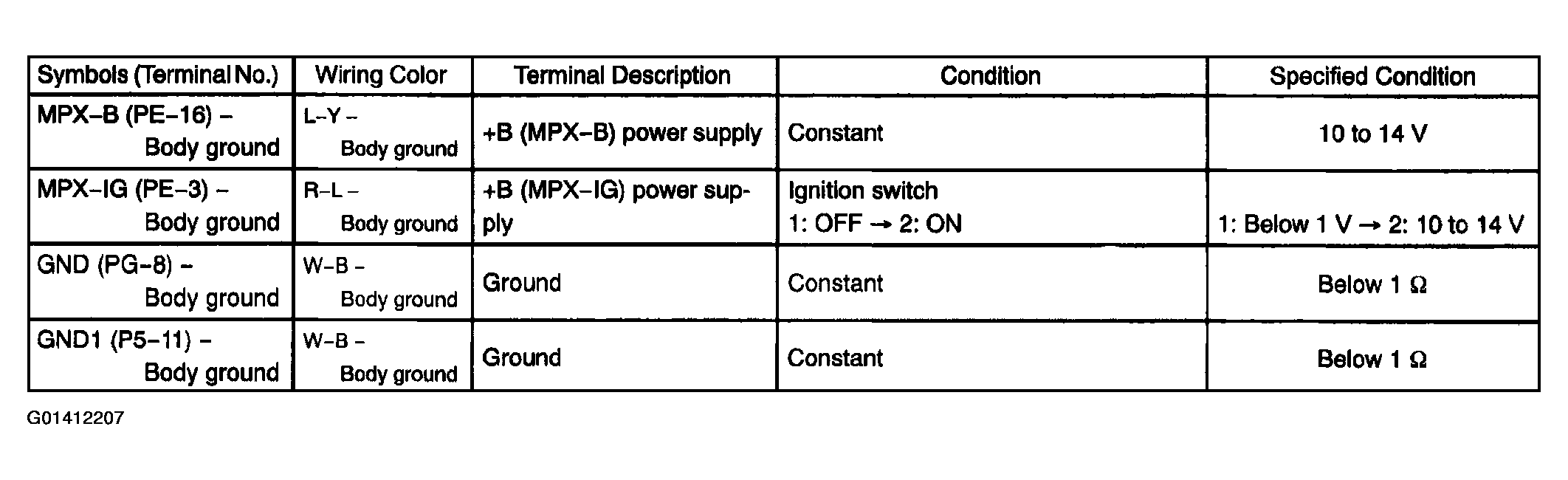

  Fig 13: Voltage And Resistance Between Terminals Of Passenger Side J/B ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
3. Reconnect the PE and PG J/B, and P5 ECU connectors.
4. Measure the voltage between each terminal of the connector and body ground.
  Standard:

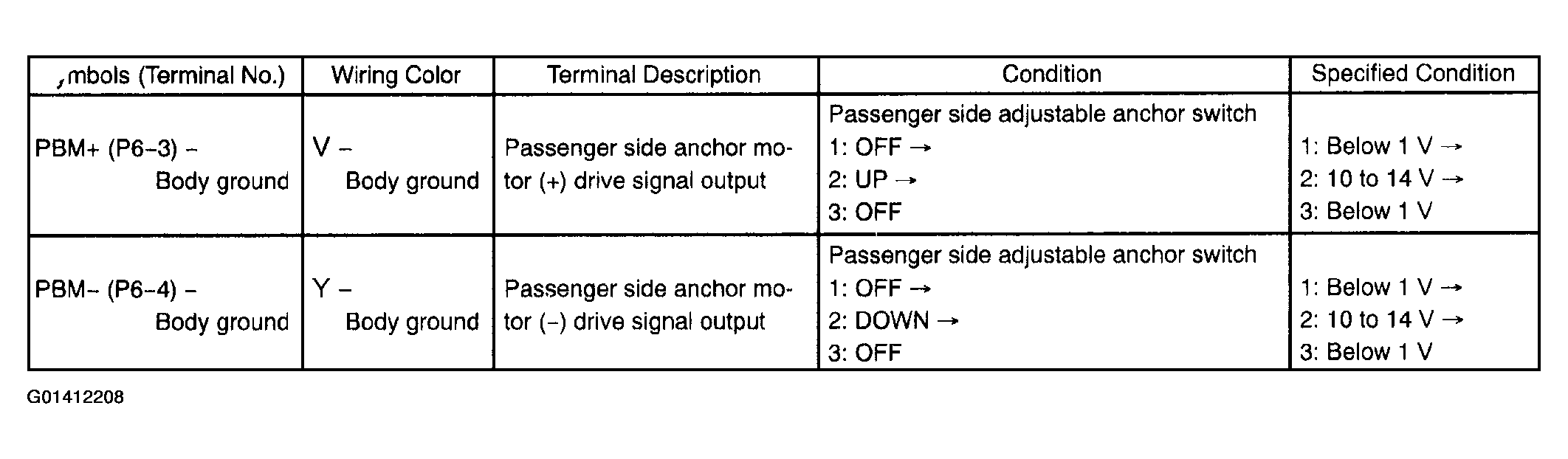

  Fig 14: Voltage Between Terminals Of Passenger Side J/B ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
