Section 249 (Power Shoulder Belt Anchorage System - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

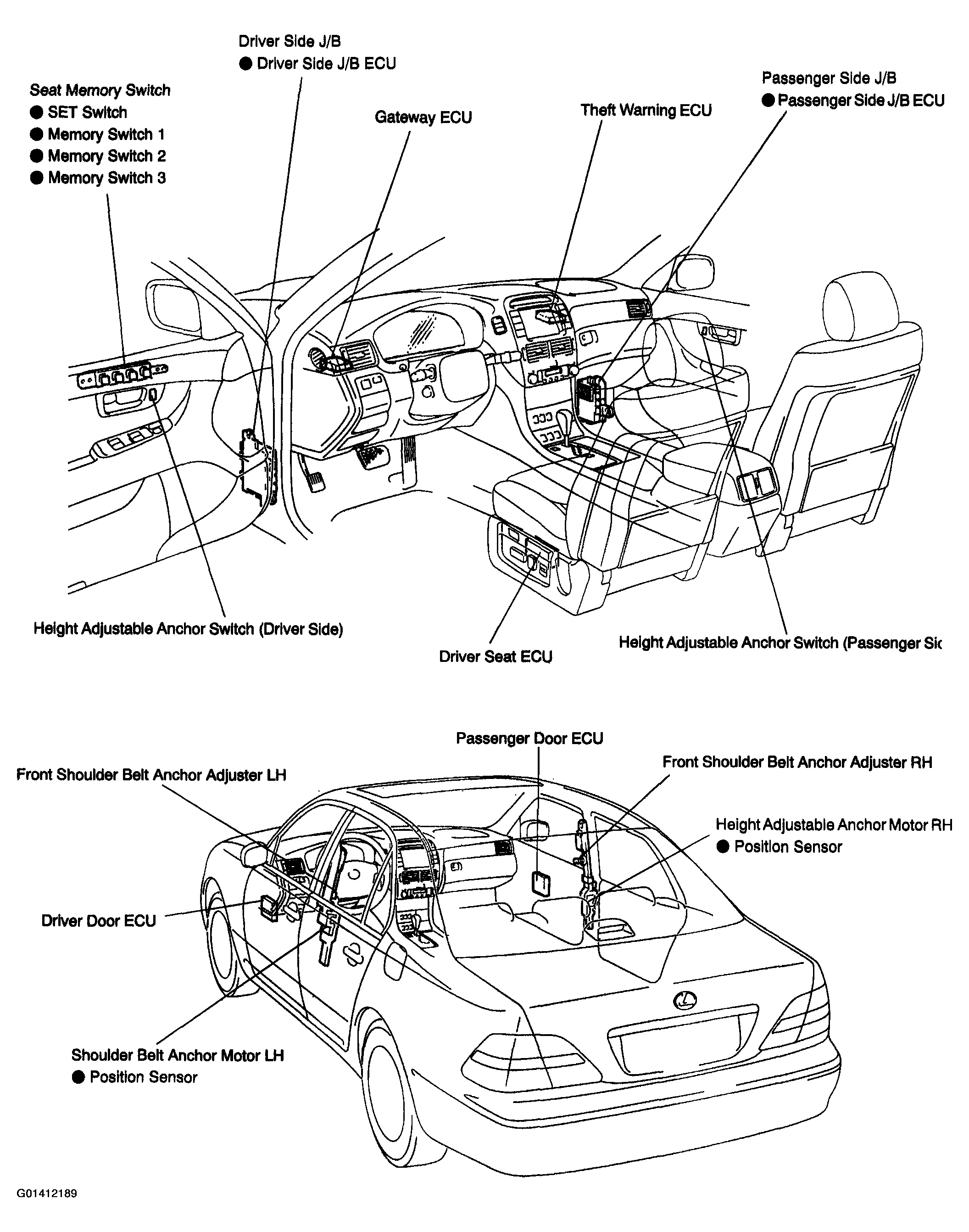

Fig 1: Locating Components Of Power Shoulder Belt Anchorage System
G01412189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
