Fuel Lid: Components

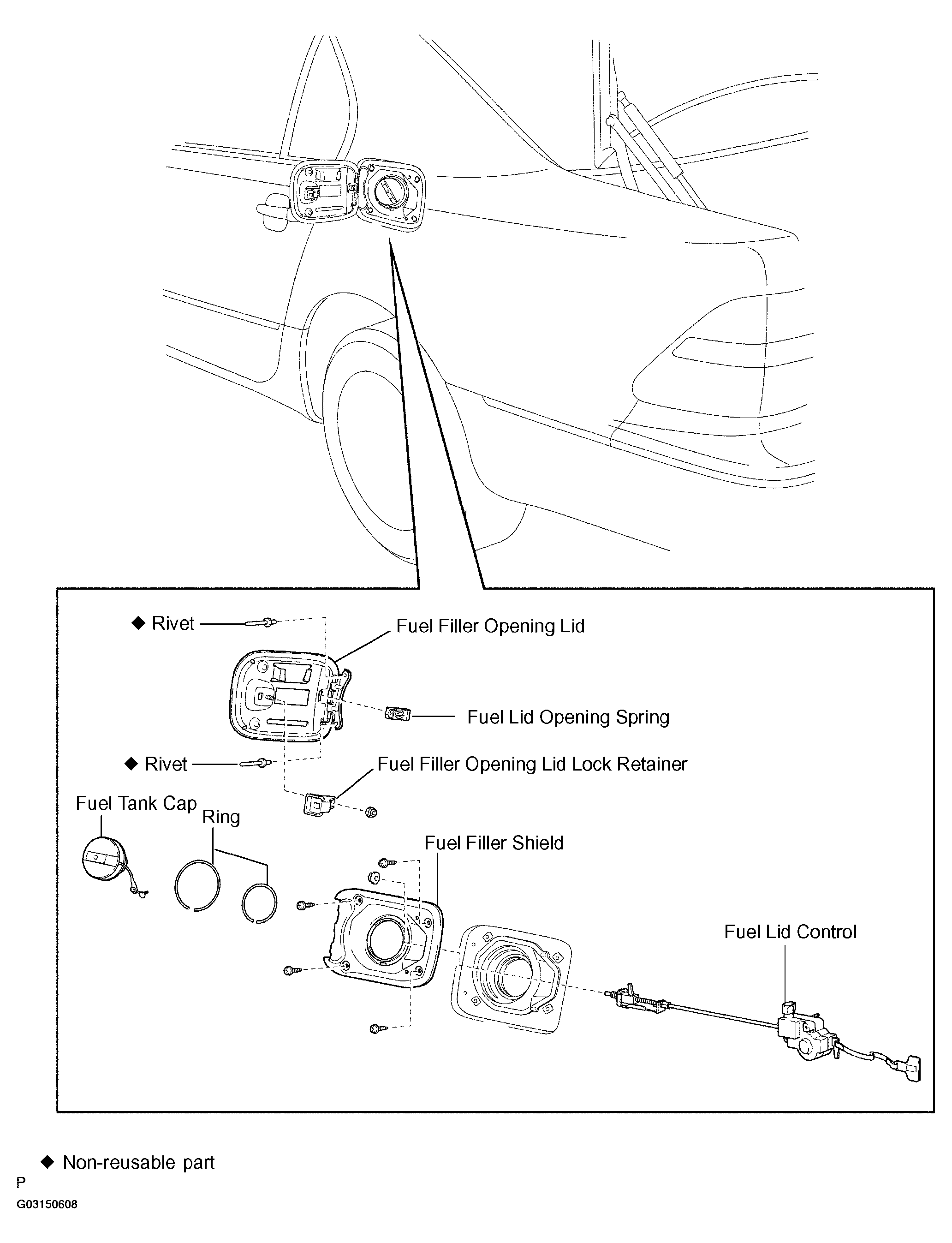

Fig 1: Exploded View Of Fuel Lid Components

G03150608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
