Testing Procedure

For wiring diagram, see Fig 2. For testing procedure, see Fig 3.

Fig 1: Locating DLC3 Connectors
G00185250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

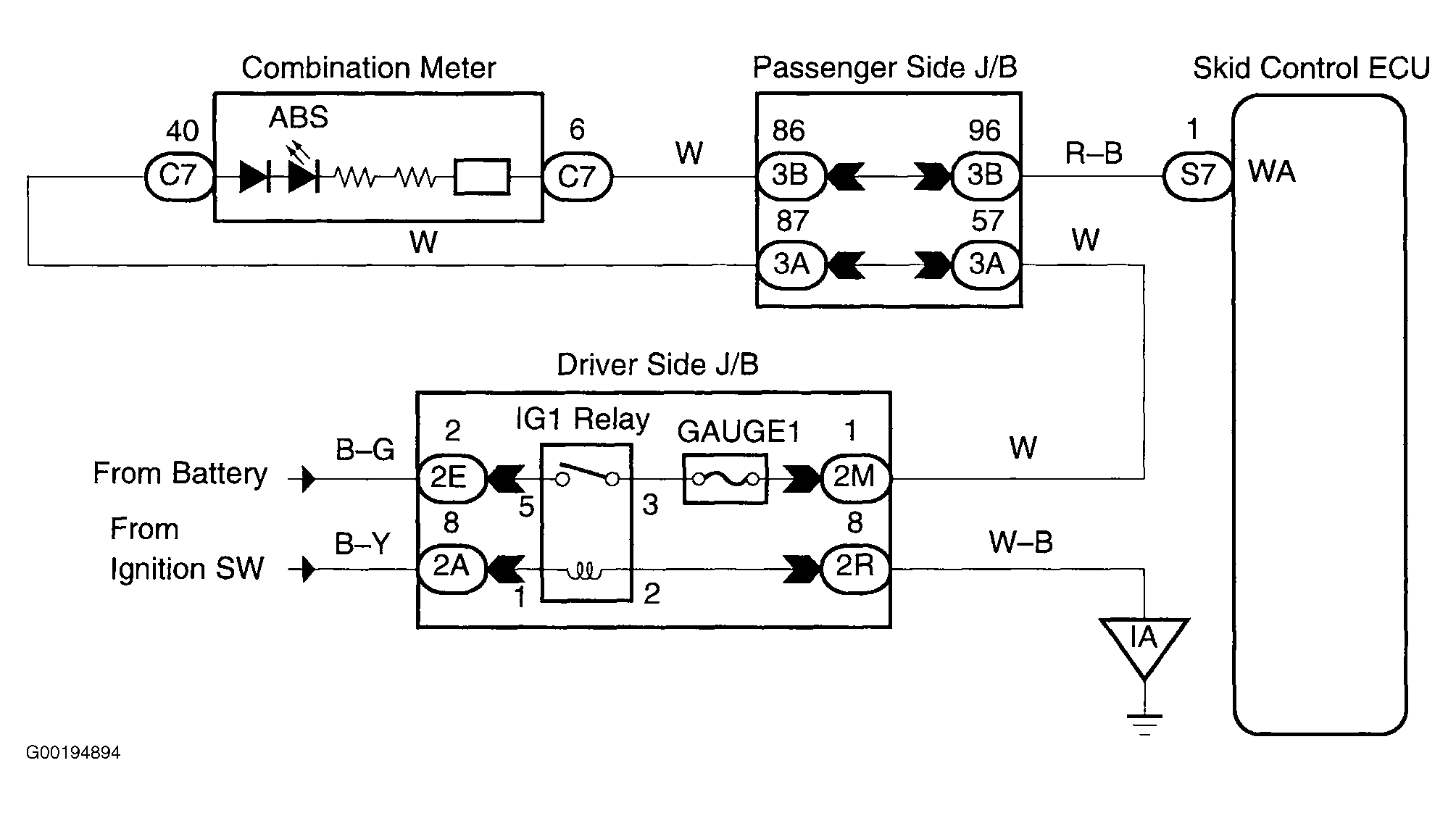

Fig 2: Wiring Diagram (ABS Warning Light Circuit)
G00194894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

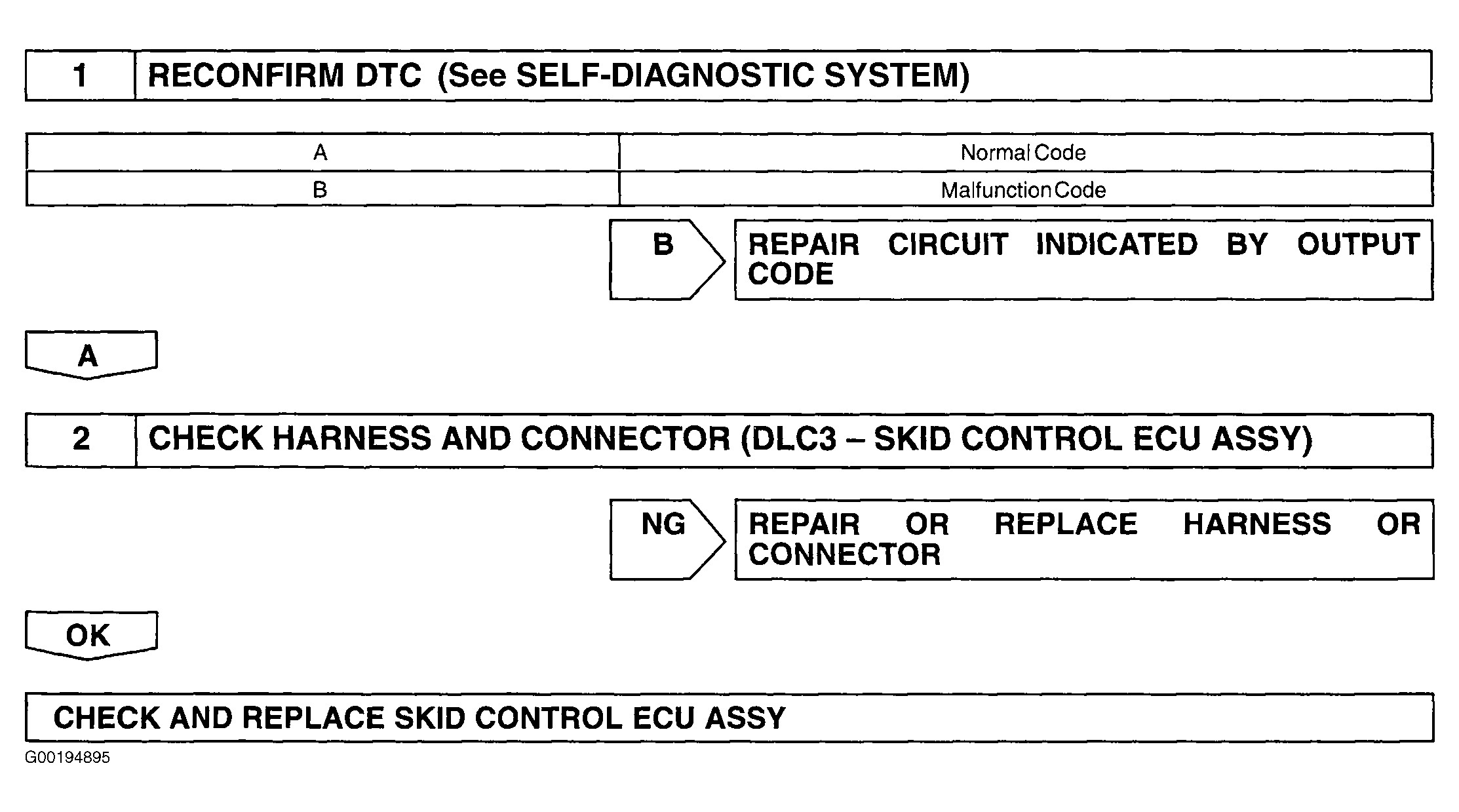

Fig 3: Testing Procedure (ABS Warning Light Circuit Remains On)
G00194895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
