Oil Control Valve Operation (GS300 & IS300)

  1. Oil Control Valve (OCV) is located on top front of valve cover and has a Black 2-pin connector. See Fig 1. Remove upper timing belt cover (No. 3 cover). Disconnect OCV connector. Remove bolt, OCV and "O" ring. Connect a fused jumper wire between battery voltage and terminal No. 1 at OCV. Connect another jumper wire between negative battery terminal and terminal No. 2 at OCV and note OCV plunger operation.
  2. With battery voltage applied, plunger on end of OCV should extend. Disconnect a jumper wire. Without battery voltage applied, plunger should retract. If OCV operation is not as specified, replace OCV. Using a NEW "O" ring, install OCV. Tighten OCV retaining bolt to 71 INCH lbs. (8 N.m). Install upper timing belt cover and tighten retaining bolts to 71 INCH lbs. (8 N.m).

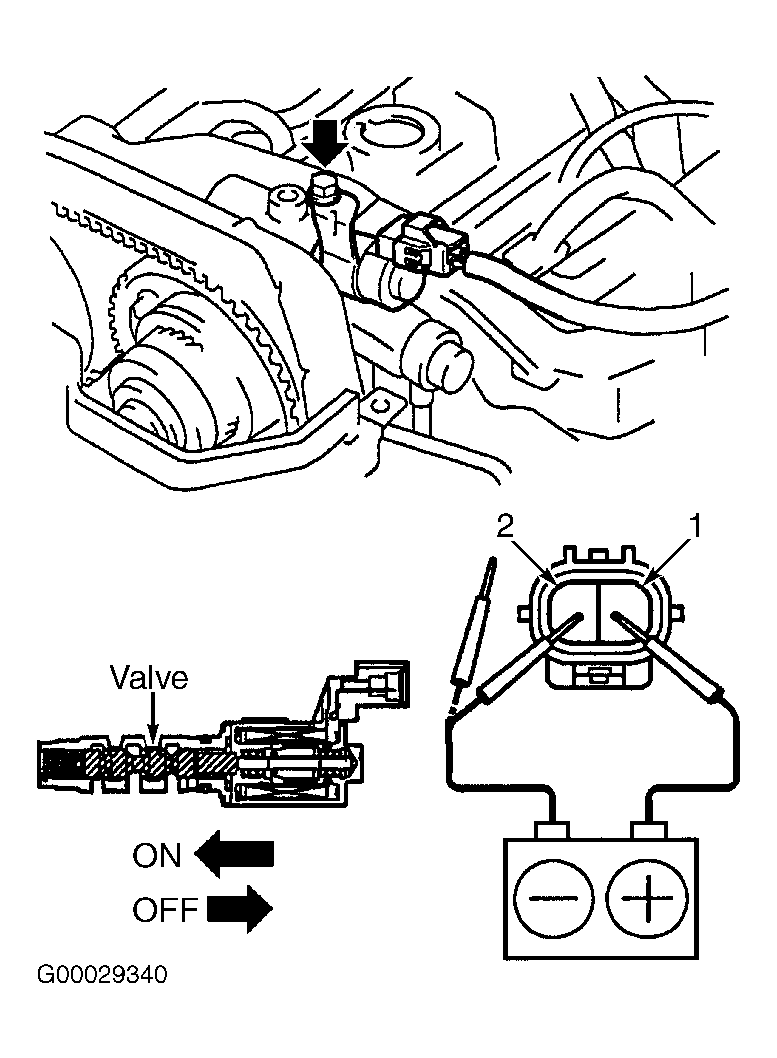

Fig 1: Locating & Testing Oil Control Valve (GS300 & IS300)
G00029340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
