Wheel Bearing Checking
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2000 Toyota Sienna, 2000 Toyota RAV4, 2000 Toyota ECHO, 2000 Toyota Corolla, and 2000 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Wheel bearings are not adjustable. Whenever bearings are removed, replace with NEW bearings, races and oil seals.
- Remove front wheel. Remove brake caliper and disc. Support caliper out of way. Using dial indicator placed near center of axle hub, check backlash by moving hub in bearing shaft direction. If backlash exceeds .002" (.05 mm), replace bearing.

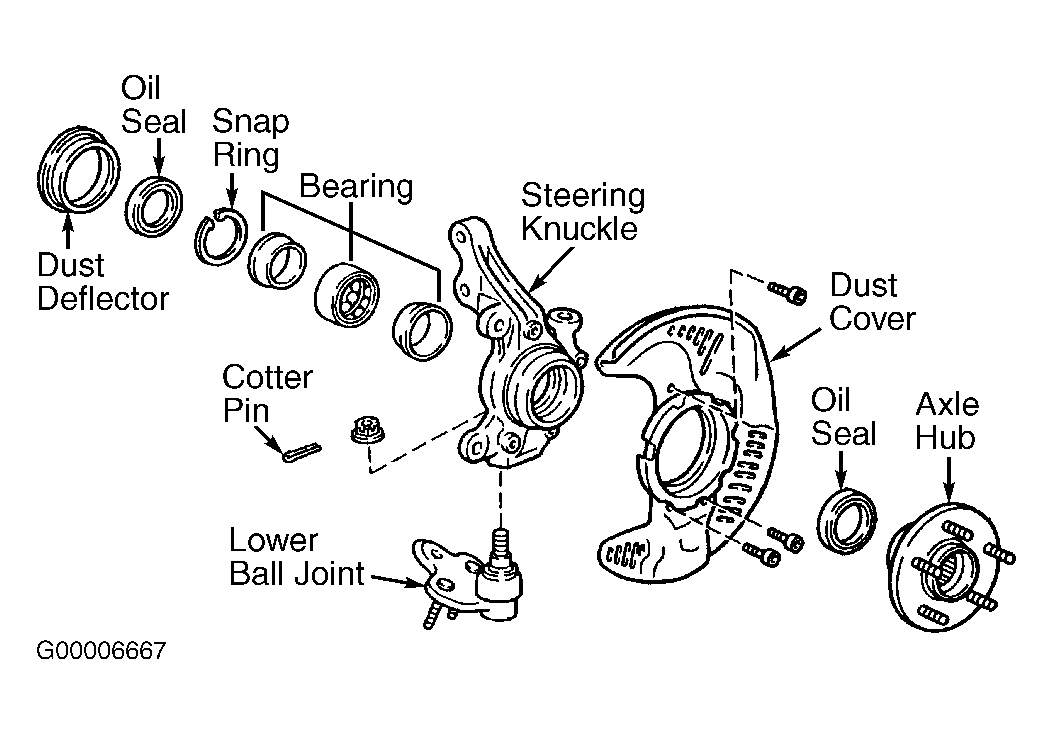

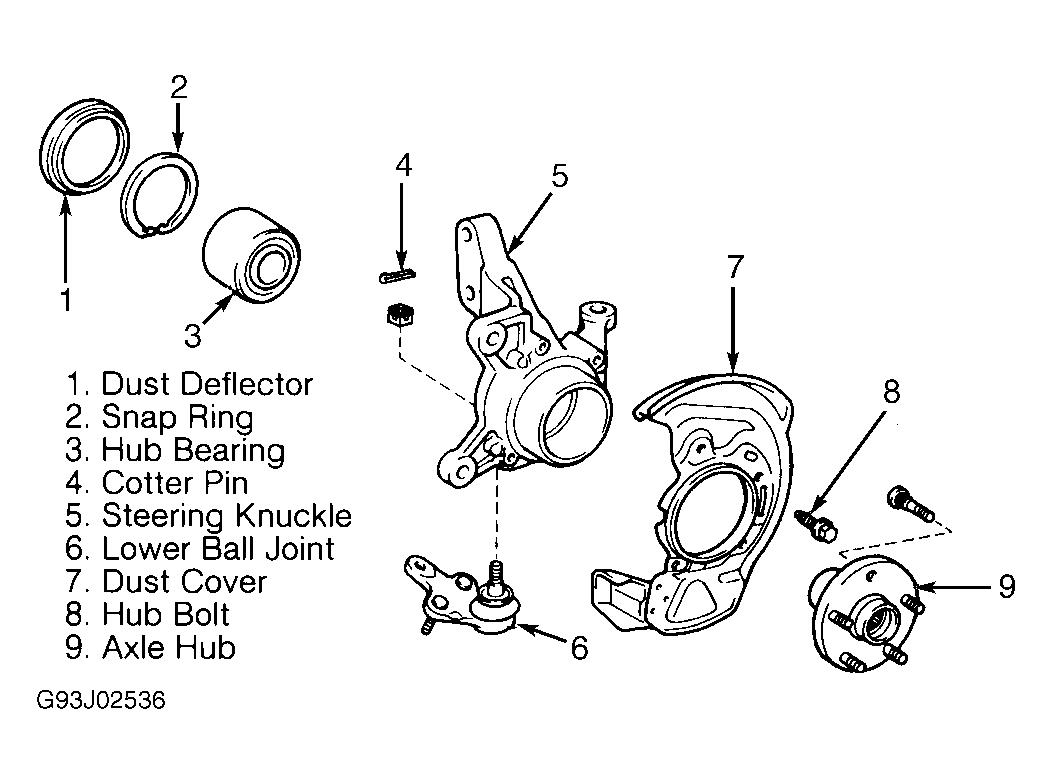

- Check deviation at axle hub surface, outside of hub bolt by moving hub with twisting motion. If deviation is more than .002" (.05 mm), replace bearing. Reinstall disc, brake caliper and front wheel. See Fig 1 and Fig 2 .
