Pattern Select Switch Signal

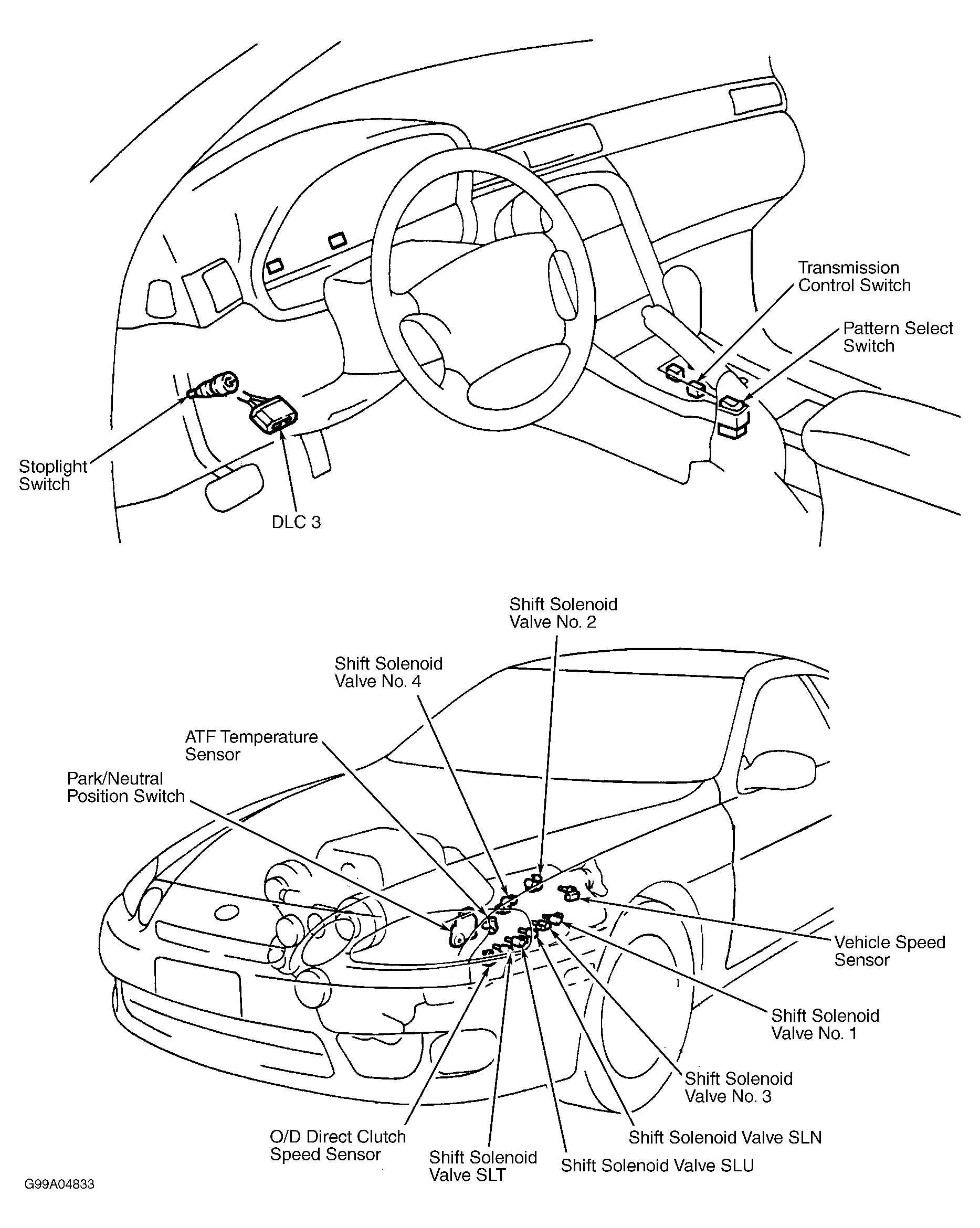

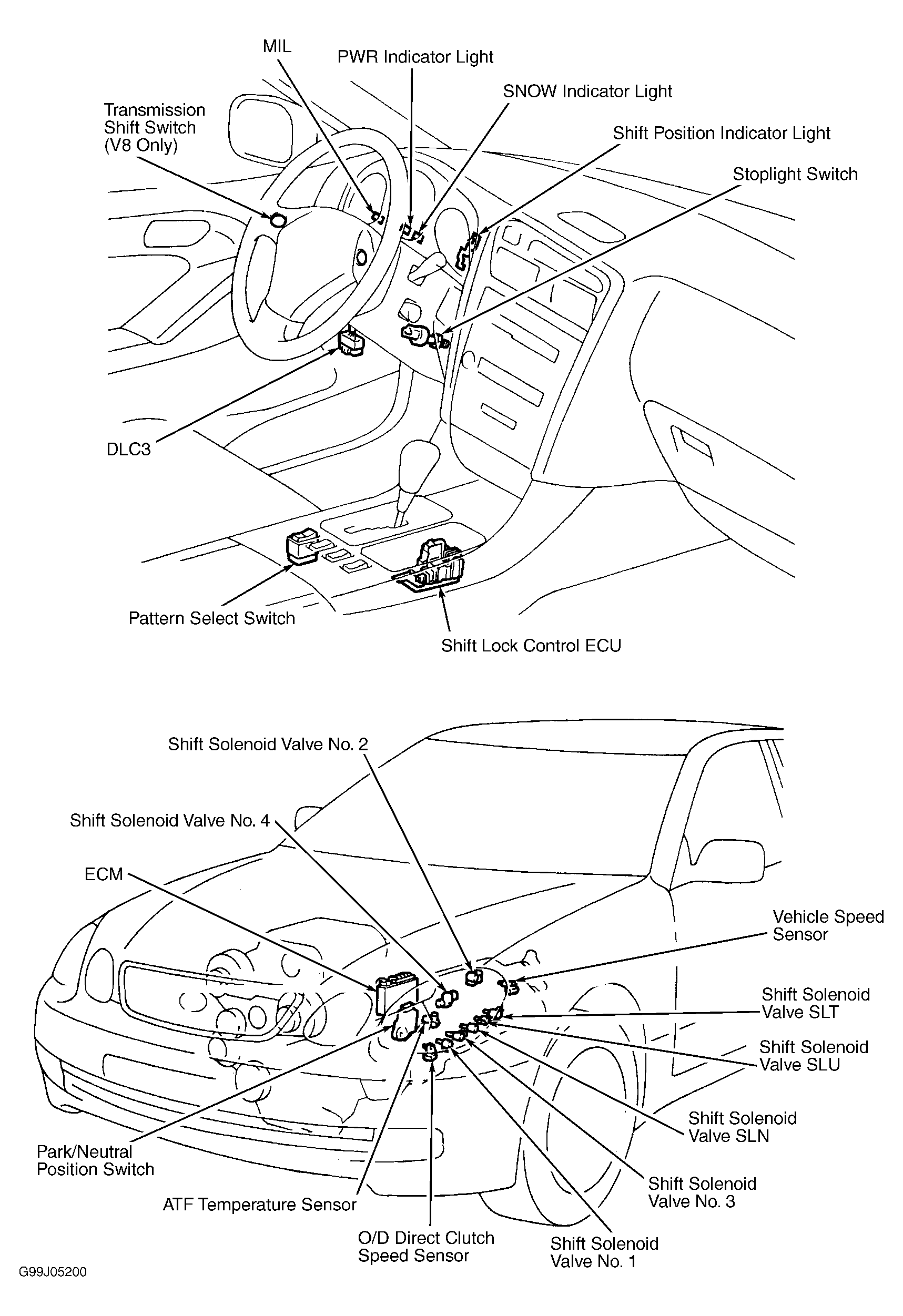

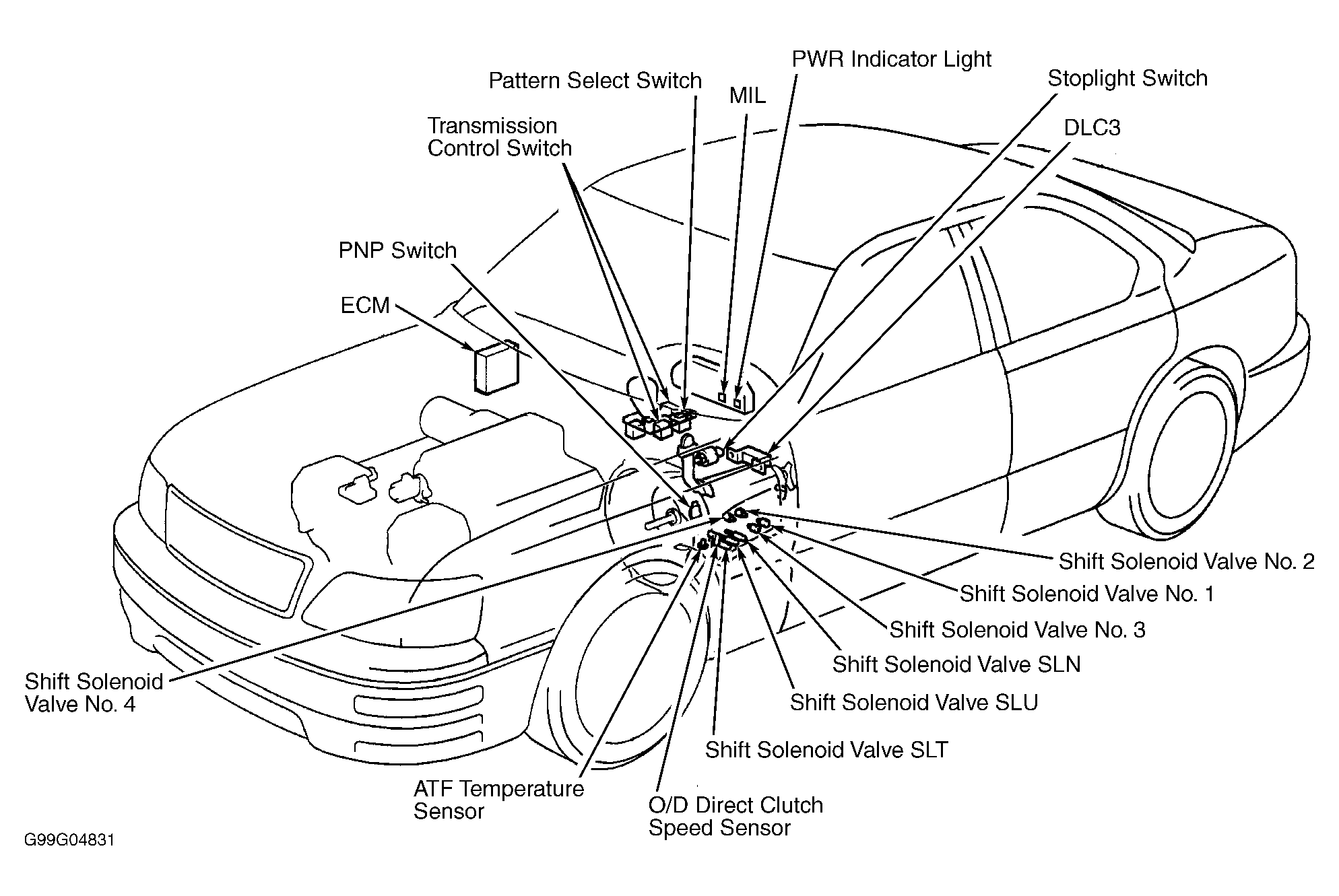

Pattern select switch delivers an input signal to ECM to indicate transmission shift points selected by vehicle operator. Pattern select switch is located near selector lever on center console. See Figure, Figure or Figure .
