Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

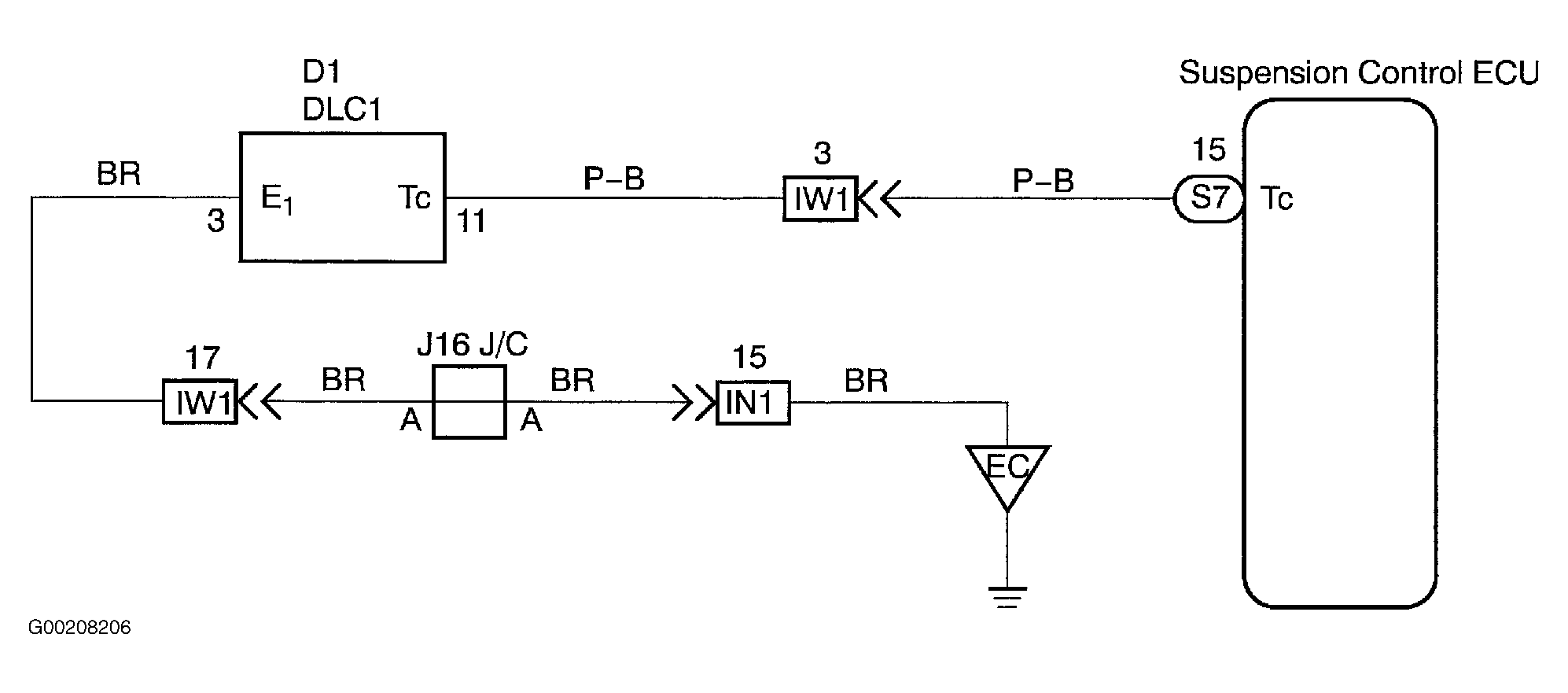

Fig 1: Wiring Tc Terminal Circuit
G00208206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

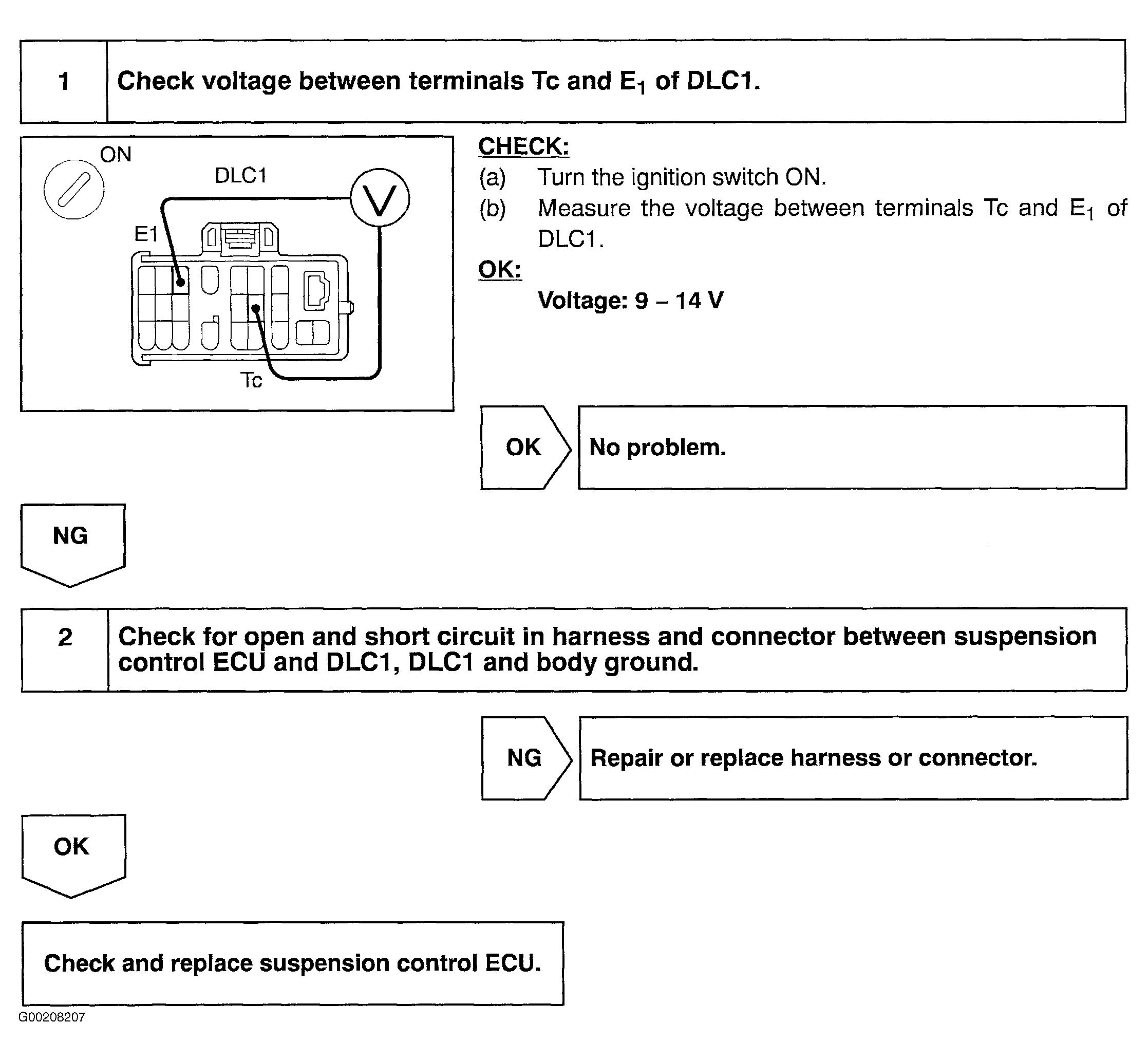

Fig 2: Testing Procedure Tc Terminal Circuit
G00208207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
