Function Of Components

To identify function of components, see Fig 1.

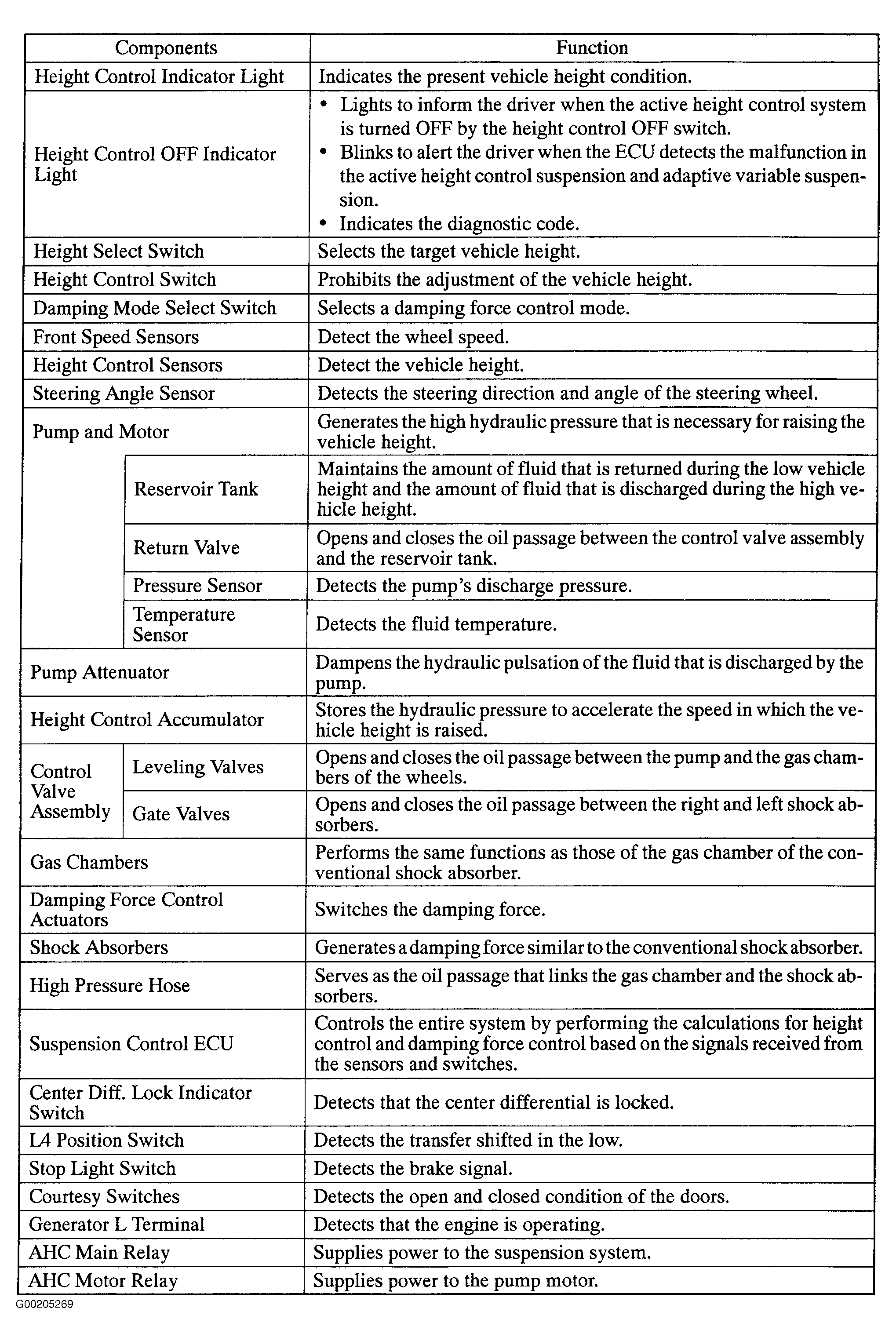

Fig 1: Identifying Function Of Components

G00205269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
