Diagnostic Tester - Reset Memory Function (EG003-98)

Publication date: 1998-12-25
Reference number: EG003-98

DIAGNOSTIC TESTER - RESET MEMORY FUNCTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): EG003-98, Date of Issue: December 25, 1998

LEXUS:	1999 ES 300, RX 300
GROUP:	Engine
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

RESET MEMORY FUNCTION

Diagnostic Tester Software beginning with Version 5.1a-1 provides a "Reset Memory" function which should be used to reset ECM Learned Values after Engine replacement or overhaul, and/or ECM replacement.

BULLETIN CONTENT

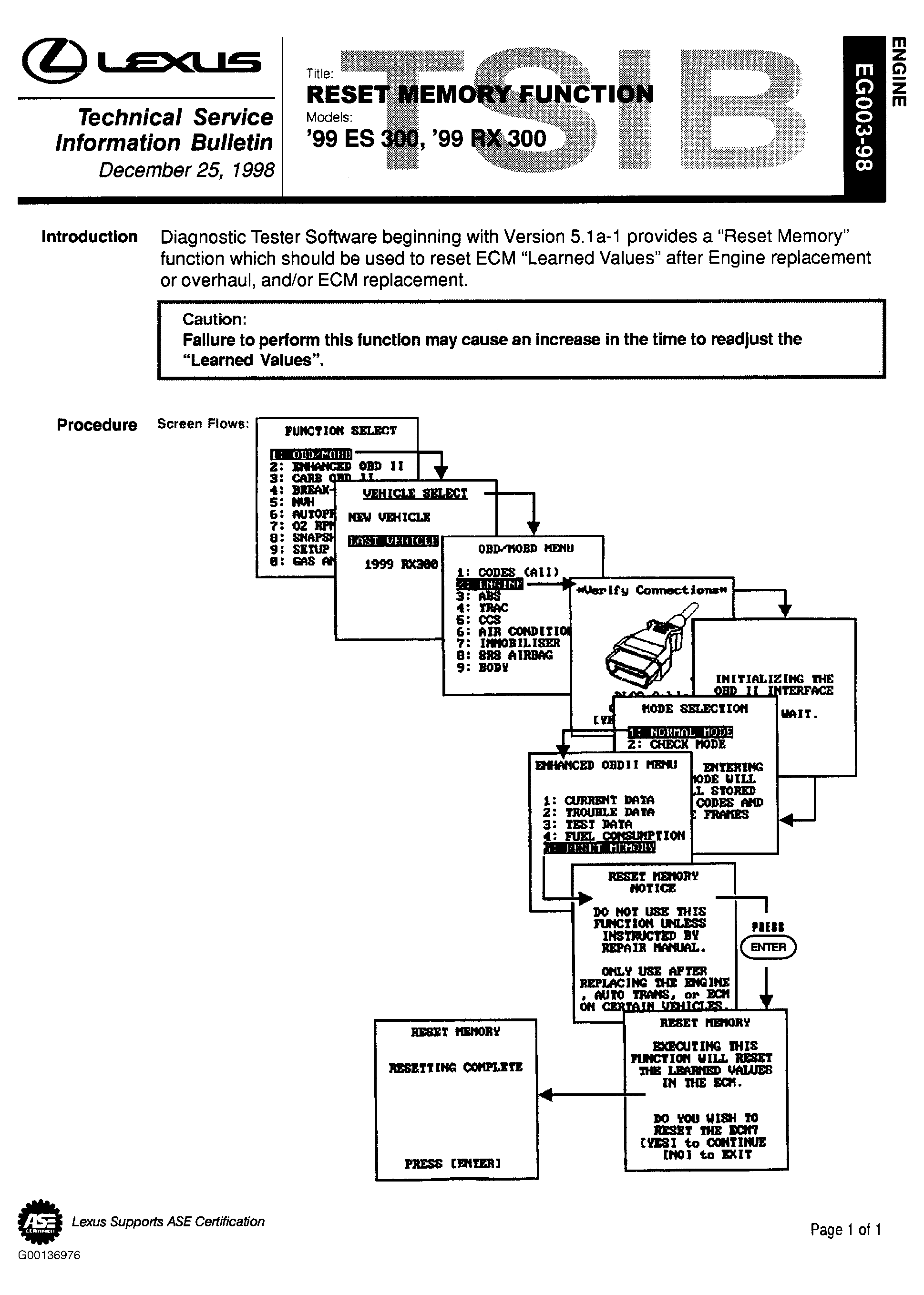

Fig 1: Page 1 of Bulletin
