Steering Gear: Notes

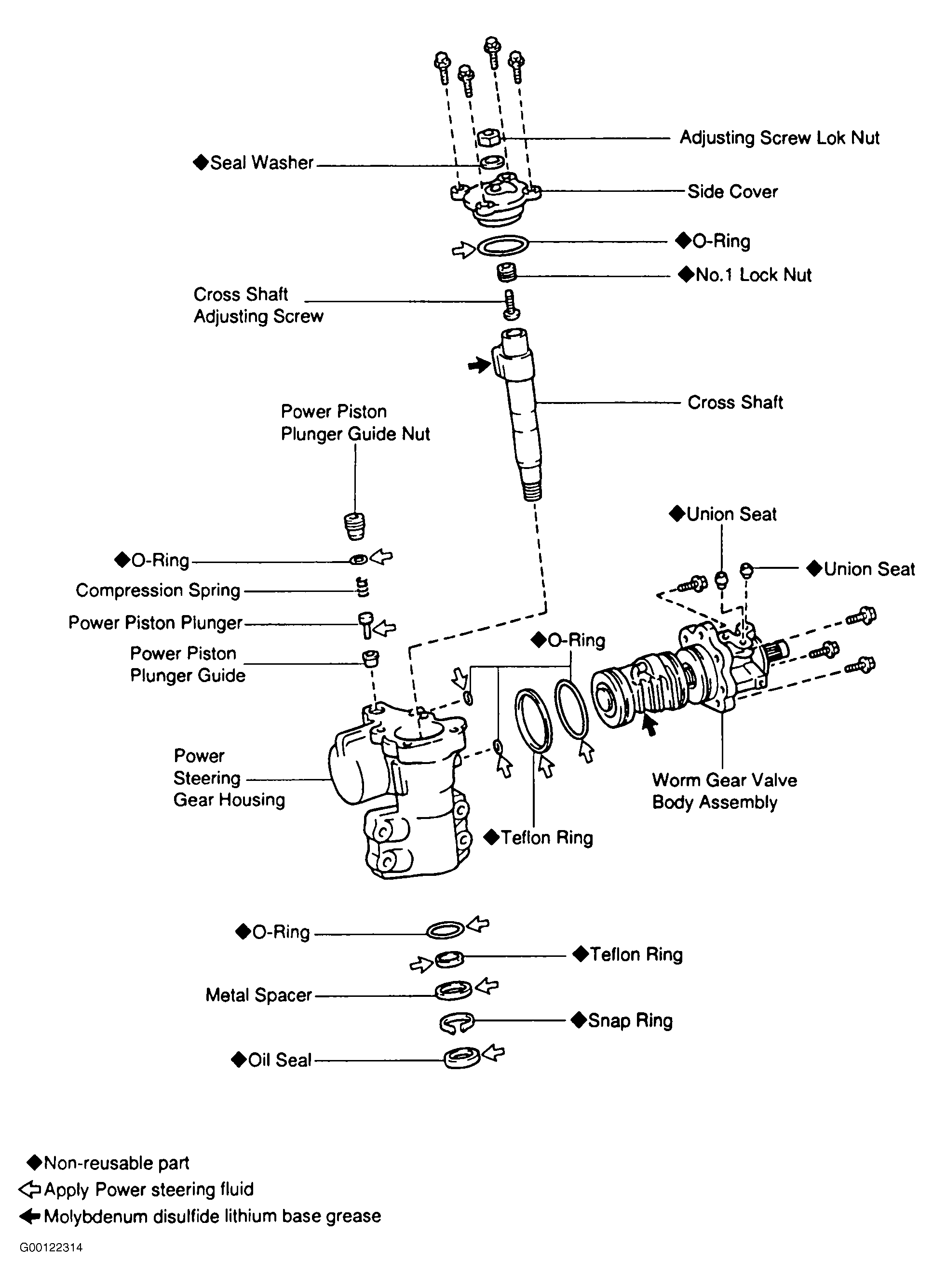

Fig 1: Exploded View Of Power Steering Gear

G00122314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
