Charging System - Alternator & Regulator: Overhaul: Reassembly

To assemble, reverse disassembly procedure. Use generator Pulley Set Nut Wrench Set (SST 09820-63010 ) to install generator pulley. Place SST "C" securely into a vise. Install SST "A" and "B" and generator into SST "C". See Fig 1. Tighten pulley nut to 81 ft. lbs. (110 N.m) in the opposite direction of disassembly. See Fig 1. After completing assembly, verify rotor turns smoothly.

Fig 1: Removing Generator Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: See Fig 2-7 for exploded views of generators.

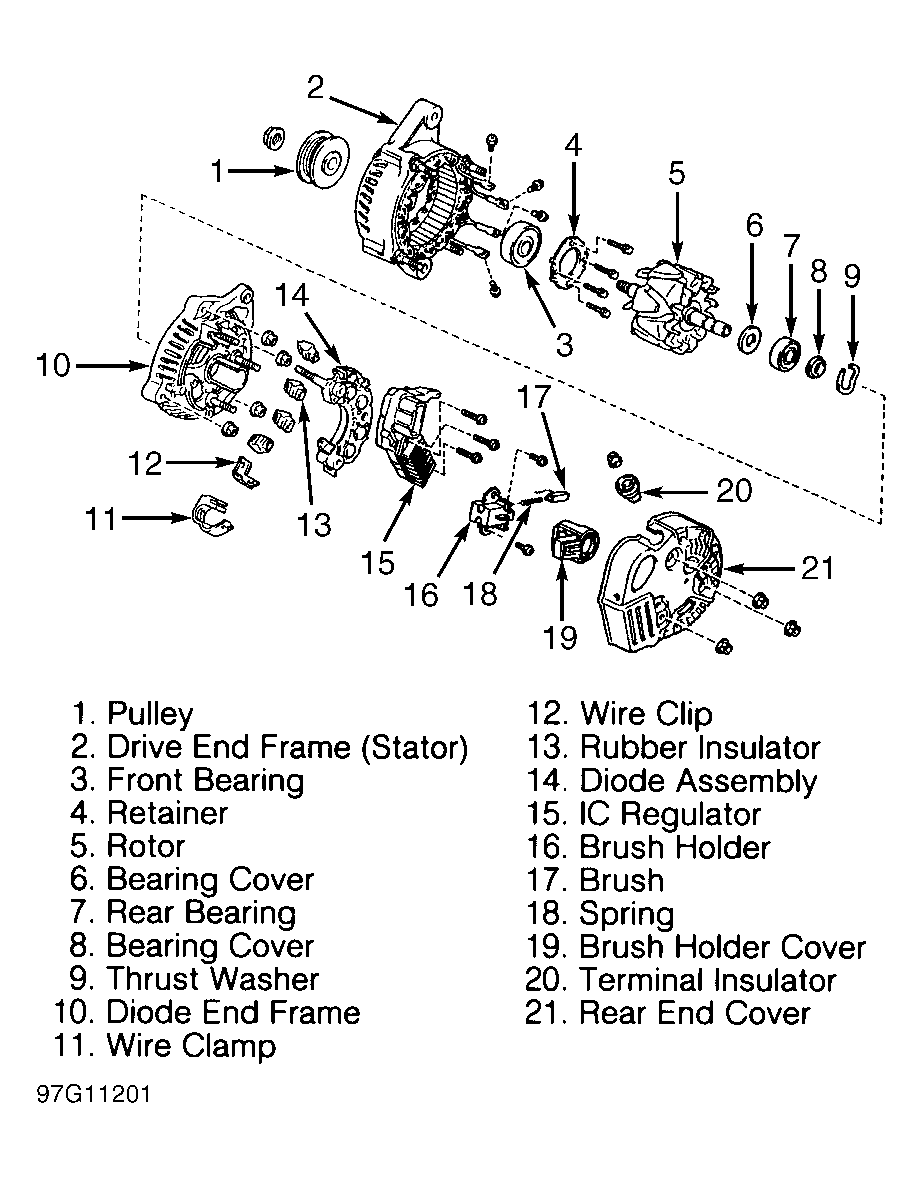

Fig 2: Exploded View Of Generator (A/T - Typical)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

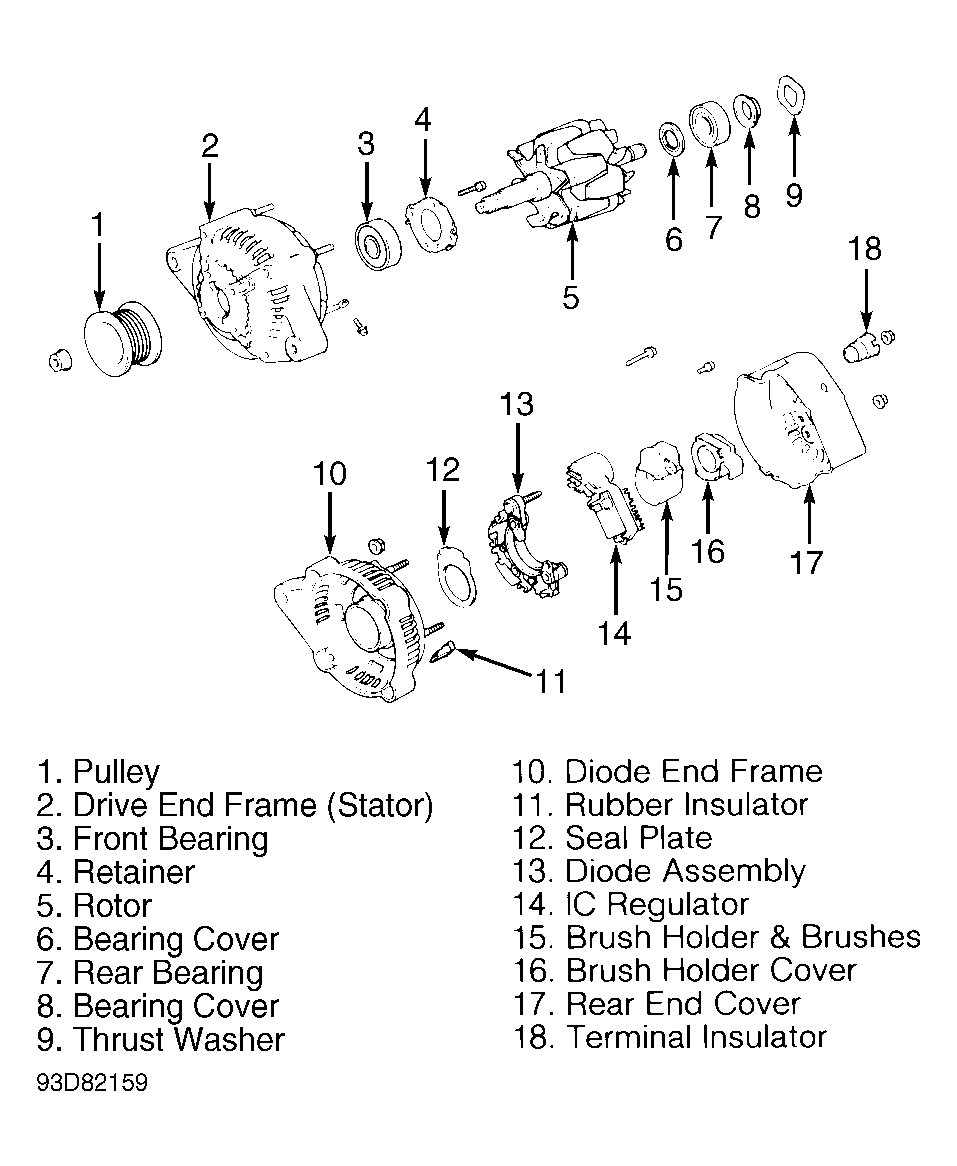

Fig 3: Exploded View Of Generator (M/T - Typical)

Fig 4: Exploded View Of Generator (A/T - Typical)

Fig 5: Exploded View Of Generator (M/T - Typical)
