TRAC Indicator Light Circuit

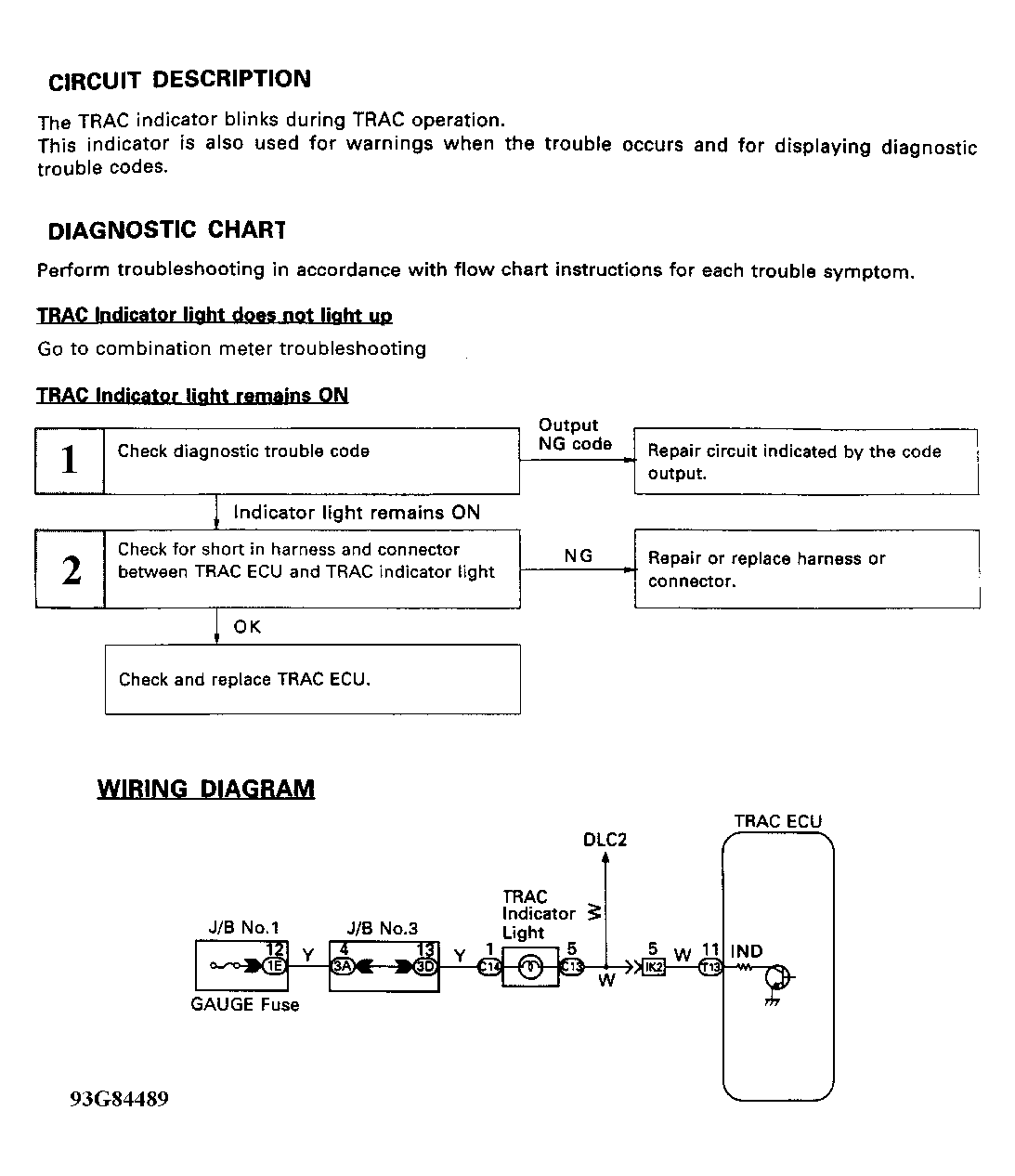

Fig 1: TRAC Indicator Light Circuit

G93G84489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
