DTC 51 - Engine Malfunction Detection Circuit

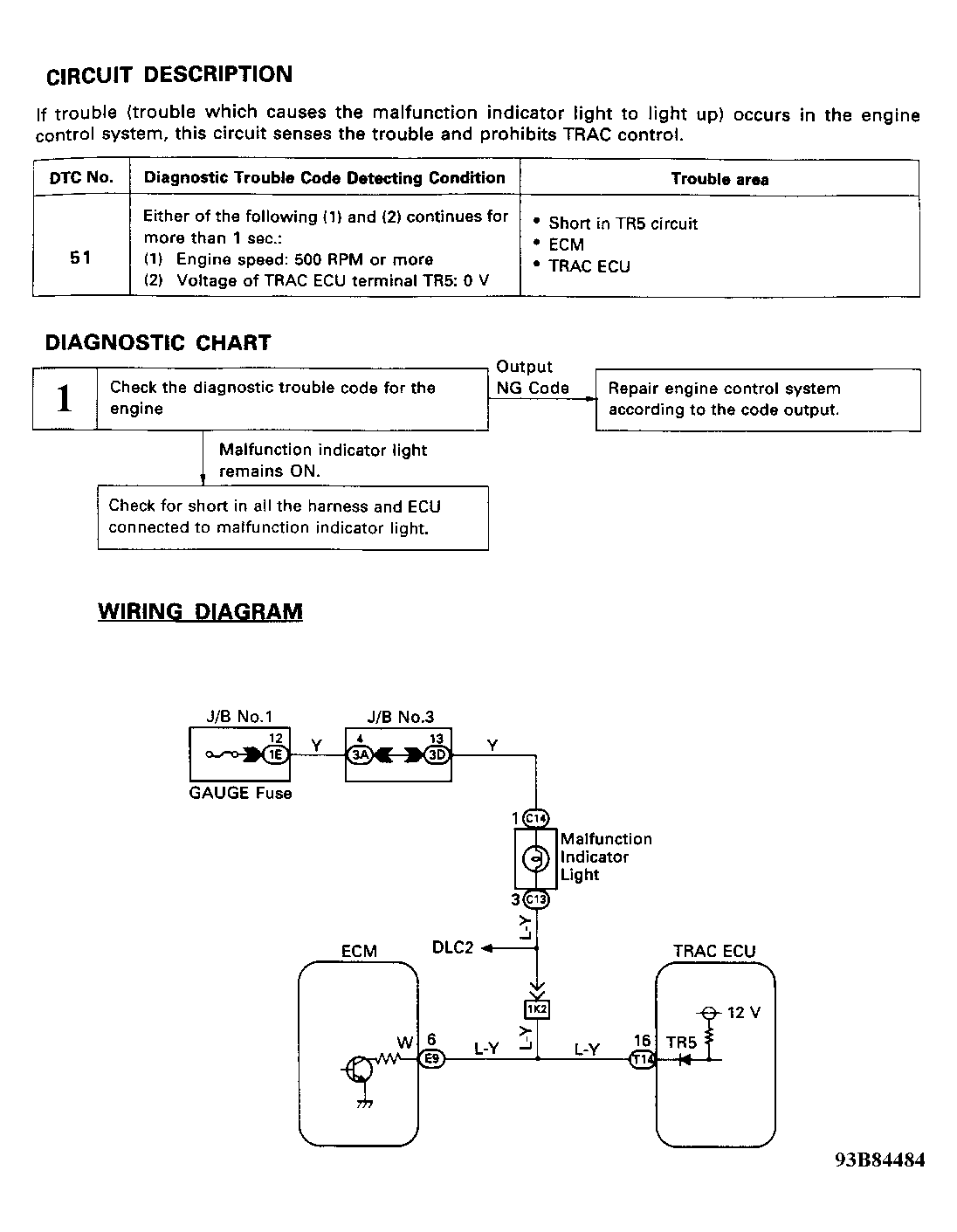

Fig 1: Engine Malfunction Detection Circuit

G93B84484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
