DTC 47 & 48 - Sub-Throttle Position Sensor Circuit

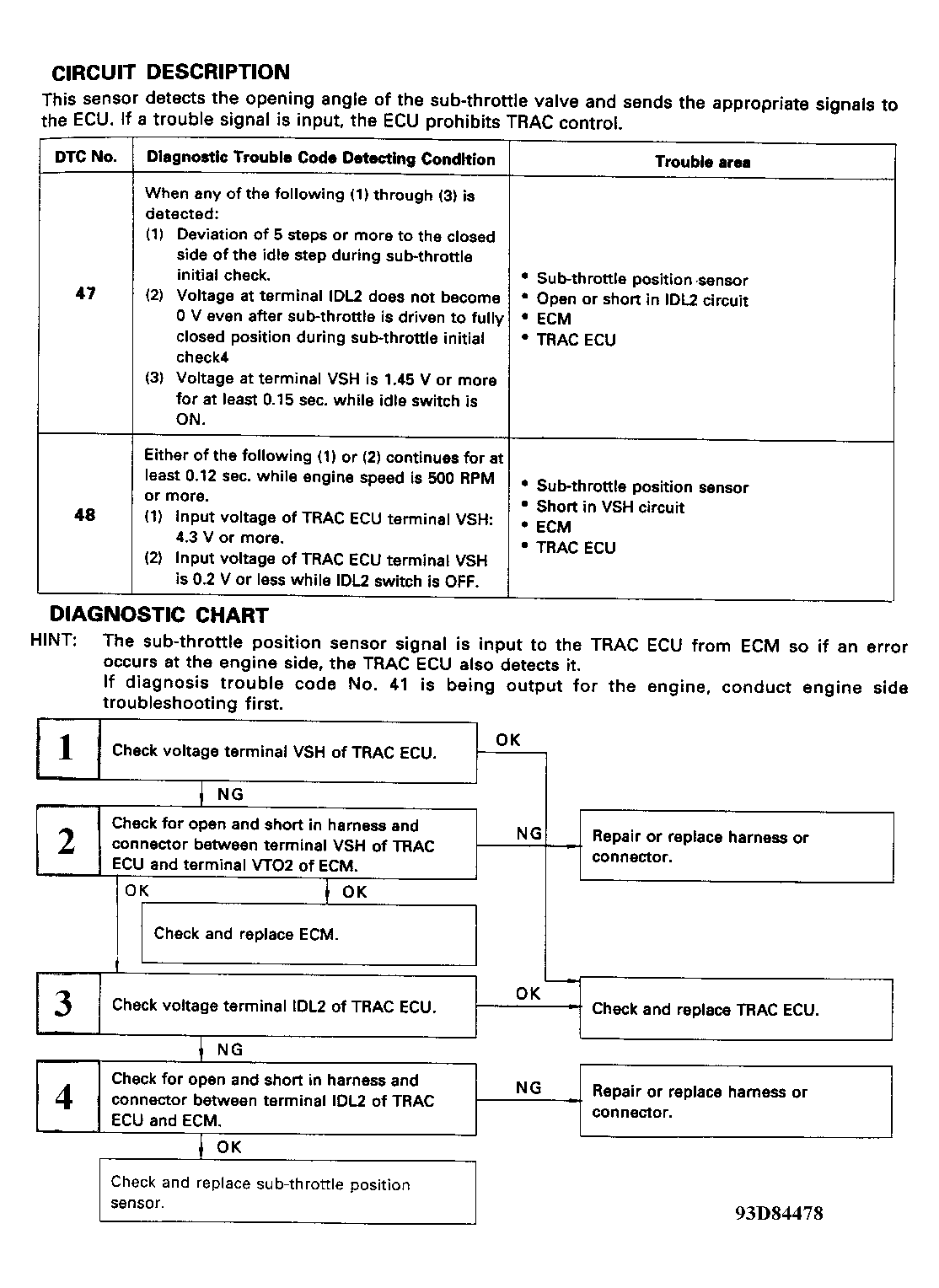

Fig 1: Sub-throttle Position Sensor Circuit (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

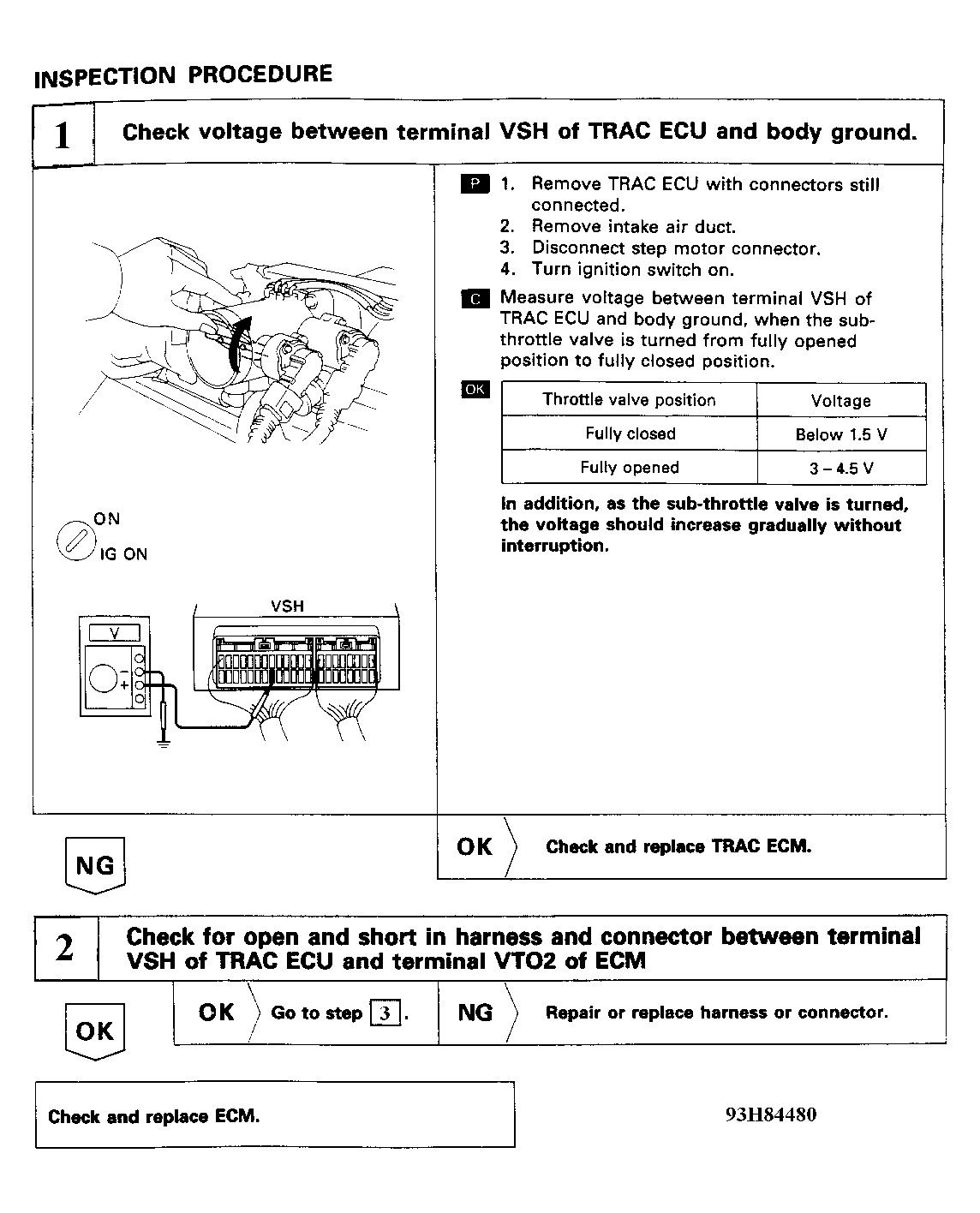

Fig 2: Sub-throttle Position Sensor Circuit (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

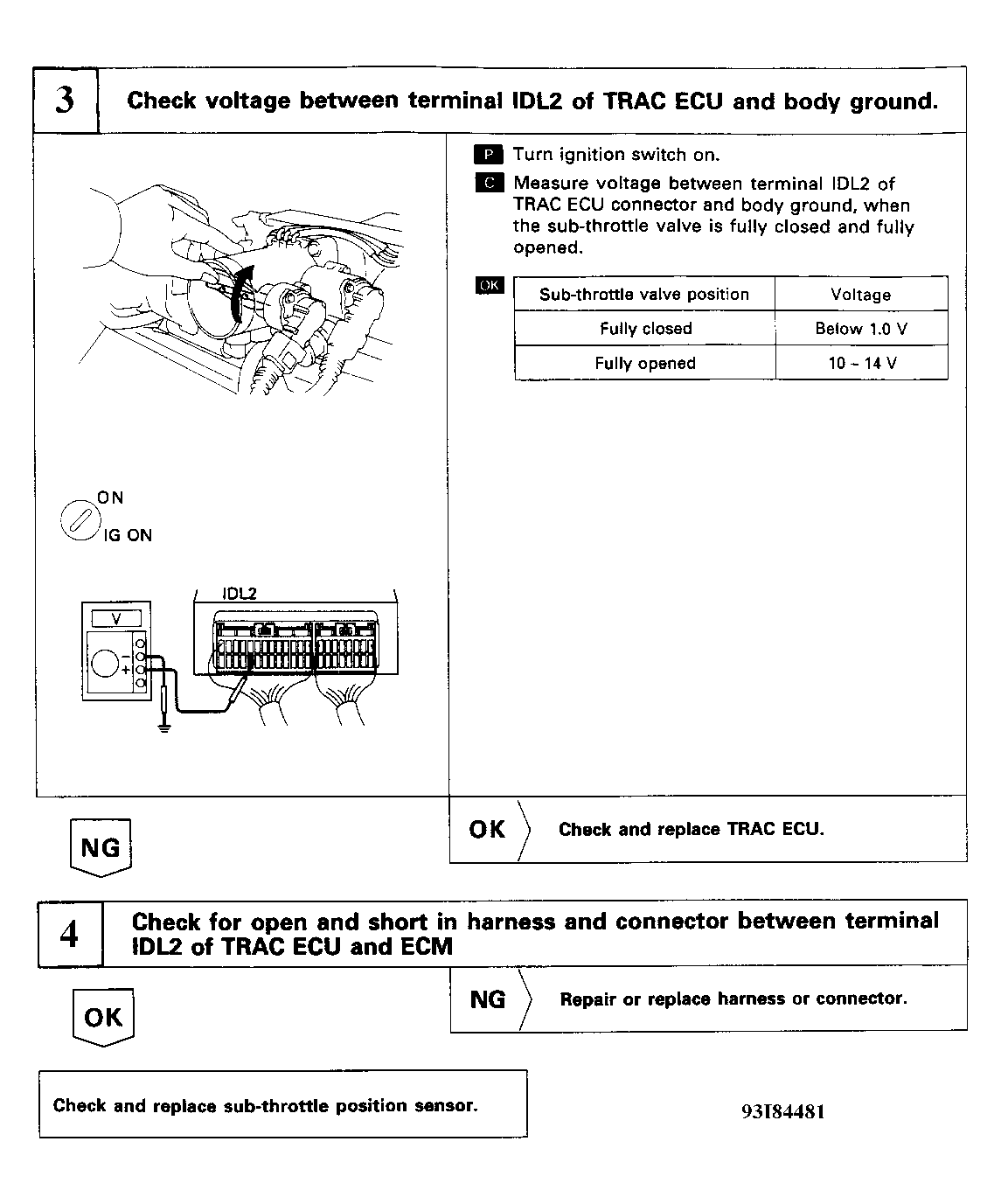

Fig 3: Sub-throttle Position Sensor Circuit (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Sub-throttle Position Sensor Circuit (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
