Code 61 - TRAC Ecu Communication Circuit Malfunction

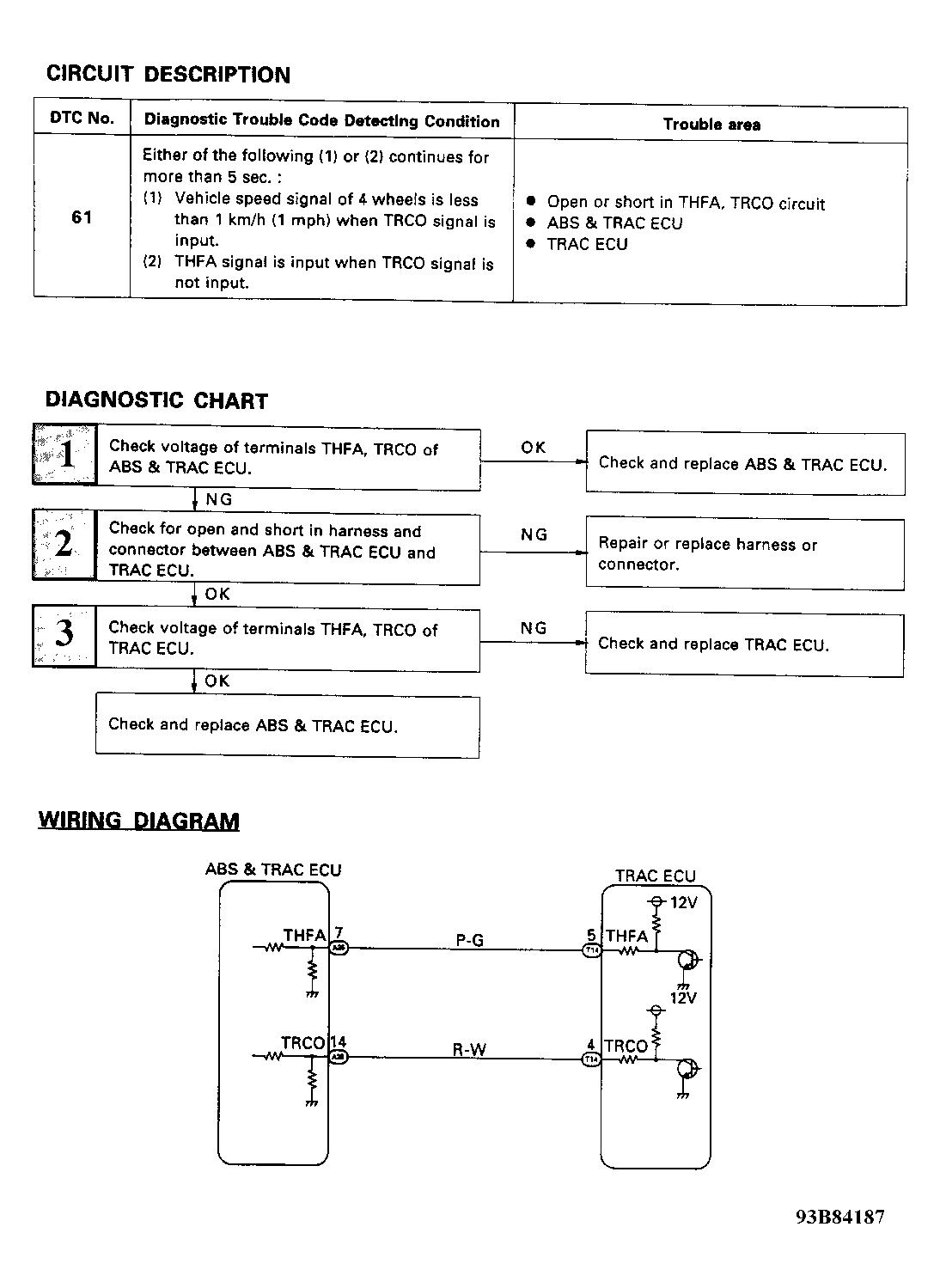

Fig 1: Code 61 - TRAC ECU Communication Circ. Malfunction (1 of 2)
G93B84187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

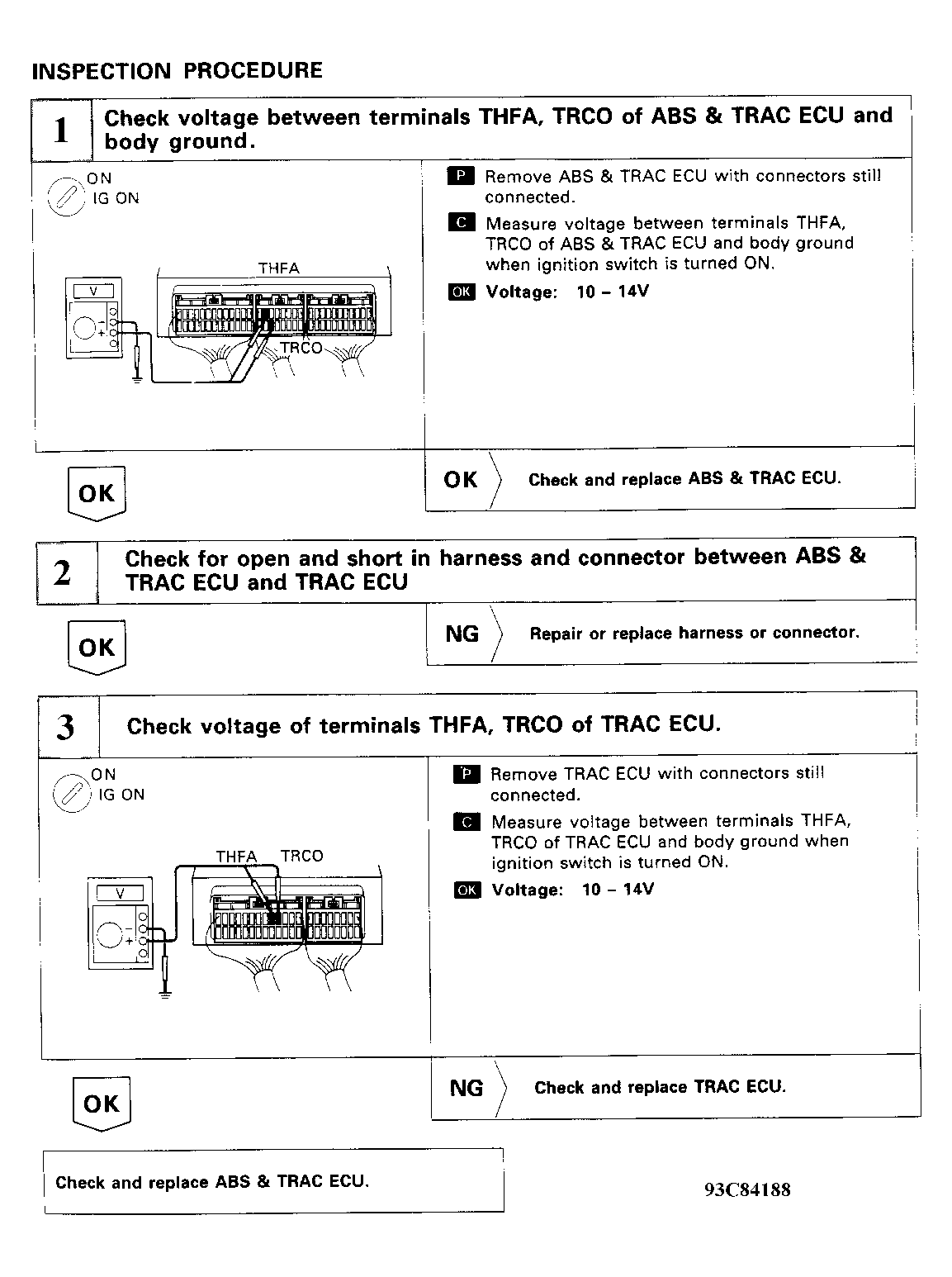

Fig 2: Code 61 - TRAC ECU Communication Circ. Malfunction (2 of 2)
G93C84188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
