Code 48 - Secondary Air Injection Malfunction (CALIF)

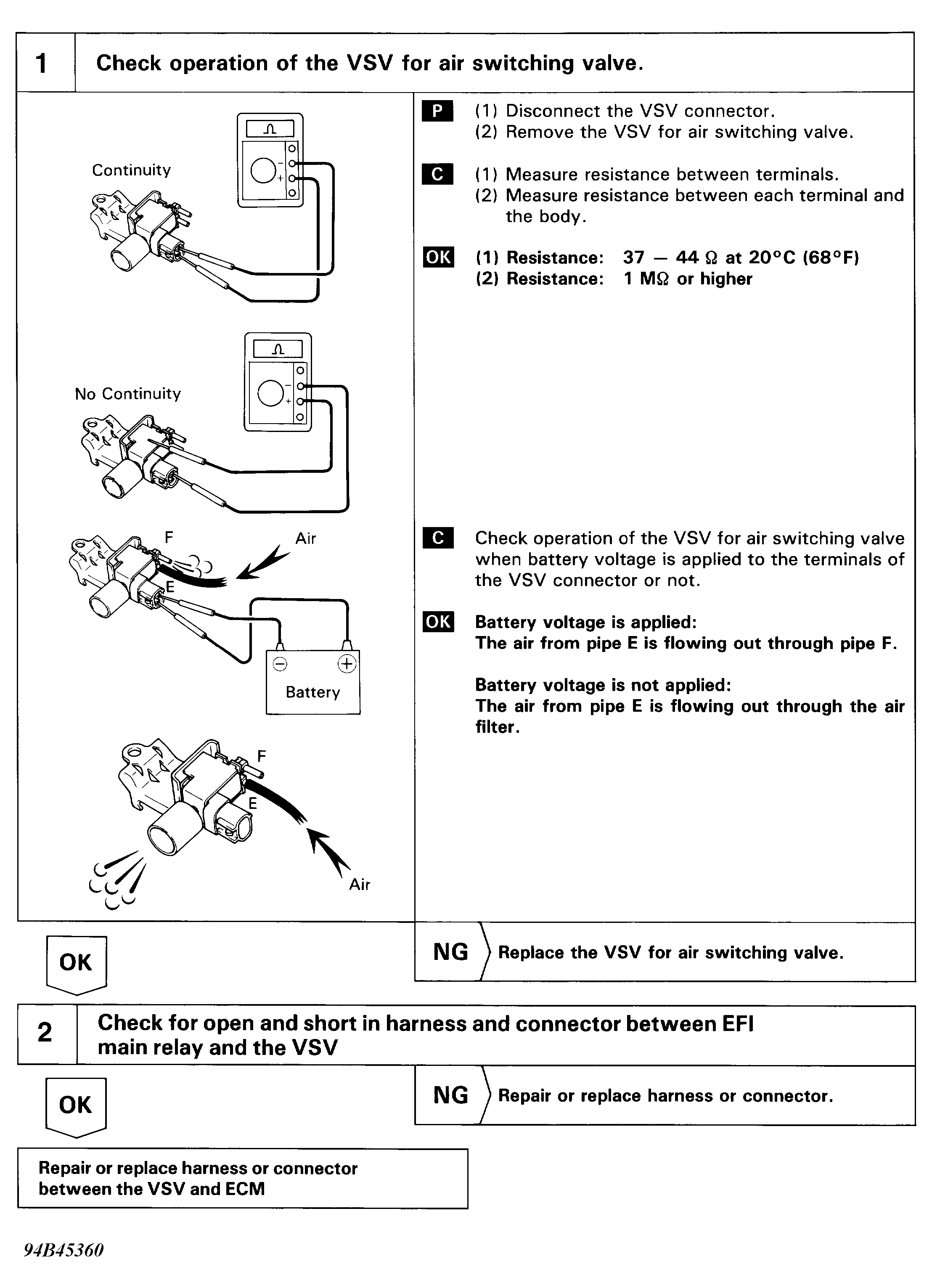

Fig 1: Code 48 Flow Chart (LS400) Secondary Air Injection Malfunction

G94B45360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
