Test 11 - Rear Door Unlock Detection Switch Circuit

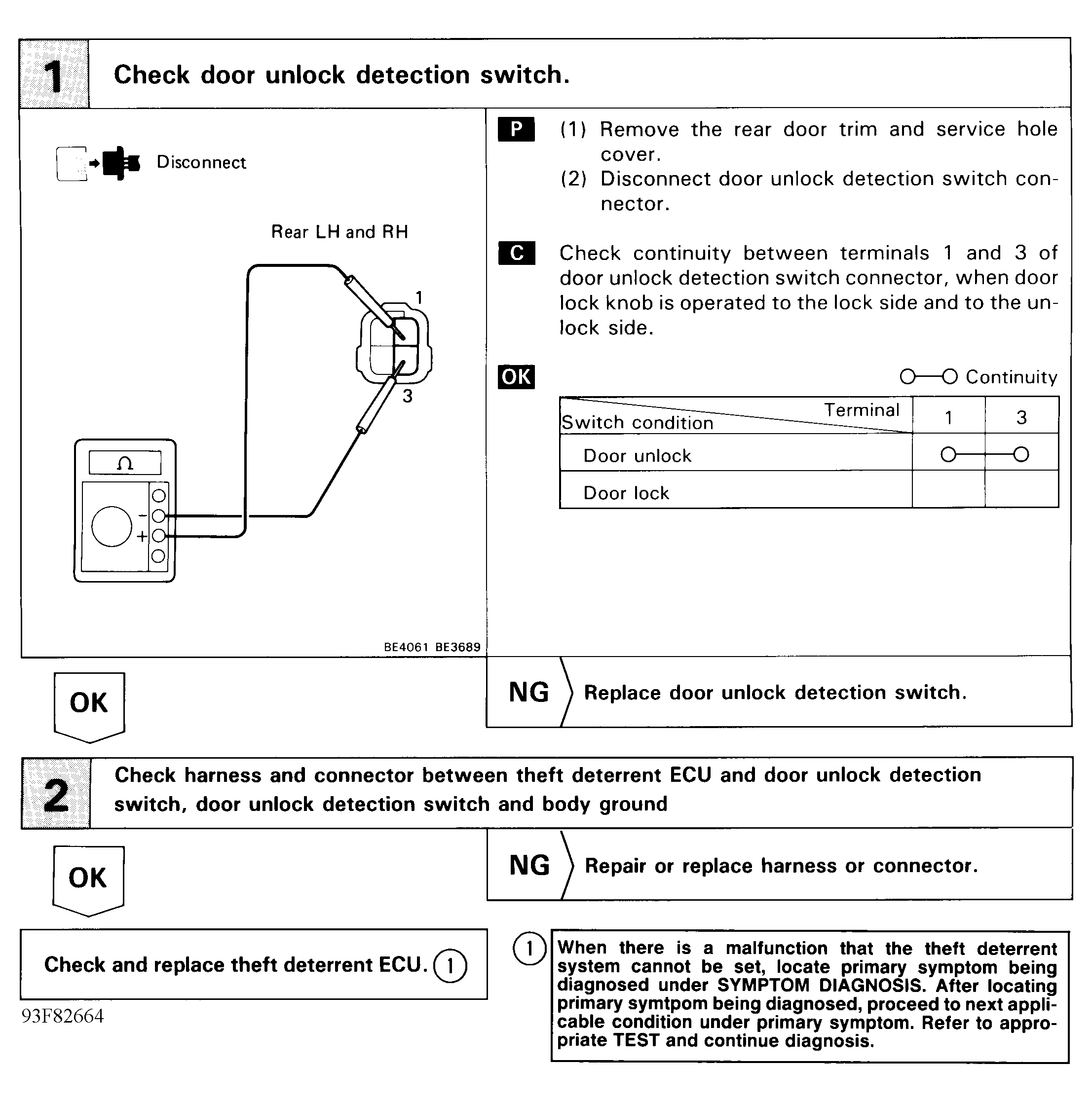

Fig 1: Test 11 - Rear Door Unlock Detection Switch Circuit

G93F82664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
