DTC 49 - Engine Communication Circuit

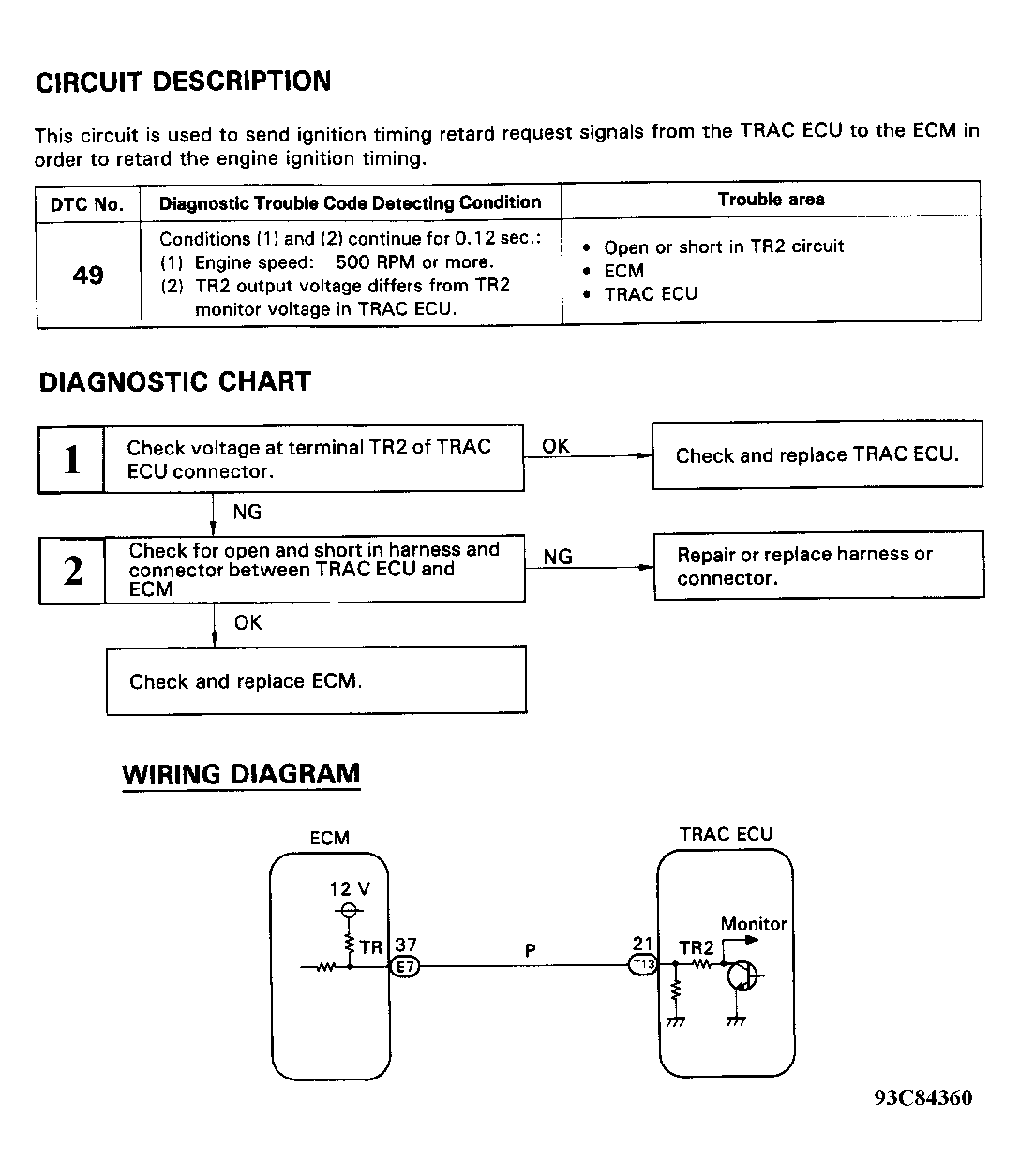

Fig 1: Engine Communication Circuit (1 OF 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

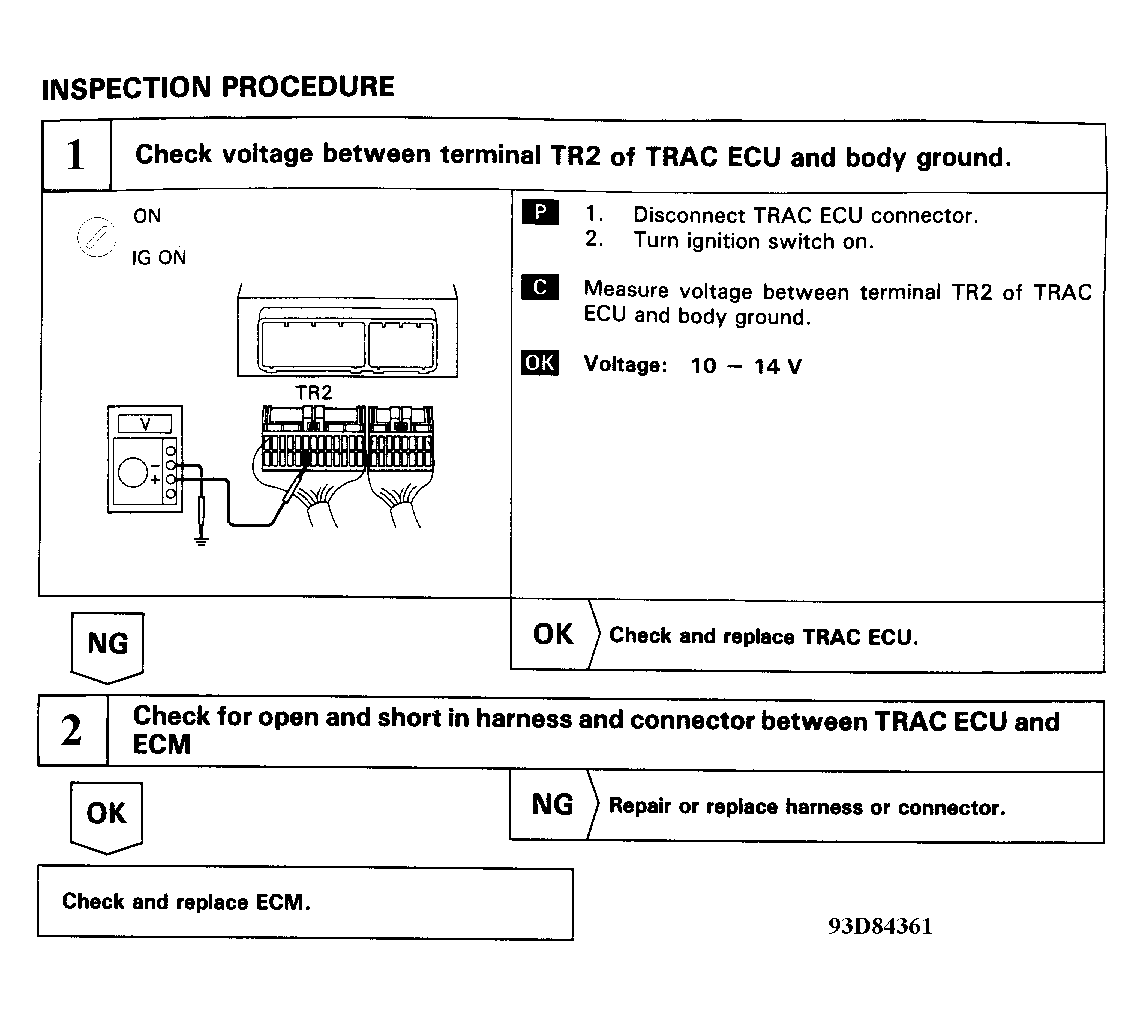

Fig 2: Engine Communication Circuit (2 OF 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
