Driver's Seat

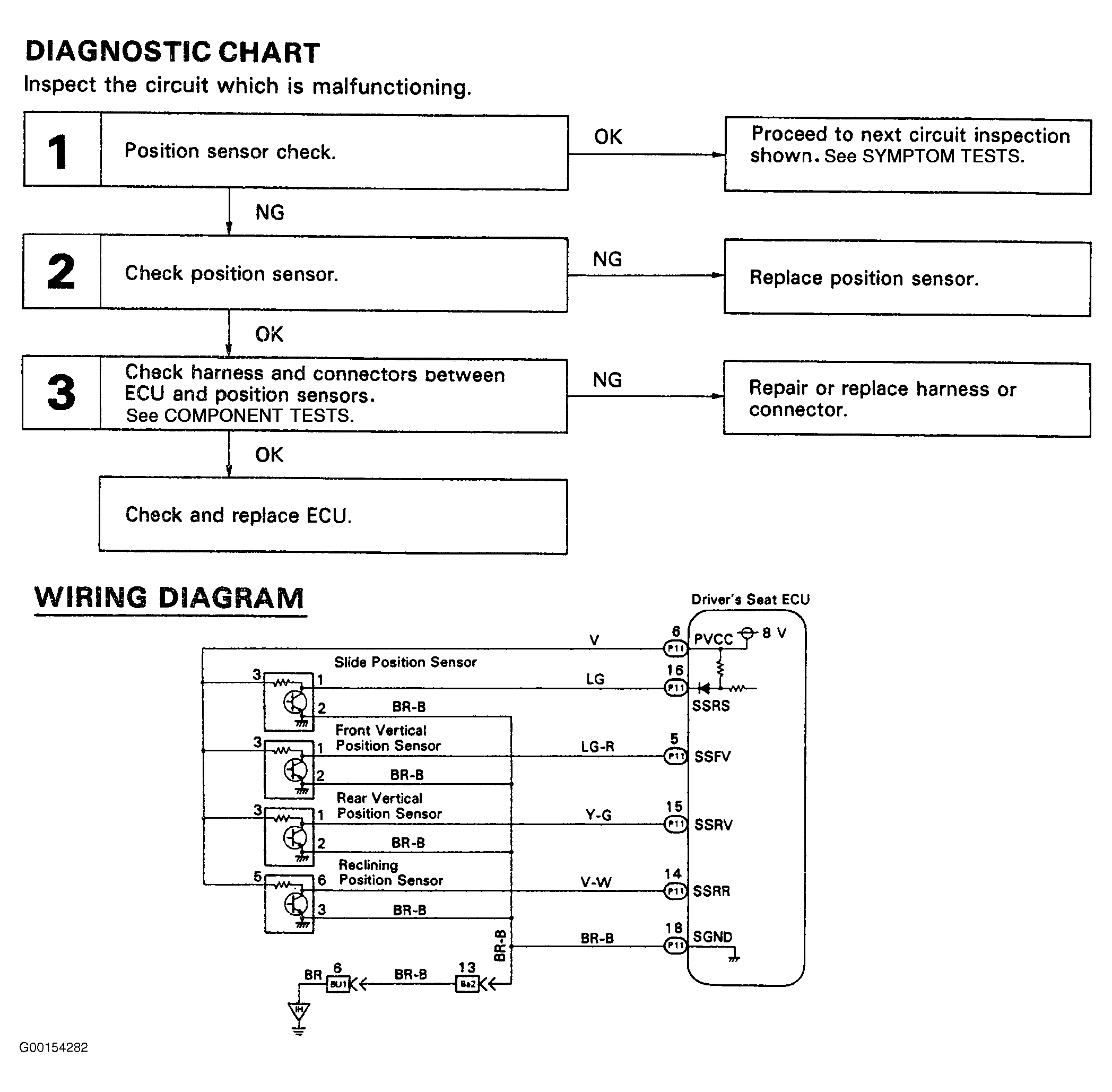

Fig 1: Test G: Position Sensor Circuit (Driver's Seat - 1 Of 4)
G00154282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

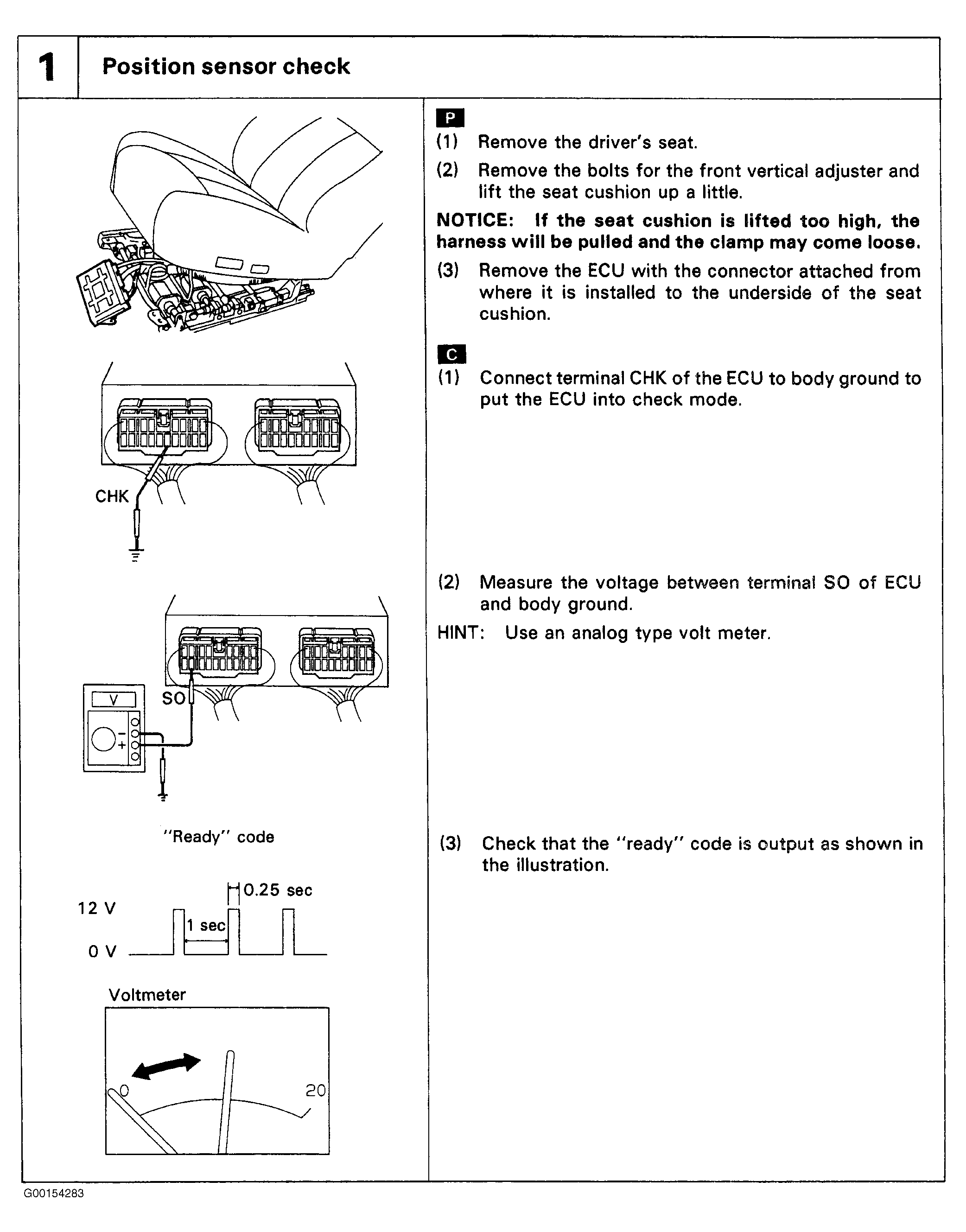

Fig 2: Test G: Position Sensor Circuit (Driver's Seat - 2 Of 4)
G00154283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

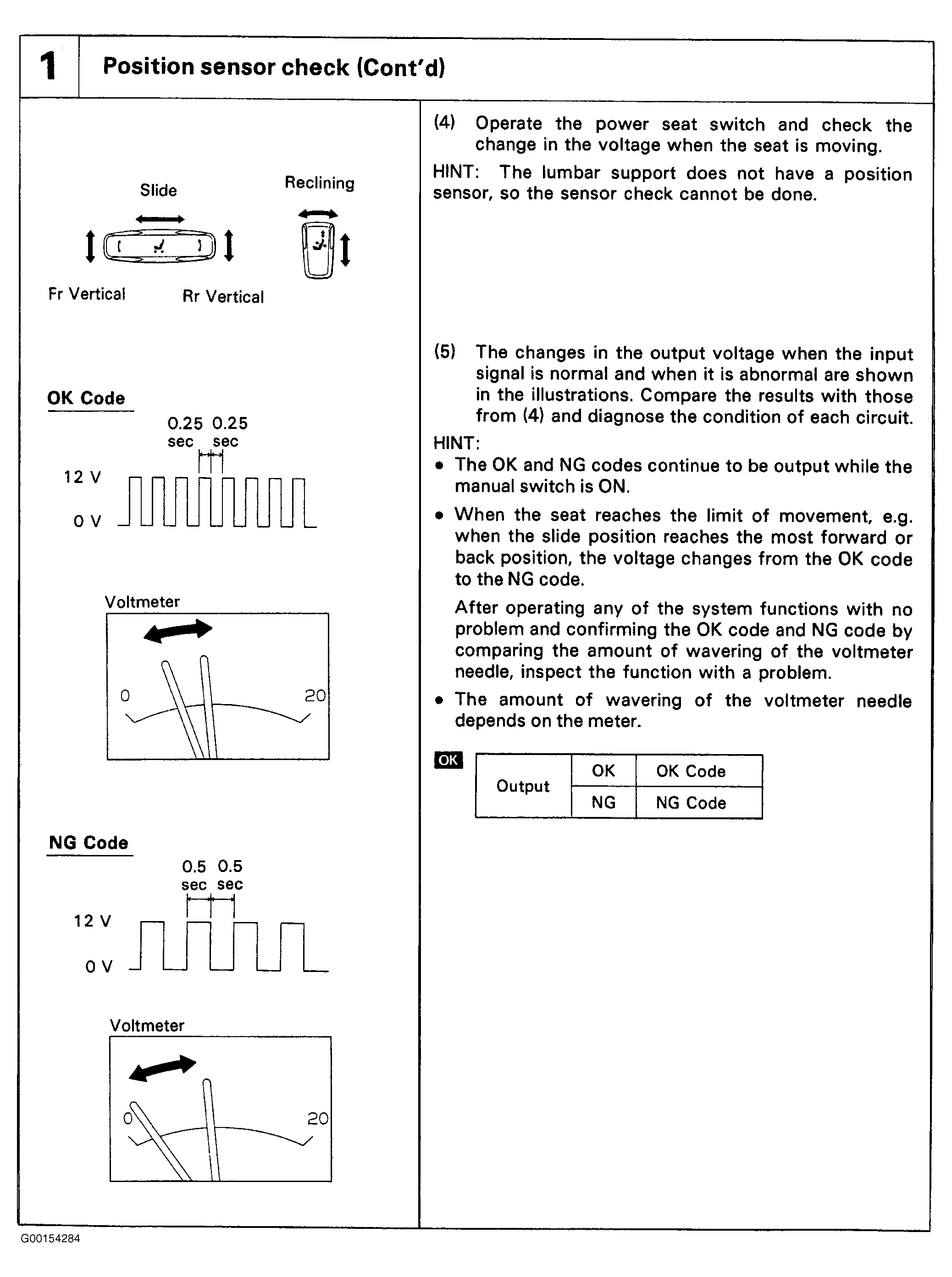

Fig 3: Test G: Position Sensor Circuit (Driver's Seat - 3 Of 4)
G00154284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

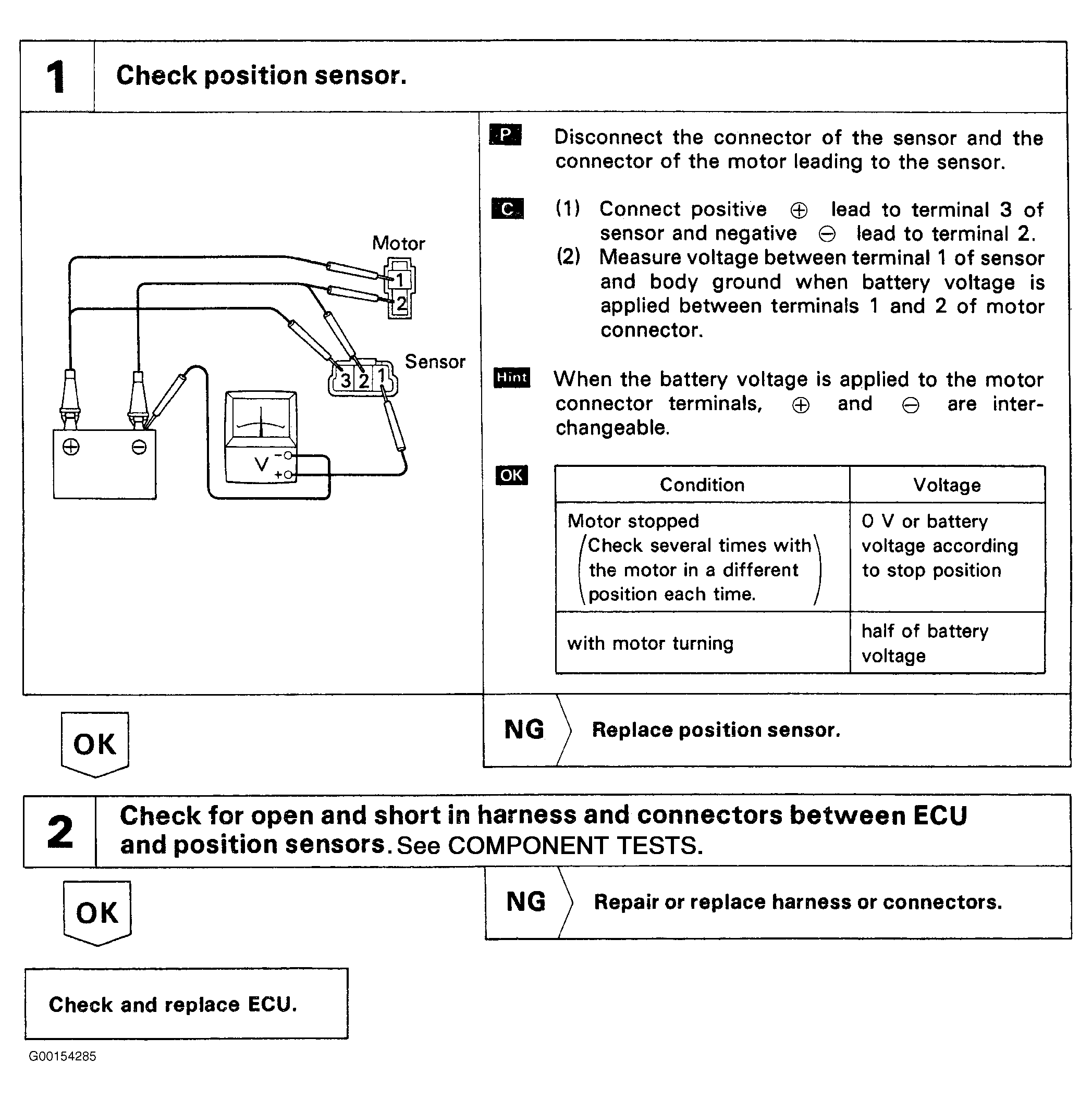

Fig 4: Test G: Position Sensor Circuit (Driver's Seat - 4 Of 4)
G00154285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
