Driver's Seat

NOTE: This circuit provides power for ECU operation and is also the power source for the sensors.

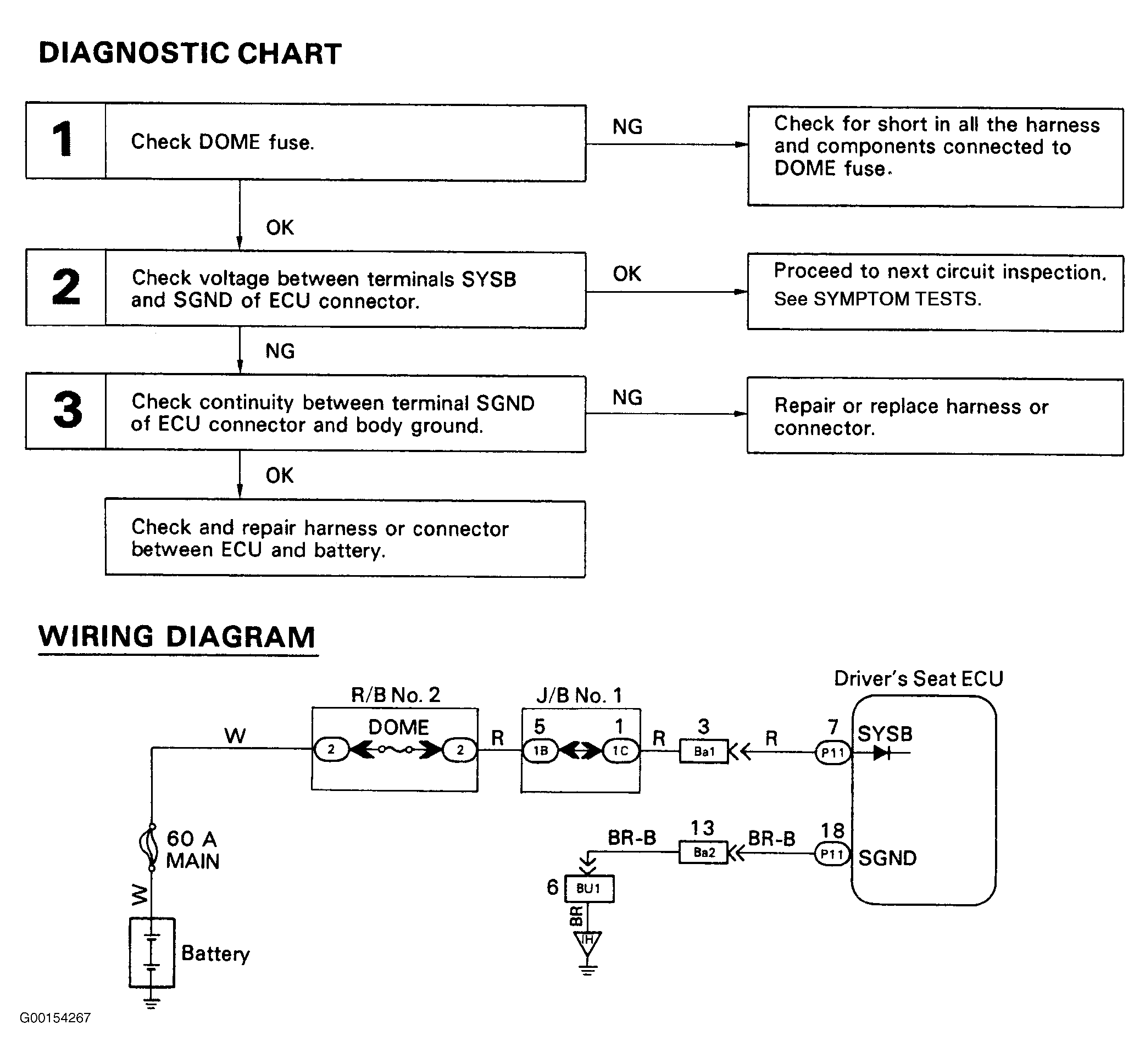

Fig 1: Test B: ECU Power Source Circuit (Driver's Seat - 1 Of 2)
G00154267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

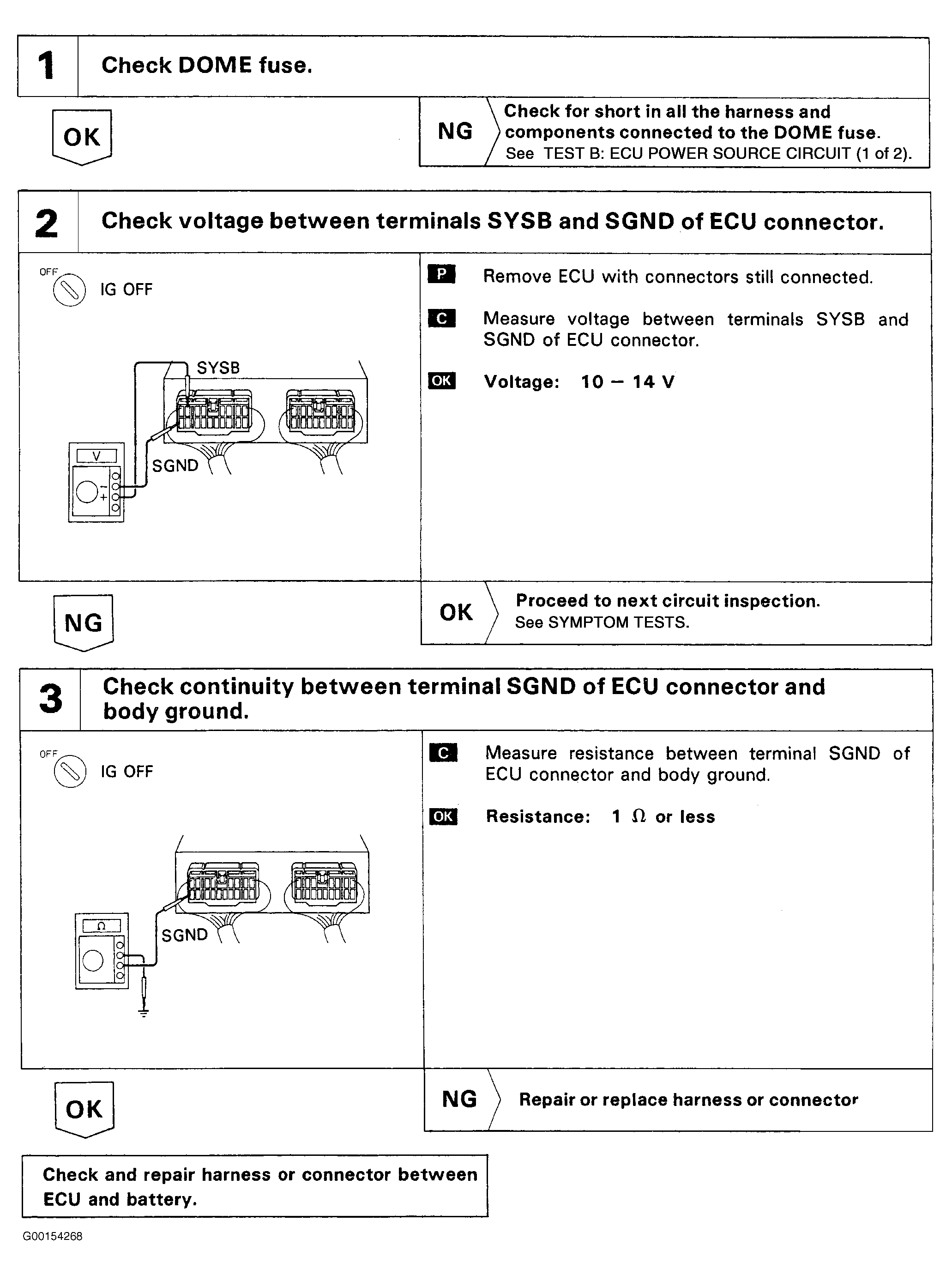

Fig 2: Test B: ECU Power Source Circuit (Driver's Seat - 2 Of 2)
G00154268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
