Code 27 - Sub-Oxygen Sensor CKT (Es300 CALIF., SC300 Federal)

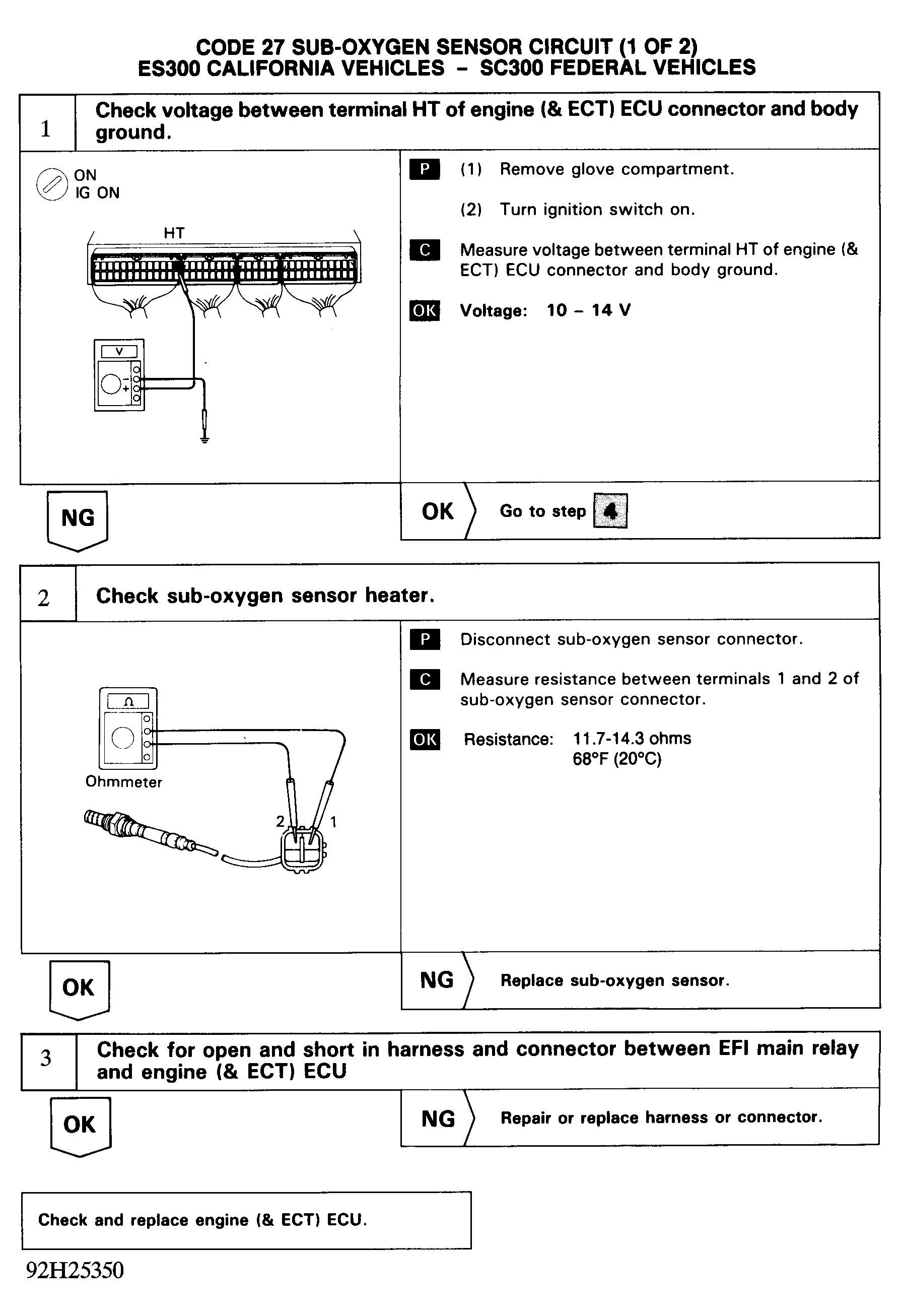

Fig 1: Code 27 Flow Chart (1 of 2) - Sub-O2 Sensor Ckt. (ES300 Calif., SC300 Federal)
G92H25350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

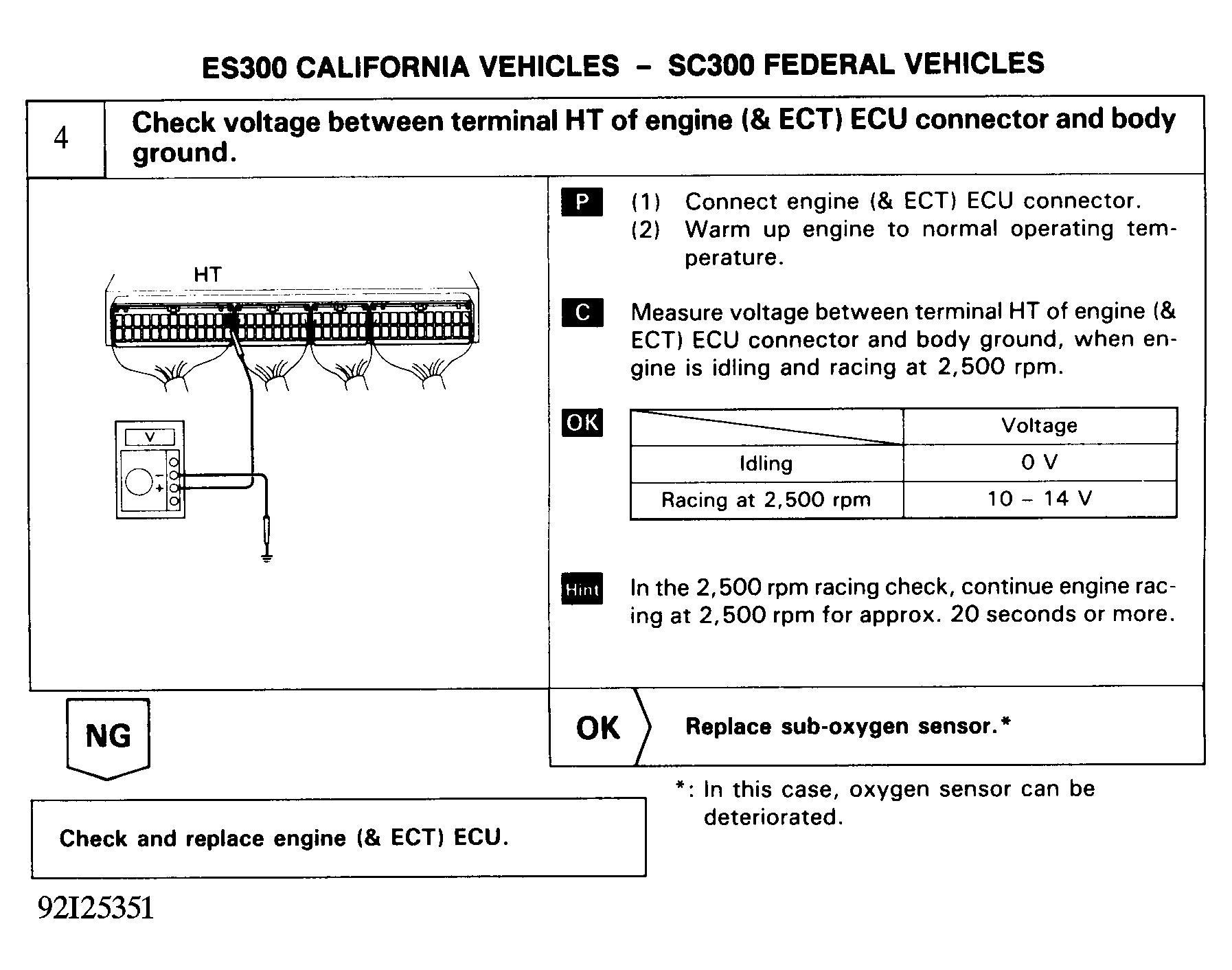

Fig 2: Code 27 Flow Chart (2 of 2) - Sub-O2 Sensor Ckt. (ES300 Calif., SC300 Federal)
G92I25351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
