Code 25 & 26: Air/Fuel Ratio Lean Or Rich

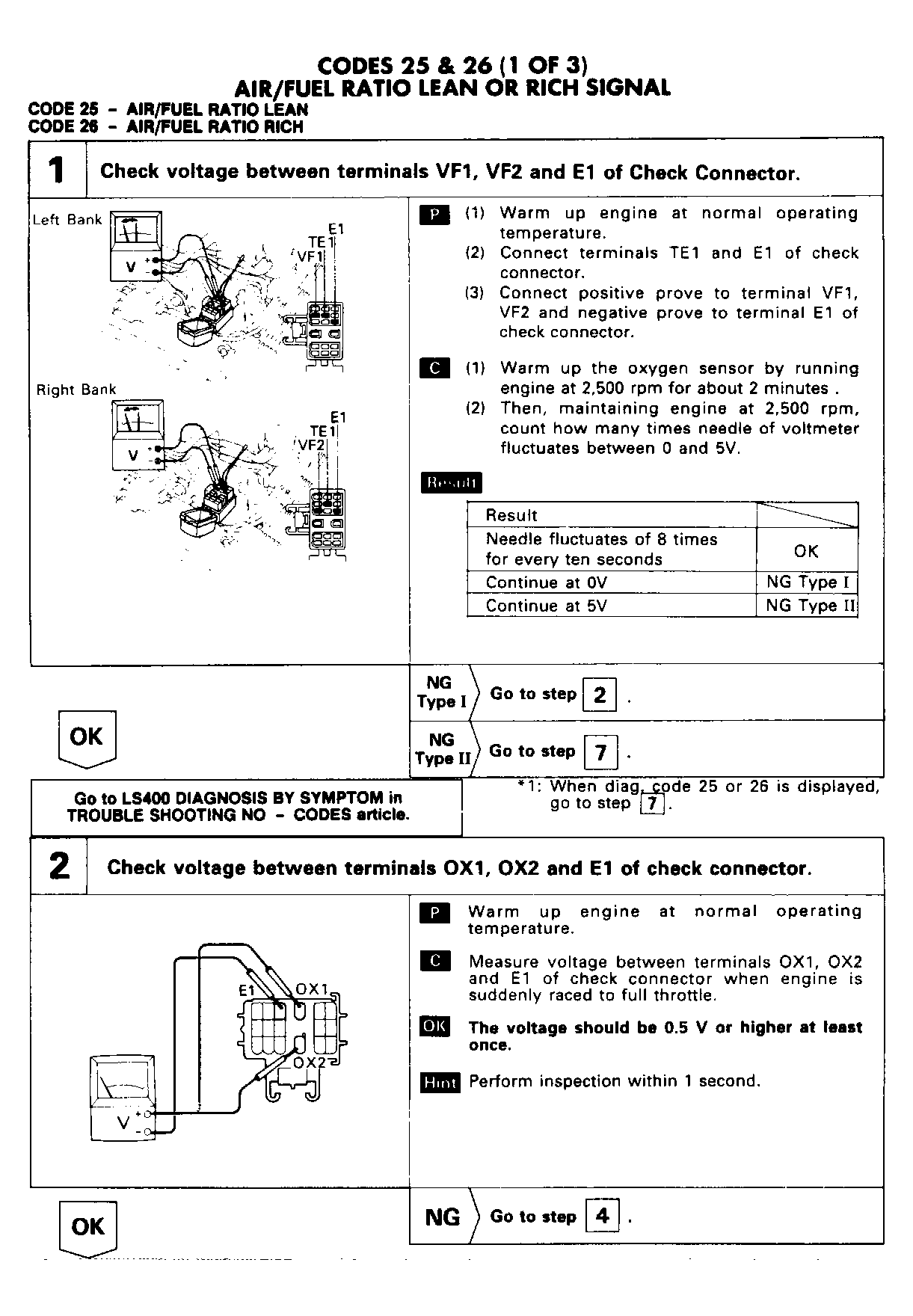

Fig 1: Code 25 & 26: Air/fuel Ratio Step 1 & 2 (1 of 3)
G90A18937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

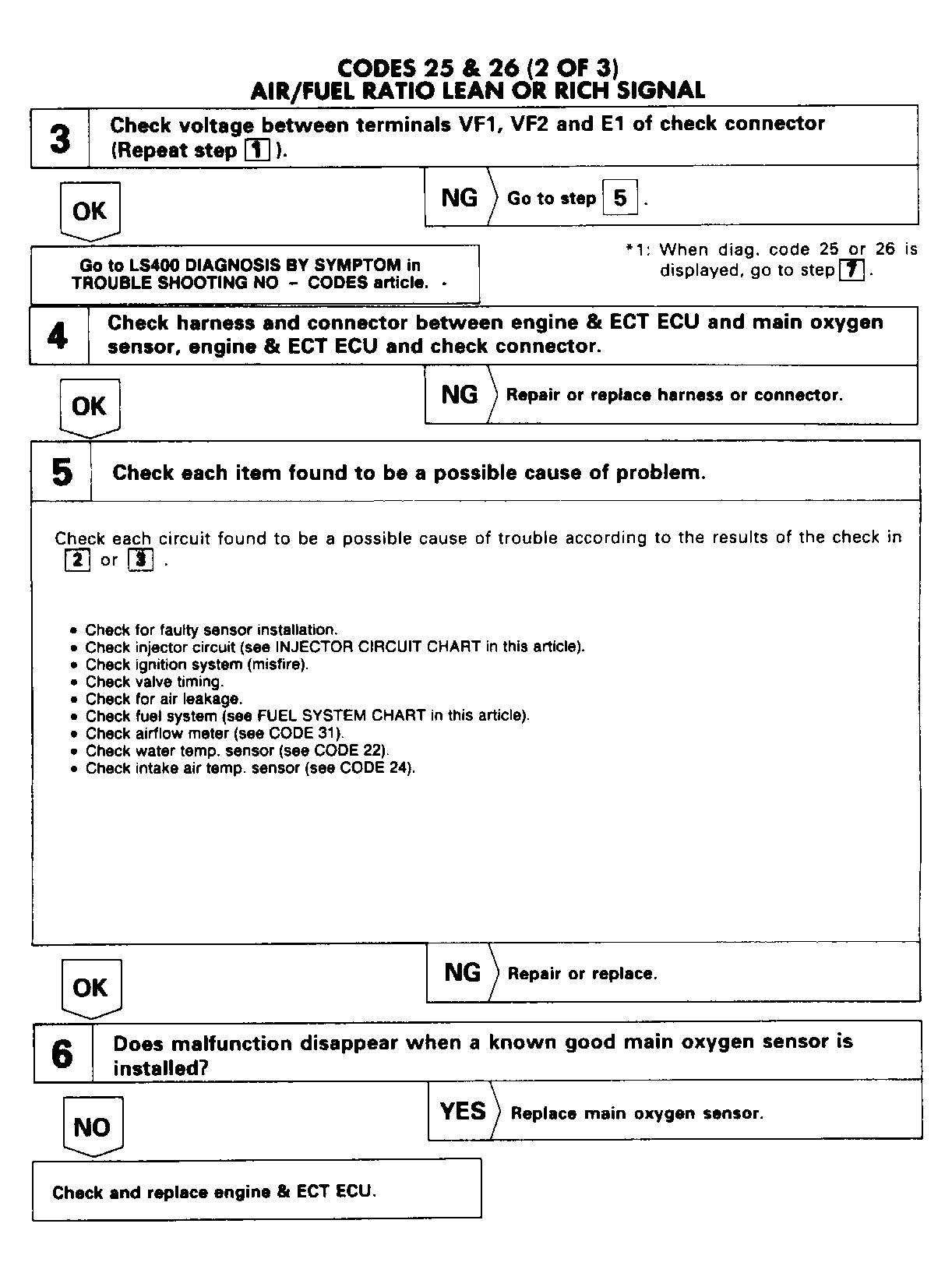

Fig 2: Code 25 & 26: Air/fuel Ratio Step 3-6 (2 of 3)
G90B18938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 25 & 26: Air/fuel Ratio Step 7 & 8 (3 of 3)
G90C18939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
