Driver Assistance Mode - Functionality Changes For 24 Model Year Vehicles (SSM76037)

WARNING: This page is about the Defender 110 S, 2.0L Eng VIN X, which is a different variant/trim than selected.

Publication date: 2023-07-17
Reference number: SSM76037

DRIVER ASSISTANCE MODE - FUNCTIONALITY CHANGES FOR 24 MODEL YEAR VEHICLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM76037, Date of Issue: July 24, 2023

LAND ROVER:	Defender/L663; Discovery/L462; Discovery Sport/L550; New Range Rover/L460; New Range Rover Evoque/L551; New Range Rover Sport/L461
SERVICE CATEGORY:	Non Technical

SERVICE INFORMATION

A number of functionality changes are being implemented to the Driver Assistance Mode systems across 24MY models.

These functionality changes are to meet new General Safety Regulations 2 (GSR II). The legislation has introduced a range of mandatory advanced driver assistance systems to improve road safety. The new safety measures will help to better protect passengers, pedestrians and cyclists.

Introducing GSR II:

GSR II is a safety legislation which came into force in 2022. In 2024 it will require all new registrations to adopt some changes to vehicle safety systems to meet these legislations.

For vehicles IN GSR II or NCAP markets the Driver Assistance Mode setting will default to HIGH mode following every ignition cycle.
For vehicles NOT IN GSR II or NCAP markets the Driver Assistance Mode setting will default to CUSTOM mode following every ignition cycle.

Introducing Driver Assistance Mode:

Brings together four existing safety features into one single, customable function.
Steering wheel button allows the customer to select modes without taking your hands off the wheel.

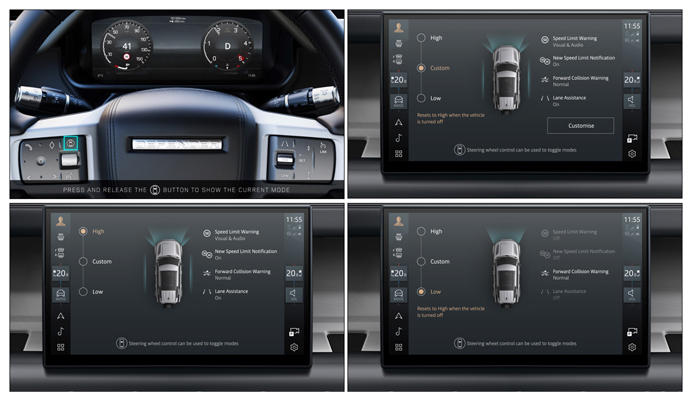

(See 'Image 1' for an illustration of the Steering Wheel button)
3 simple settings on Low, Custom, High.
Settings inputted into custom mode are retained in the vehicle's memory for the customers convenience and ease.
A long press on the steering wheel button will open up the new Driver Assistance mode screen on the PIVI touchscreen, where settings can also be toggled.
- See 'Image 1' for an illustration of the Low, Custom and High PIVI screen options.

If customers raise any queries with the functionality changes concerning driver assistance modes how the systems operate in each mode, please direct the customer to the owner's handbook either online or through the I-Guide to access this information and instructions on how to change the driver assistance mode settings.

Further information can also be found by accessing the attached 'How To Operate' video links below:

Range Rover - https://youtu.be/aYDAU7FwHHA
Discovery - https://youtu.be/rD0hZhXmsd0
Defender - https://youtu.be/uJmhit07vgc
