Engine Serial Numbers

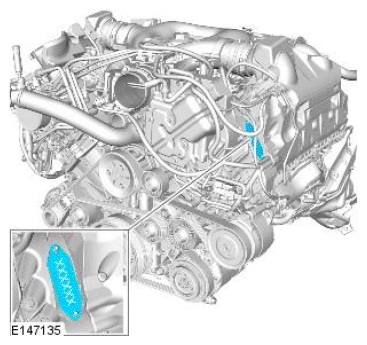

3.0L I6 Diesel Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the charge air cooler.

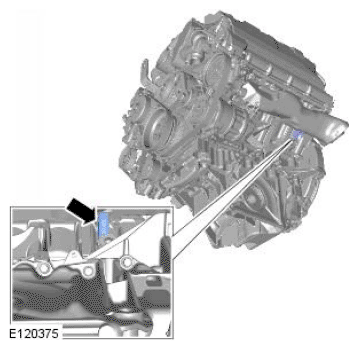

3.0L I6 Petrol Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the charge air cooler.

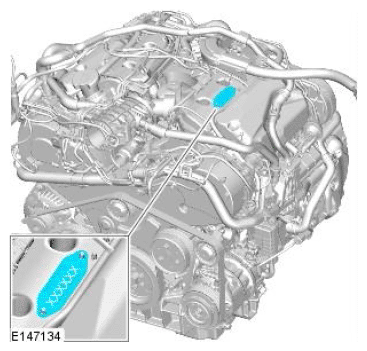

2.0L I4 Diesel Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the cylinder block.

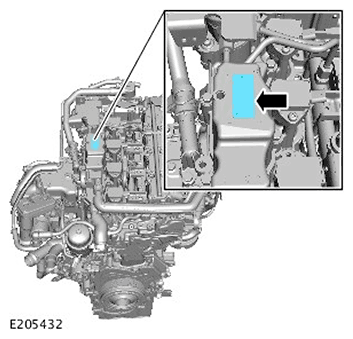

2.0L I4 Petrol and 2.0L I4  -PHEV

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the engine vent oil separator.

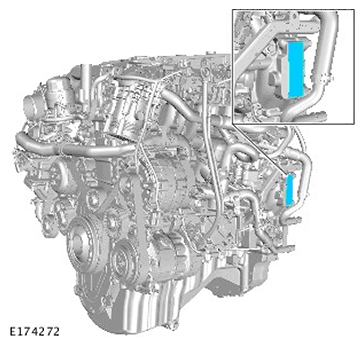

3.0L V6 Diesel Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the valve cover.

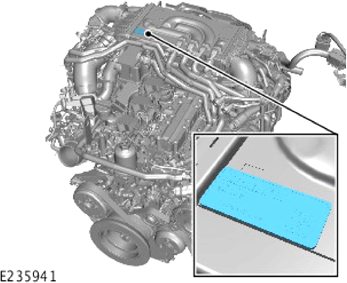

4.4L V8 Diesel Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the cylinder head.

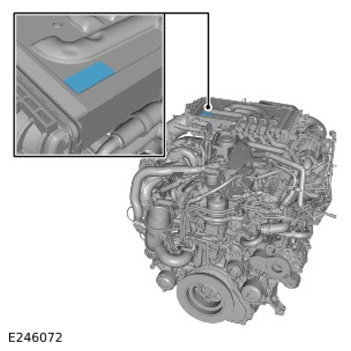

5.0L SC V8 Petrol Engine

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The engine serial number is visible on the cylinder block.
