Image Processing Module 'A'

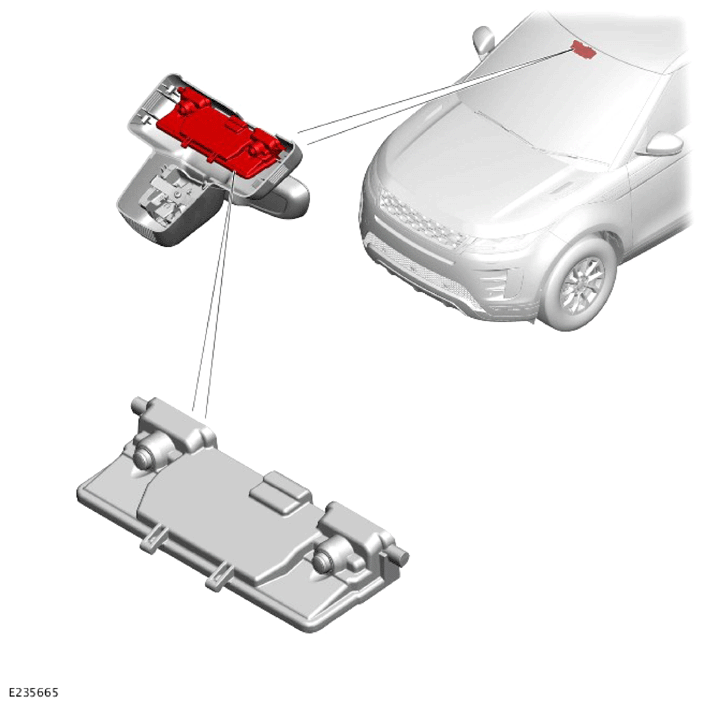

G14453031Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The Image Processing Module 'A' (IPMA) uses the forward facing cameras to scan the road ahead. The information is shared with the Cruise Control Module (CCM) to improve the function of the adaptive cruise control. The CCM sends the information on the private Controller Area Network (CAN) bus.
