Rear Wheel Speed Sensor: Installation

  1. CAUTION:
    • Make sure that the component is clean, free of foreign material and lubricant.
    • Make sure that the sensor tip is clean and free of foreign material.

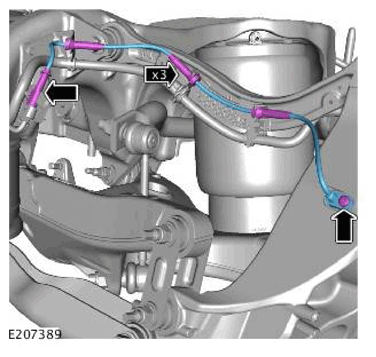

    G11996219

    Install the wheel speed sensor.

    Torque:  10 Nm

  2. Install the wheel arch liner.

    Refer to: REAR FENDER SPLASH SHIELD .
