Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the battery.

    refer to: Battery

  2. CAUTION: Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

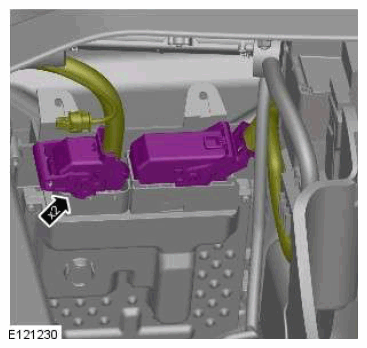

    G11608509

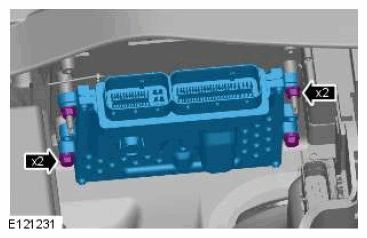

  3. G11608510

    Torque Specification: 7 Nm
