Removal And Installation: Installation

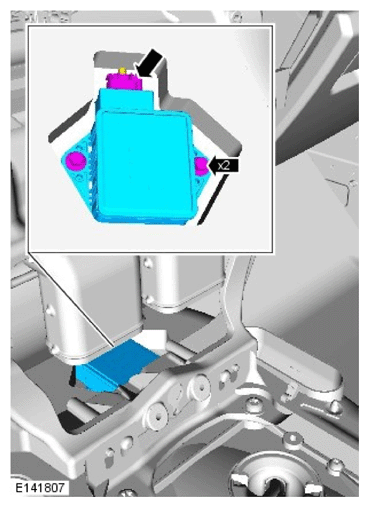

  1. G11597378

    Install the yaw rate sensor

    • Install the 2 bolts and tighten to 7 Nm (5 lb.ft).

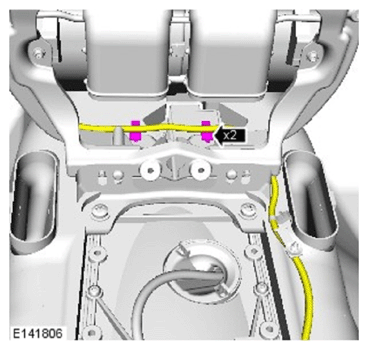

  2. G11597376

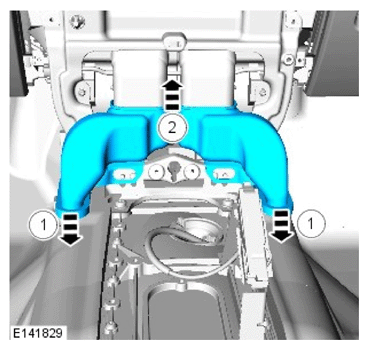

  3. G11597380
  4. Install the instrument panel center reinforcement.

    For additional information, refer to: Instrument Panel Center Reinforcement .

  5. Install the floor console.

    For additional information, refer to: Floor Console .

  6. Connect the battery ground cable.

    For additional information, refer to: BATTERY DISCONNECT/CONNECT .
