Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

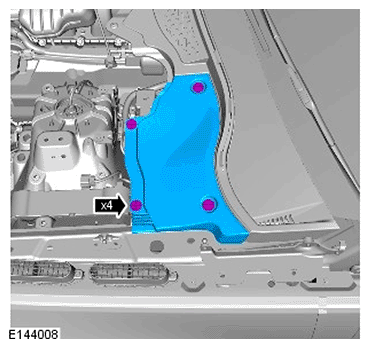

  2. G11693696
  3. CAUTION: Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

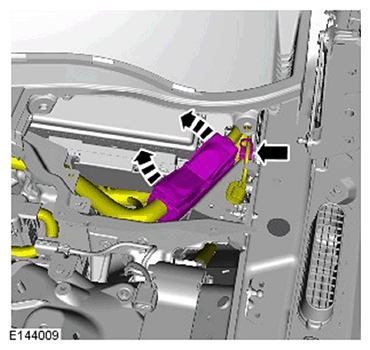

    G11712931

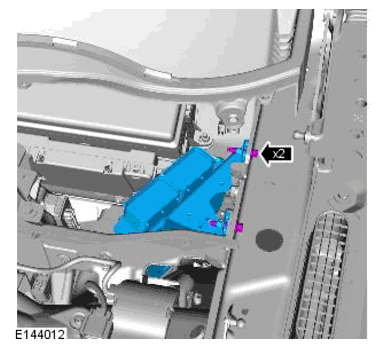

  4. G11699431

    Torque Specification: 9 Nm

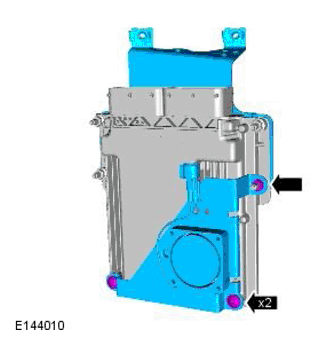

  5. G11699432

    Torque Specification: 9 Nm

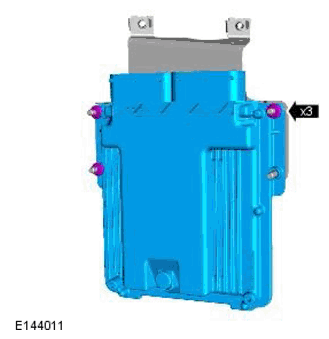

  6. G11699433

    Torque Specification: 9 Nm
