Yaw Rate Sensor: Removal

  1. Disconnect the battery ground cable. Refer to Specifications article.
  2. Remove the floor console. Refer to Floor Console article.
  3. Remove the instrument panel center reinforcement. Refer to Instrument Panel Center Reinforcement article.
  4. See figure.
    GJ0019414
  5. See figure.
    GJ0019415

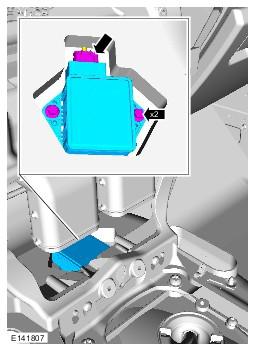

  6. Remove the yaw rate sensor.
    GJ0019416
