Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front spoiler.

    For additional information, refer to: Front Bumper Lower Cover .

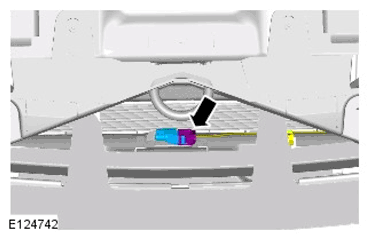

  2. G11600831

    Remove the ambient air temperature sensor.

    • Disconnect the electrical connector.
    • Release the clip.
