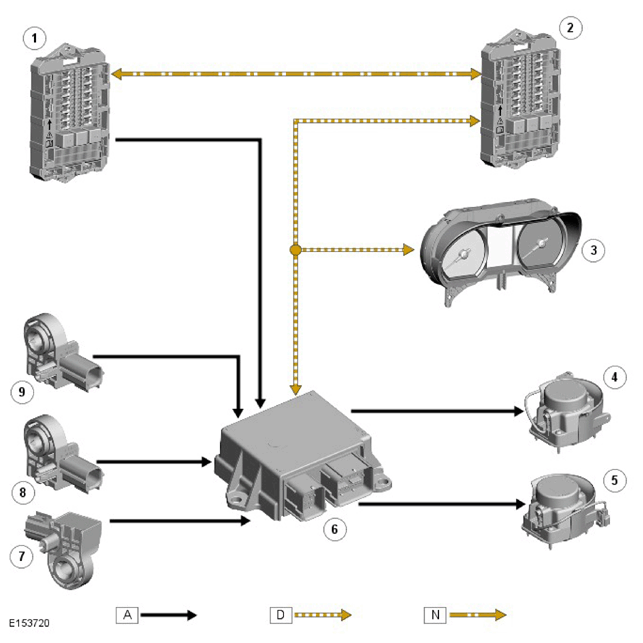

Control Diagram
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D
= High speed CAN (controller area network) bus; N = Medium speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | RJB (rear junction box) |
| 2 | CJB (central junction box) |
| 3 | Instrument cluster |
| 4 | LH (left-hand) hood actuator |
| 5 | RH (right-hand) hood actuator |
| 6 | Restraints control module |
| 7 | Accelerometer |
| 8 | Accelerometer |
| 9 | Accelerometer |
