Component Location - Most
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

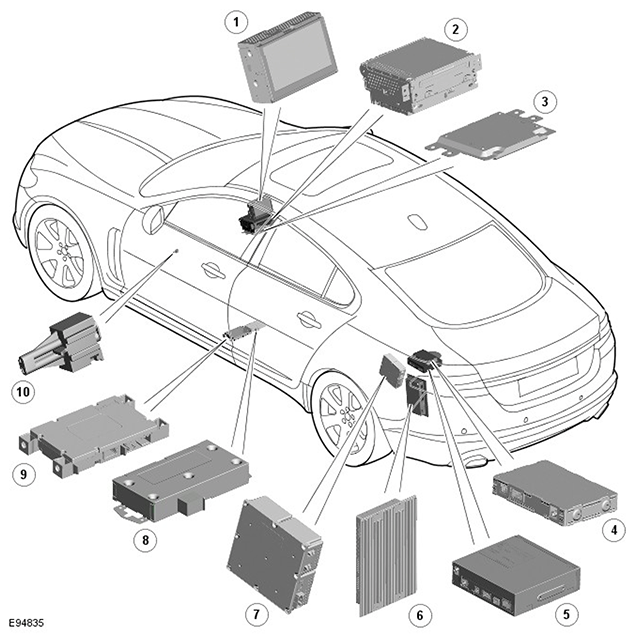

| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
LHD vehicle shown
|
|
| 1 | Touch Screen Display (TSD) |
| 2 | Integrated audio module |
| 3 | Entertainment system control module |
| 4 | Digital Audio Broadcast (DAB)/Satellite Digital Audio Radio System (SDARS) |
| 5 | Multimedia module |
| 6 | Audio system amplifier |
| 7 | Television (TV) tuner |
| 8 | Portable audio interface |
| 9 | Blue tooth phone module |
| 10 | Software download socket |
