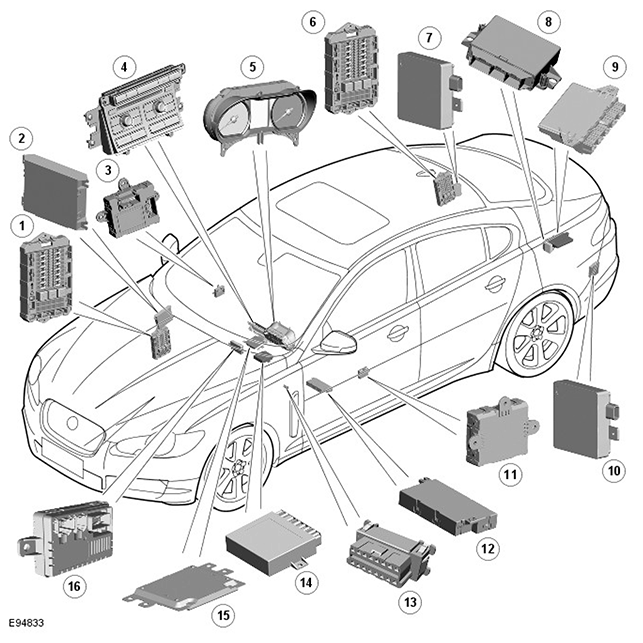

Component Location - Medium Speed Can Bus
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
LHD vehicle shown
|
|
| 1 | CJB |
| 2 | ATC module |
| 3 | Passenger door module |
| 4 | Audio system control panel |
| 5 | Instrument cluster |
| 6 | RJB |
| 7 | RH blind spot monitoring module |
| 8 | Parking aid module |
| 9 | Keyless vehicle module |
| 10 | LH blind spot monitoring module |
| 11 | Driver's door module |
| 12 | Driver's seat module |
| 13 | Diagnostic socket |
| 14 | Tire Pressure Monitoring System (TPMS) control module |
| 15 | Entertainment system control module |
| 16 | Climate seat module |
