Removal And Installation: Removal

  1. Raise and support the vehicle.
  2. Remove the front wheel and tire.

    Refer to: Wheel and Tire .

  3. Release the fender splash shield.

    Refer to: Fender Splash Shield .

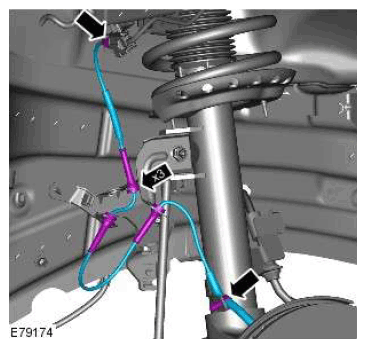

  4. G11589555

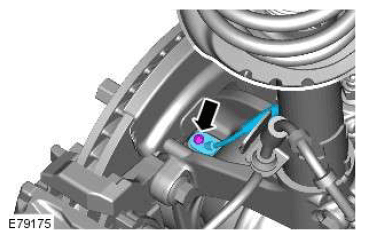

  5. G11589556

    Torque Specification: 5 Nm
