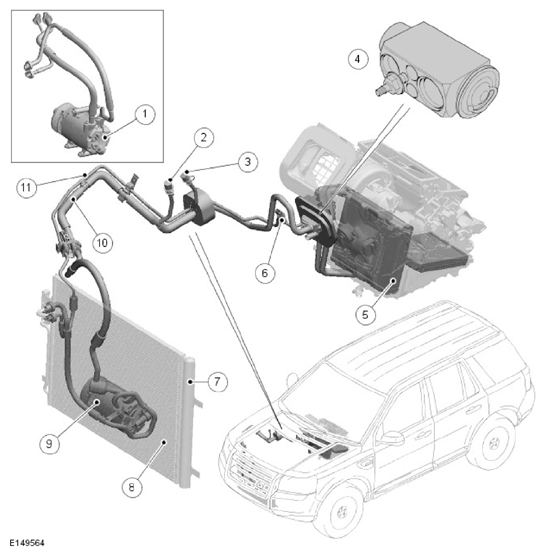

Component Location
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | A/C compressor (TD4 2.2L DIESEL) |
| 2 | Low Pressure (LP) servicing connection |
| 3 | HP servicing connection |
| 4 | Thermostatic expansion Valve (TXV) |
| 5 | Evaporator |
| 6 | Refrigerant pressure sensor |
| 7 | Receiver/Drier |
| 8 | Condenser |
| 9 | Air Conditioning (A/C) compressor (GTDi 2.0L PETROL) |
| 10 | LP line |
| 11 | High Pressure (HP) line |
