Differential Case: Removal

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the engine removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector .

  3. Refer to: DIFFERENTIAL DRAINING AND FILLING .

  4. Refer to: Front Driveshaft - AWD Removal And Installation .
  5. Refer to: Front Subframe - AWD .

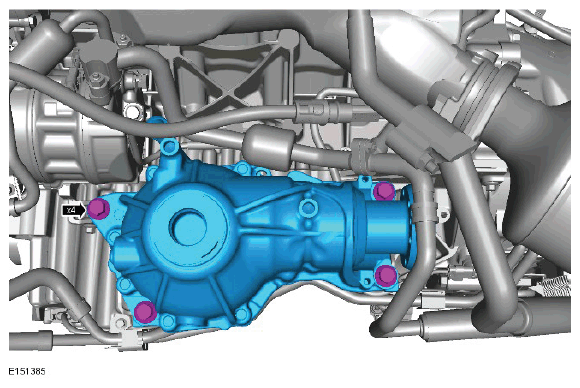

  6. G11420803
  7. CAUTION: Do not carry out this step if a new differential is to be installed.

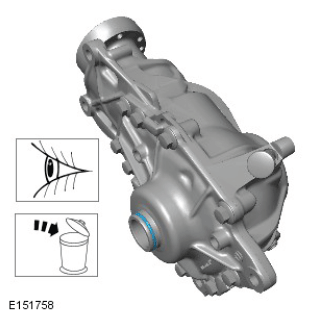

    G11420804

    Remove and discard the O-ring seal.
