Humidity And Temperature Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

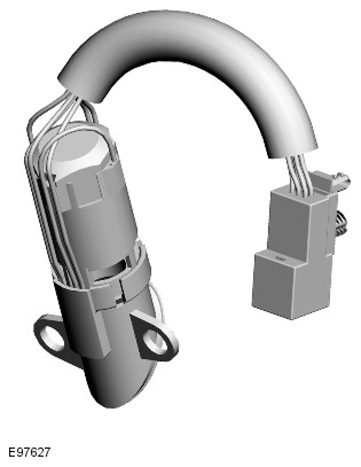

The humidity and temperature sensor is installed above the glovebox in the instrument panel. The sensor incorporates:

A NTC thermistor to measure temperature.
A capacitive sensor element to measure humidity.
A motor driven fan to draw air through the sensor and over the sensing elements.

The humidity sensor element is built out of a film capacitor on different substrates. The dielectric is a polymer which absorbs or releases water proportional to the relative humidity of the air being drawn through the sensor, and thus changes the capacitance of the capacitor. For protection, the sensor element is contained in a nylon mesh cover.

Humidity within the passenger compartment is controlled by raising and lowering the evaporator temperature. An increase in evaporator temperature increases the moisture content of the air entering the passenger compartment. Lowering the evaporator temperature reduces the moisture content of the air entering the passenger compartment.
