General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Do not use any aggressive cleaning fluid or a wire brush to clean the piston.

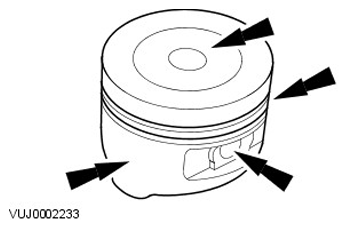

    G11284736

    Carry out a visual inspection.

    Clean the piston skirt, pin bush, ring grooves and crown and check for wear or cracks.

    If there are signs of wear on the piston skirt, check whether the connecting rod is twisted or bent.
